Rethink Value

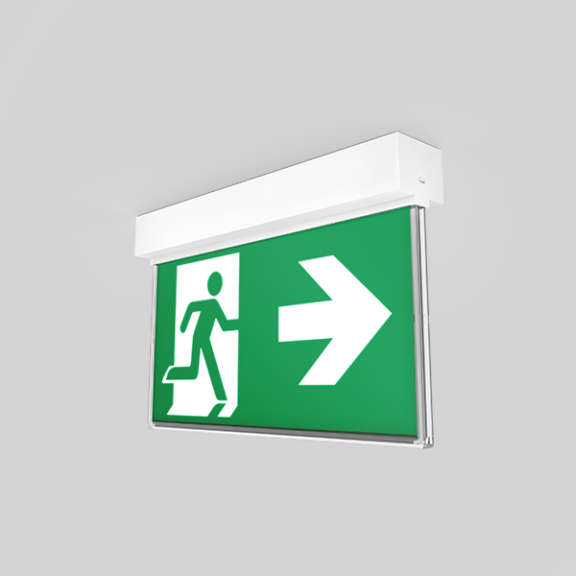

New Razor Core

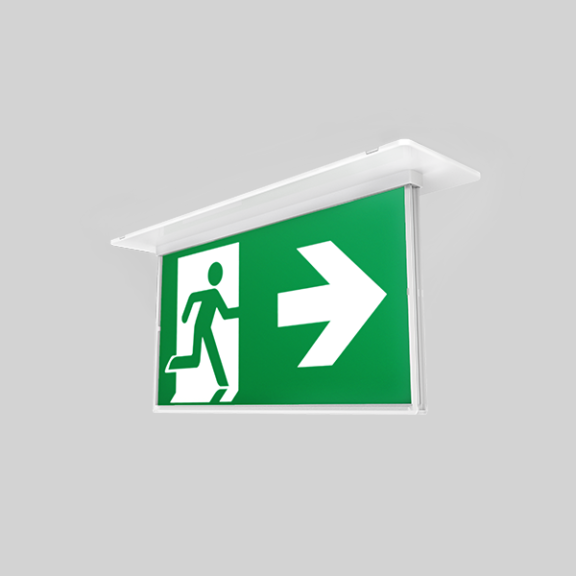

Ektor’s brings the latest addition to our budget-friendly Core range of emergency lighting products – the Razor.
Built with the same reliability and product excellence Ektor is known for, these modern, slimline exits are perfect for offices, entries, walkways and stairwells. Anywhere design and style are paramount.
Available in black or white, these easy to install exits come with a range of features.
Resources
Check out more information and downloads related to the Razor Core

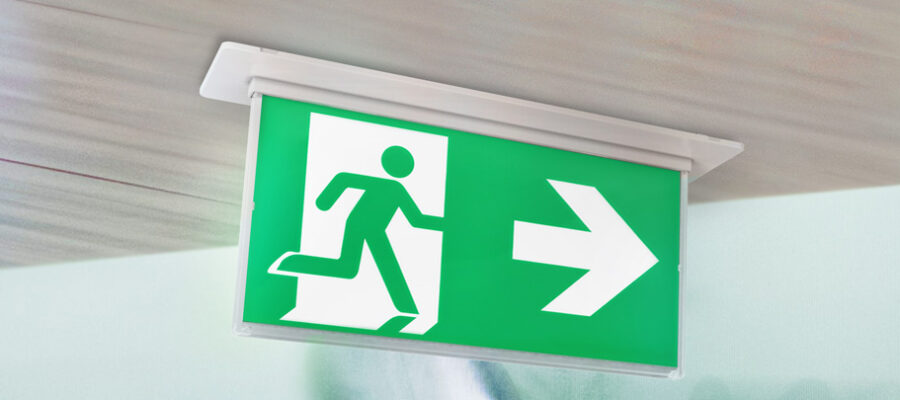

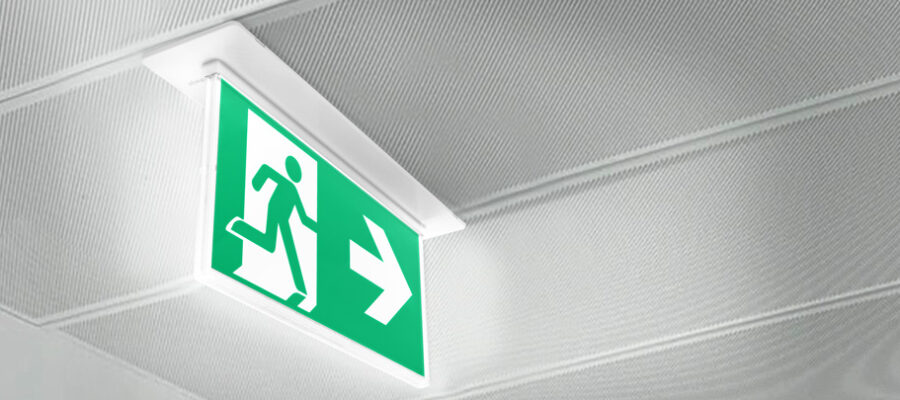

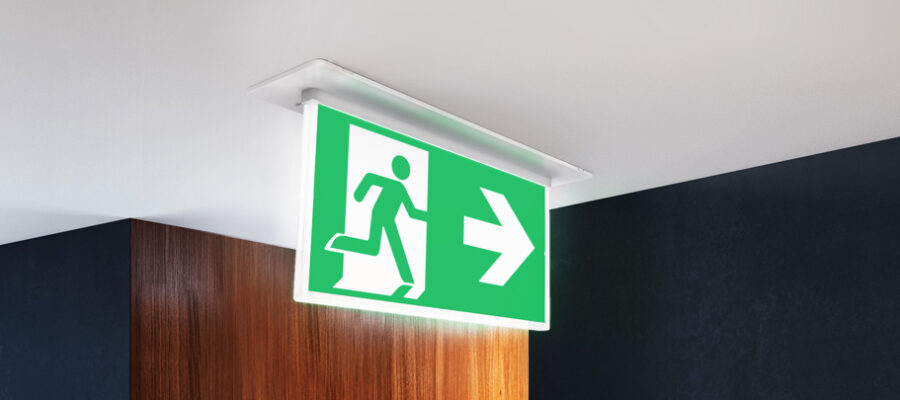

Razor Core Recessed
Like the Razor range?
Curious about Wireless?
Specifications
An overview of the specs, visit the Specification page for more.
Product range |
|
| Order code | Description |
|---|---|
| EV-RAZOR-CORE-24M | Slimblade Core recessed Exit light 24M |
| EV-RAZOR-SM-CORE-24M-B | Slimblade Core recessed Exit light 24M – Black |
GENERAL FEATURES
- Single and double sided decals

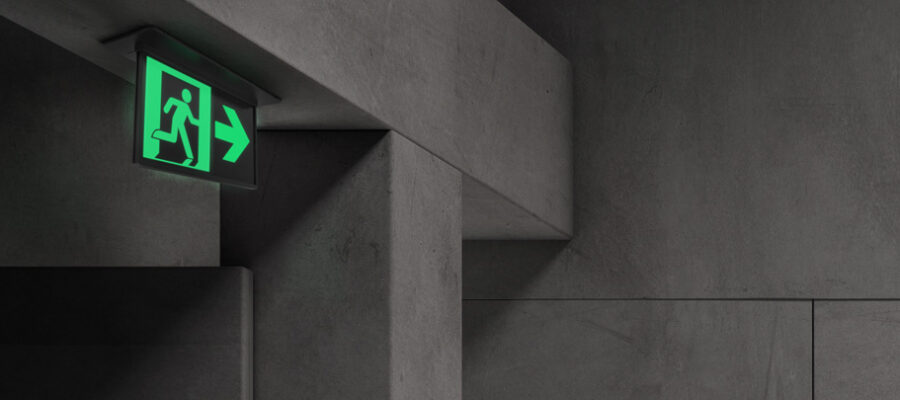

- Available in low illumination area black model
- Replaceable easy fit, quick-release decals
BUILT TO LAST
- LED light source
- Long life electronics
- 5 Years Design Life – 100,000 hours at max. ambient
- High Quality Lithium battery (LiFePO4) and smart charger
SUITABLE INSTALLATION TYPES (OUT OF THE BOX)
- Standalone (SPU)
Specifications |
|
| General | |
|---|---|
| Supply voltage | 230V~ 50Hz |
| Ambient temperature | 0 – 55°C |
| Class | 2 |
| Wiring | Flex and Plug 1.2m |
| IP rating | IP20 |
| Mounting type | Recessed |
| Emergency | |
|---|---|
| Emergency lamp power | 1 W |
| Rated duration | 90/ 120 min |
| Classification | C0:E6.3, C90:E20 |
| Construction | |
|---|---|
| Viewing distance | 24 M |
| Decal size | 300 x 150 mm |
| Cut-out | 63 x 335 mm |
| Body | PC (UV Stabilised) |
| Diffuser | PMMA |
| Gear tray | PC |
| Compliance | |
|---|---|
| Standards |
|
