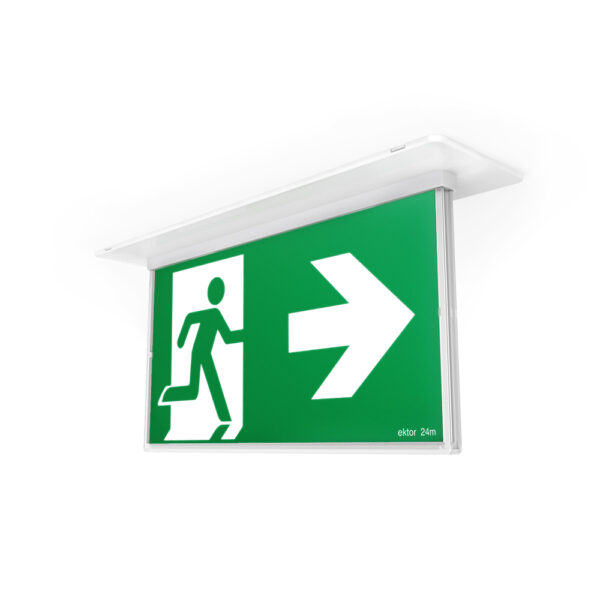

Razor Advanced Recessed Emergency Exit, 24m

  • Single and double-sided decals

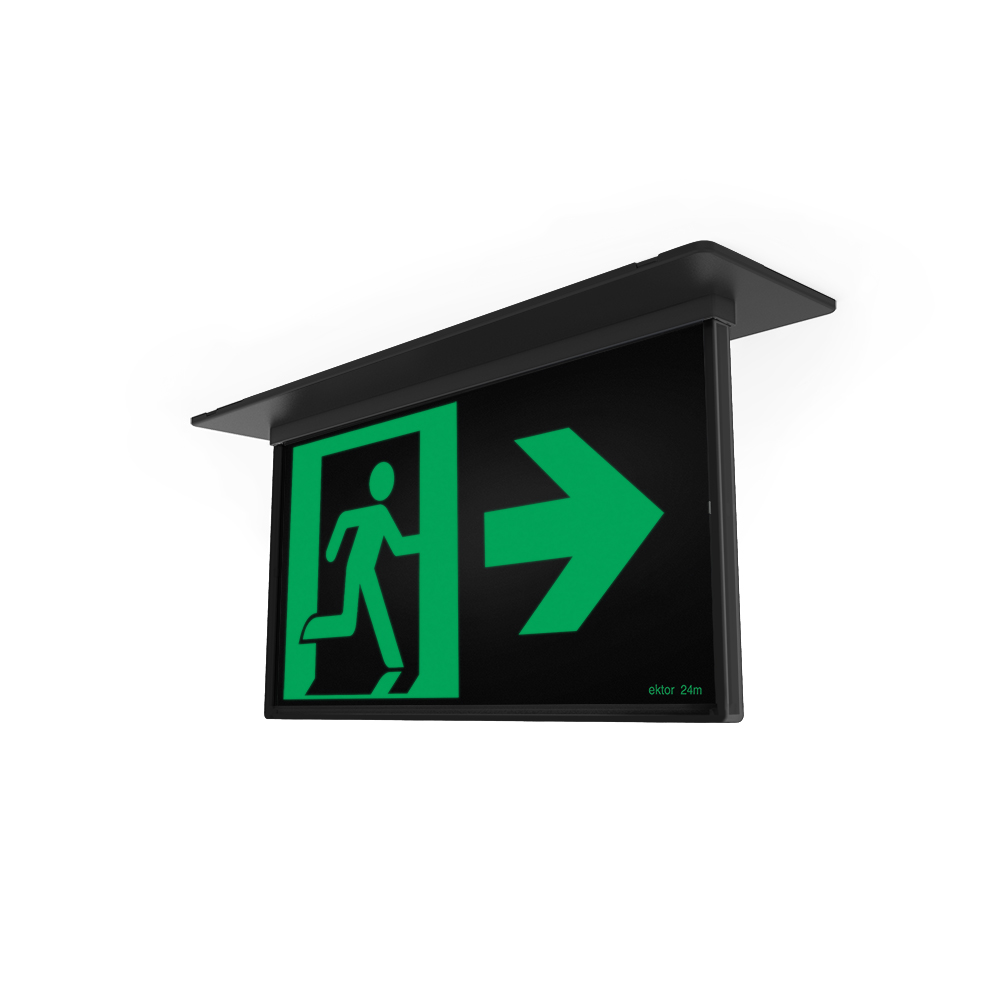

  • Available in low illumination area black model
  • Chain and rod mounting with Surface and Rod Mount Kit
  • 8 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Single Point Unit (SPU)
  • Fully compliant (AS/NZS 2293)
  • DALI monitored emergency control
  • Emergency monitoring with capabilities via cloud systems such as Zencontrol
SKU: Razor Adv Category: Tag:

Mechanical

Body MaterialPolycarbonate
Diffuser MaterialPMMA
Fitting Colour
EV-RAZOR-ADV-24M-B-DA-CMS
EV-RAZOR-ADV-24M-B-DA-JB
EV-RAZOR-ADV-24M-B-DA-WBC
Black
EV-RAZOR-ADV-24M-DA-CMS
EV-RAZOR-ADV-24M-DA-JB
EV-RAZOR-ADV-24M-DA-WBC
White
Installation TypeRecessed
IP RatingIP20

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage
EV-RAZOR-ADV-24M-B-DA-CMS
EV-RAZOR-ADV-24M-B-DA-JB
EV-RAZOR-ADV-24M-B-DA-WBC
2 W
EV-RAZOR-ADV-24M-DA-CMS
EV-RAZOR-ADV-24M-DA-JB
EV-RAZOR-ADV-24M-DA-WBC
2.6 W
Standby Power
EV-RAZOR-ADV-24M-B-DA-CMS
EV-RAZOR-ADV-24M-B-DA-JB
EV-RAZOR-ADV-24M-B-DA-WBC
1.7 W
EV-RAZOR-ADV-24M-DA-CMS
EV-RAZOR-ADV-24M-DA-JB
EV-RAZOR-ADV-24M-DA-WBC
2.3 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C

Driver

Driver IncludedYes
Integrated DriverYes
Driver TypeDALI DT1 Emergency
Flex & Plug or Lead Length
EV-RAZOR-ADV-24M-B-DA-JB
EV-RAZOR-ADV-24M-DA-JB
650 mm
EV-RAZOR-ADV-24M-B-DA-CMS
EV-RAZOR-ADV-24M-B-DA-WBC
EV-RAZOR-ADV-24M-DA-CMS
EV-RAZOR-ADV-24M-DA-WBC
2400 mm
Wiring Type
EV-RAZOR-ADV-24M-B-DA-CMS
EV-RAZOR-ADV-24M-DA-CMS
CMS Plug (5 pin)
EV-RAZOR-ADV-24M-B-DA-JB
EV-RAZOR-ADV-24M-DA-JB
Re-wireable terminal block (5 pin)
EV-RAZOR-ADV-24M-B-DA-WBC
EV-RAZOR-ADV-24M-DA-WBC
WBC Plug (5 pin)
WBC ~ Supplied with a Wire by click- 5 pin plug, model number LA1025/5
CMS ~ Supplied with a CMS Electracom- 5 pin plug to suit QF series wiring, model number QFP3AT

Emergency (EM suffix)

Replacement Battery Code13972
Emergency ControlDALI Monitored (DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
Decal Size300 x 150 mm
Emergency Duration90 mins
Emergency Light Source Life
EV-RAZOR-ADV-24M-DA-CMS
EV-RAZOR-ADV-24M-DA-JB
EV-RAZOR-ADV-24M-DA-WBC
26Y/05M
EV-RAZOR-ADV-24M-B-DA-CMS
EV-RAZOR-ADV-24M-B-DA-JB
EV-RAZOR-ADV-24M-B-DA-WBC
34Y/04M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.
Emergency ModeMaintained
Emergency Output Power
EV-RAZOR-ADV-24M-B-DA-CMS
EV-RAZOR-ADV-24M-B-DA-JB
EV-RAZOR-ADV-24M-B-DA-WBC
350 mW
EV-RAZOR-ADV-24M-DA-CMS
EV-RAZOR-ADV-24M-DA-JB
EV-RAZOR-ADV-24M-DA-WBC
650 mW
Viewing Distance24 m
Emergency ClassificationC0:E6.3, C90:E10

Compliance

Product Design Life8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty6 RTB (Total 6 Years)
Cutout305 x 65 mm
Product Height265 mm
Product Length365 mm
Product Width95 mm
EV/RAZOR/ADV/24M
Order codeItem codeDescriptionAvailability
12267EV-RAZOR-ADV-24M-B-DA-CMSRazor Advanced Recessed Exit Light - 24M - DALI - Black - W/CMS
12269EV-RAZOR-ADV-24M-B-DA-JBRazor Advanced Recessed Exit Light - 24M - DALI - Black - W/Terminal Block
12265EV-RAZOR-ADV-24M-B-DA-WBCRazor Advanced Recessed Exit Light - 24M - DALI - Black - W/Wire By Click
12266EV-RAZOR-ADV-24M-DA-CMSRazor Advanced Recessed Exit Light - 24M - DALI - W/CMS
12268EV-RAZOR-ADV-24M-DA-JBRazor Advanced Recessed Exit Light - 24M - DALI - W/Terminal Block
12264EV-RAZOR-ADV-24M-DA-WBCRazor Advanced Recessed Exit Light - 24M - DALI - W/Wire By Click

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
00705EV-CMS-2.4M-5PINCMS 2.4M 5 Pin Plug Set
11790EV-CMS-5CORE-DALI-F&PCMS 2.5M 5 core DALI ext earth flex and plug
02991EV-RAZOR-24M-DIFFRazor 24M- replacement diffuser blade to suit 02686- including RM Decal pack
02987EV-RAZOR-24M-DPRazor 24M decal pack to suit SKU# 02686 & BOXIT-SLIM SKU #15053
02988EV-RAZOR-24M-DP-BRazor 24m decal pack - Black to suit 02687
02981EV-RAZOR-LEDFIRE-SM-KITSurface Mounted Kit to suit 2684- 2686- 2660- 2663- 2681- 2661 & 2677
02982EV-RAZOR-LEDFIRE-SM-KIT-BBlack Surface Mounted Kit to suit 2685- 2687- 2664 & 2665.
