The Troffer Range
Class Leading Troffers
Curve
Deluxe
Velocity
Horizon
Nighthawk
Australian-made
Ektor troffers are made to order in our local Evolt Manufacturing facility
Energy-efficient
Ektor troffers provide energy-efficient illumination, saving on operating costs
Customise to suit
Numerous options for tailoring to suit your application and grid system
Low-glare illumination
Ektor troffers provide even illumination and excellent optical comfort

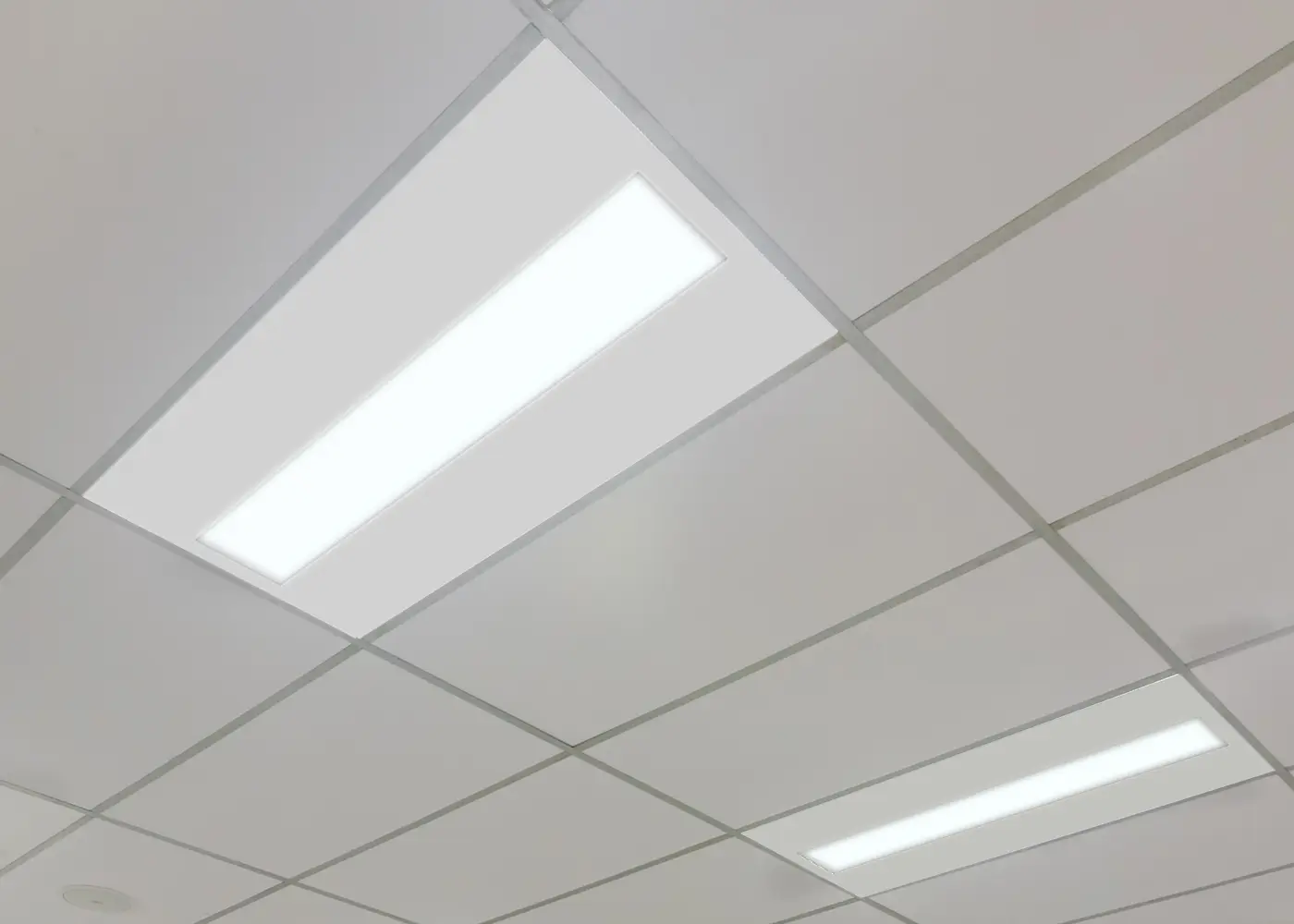

Ektor and Ceiling Systems: A Perfect Match
Ceiling systems, particularly in high-end commercial and residential spaces, are essential for both aesthetics and functionality. They affect everything from acoustics and lighting to air ventilation, creating the overall atmosphere of any room.

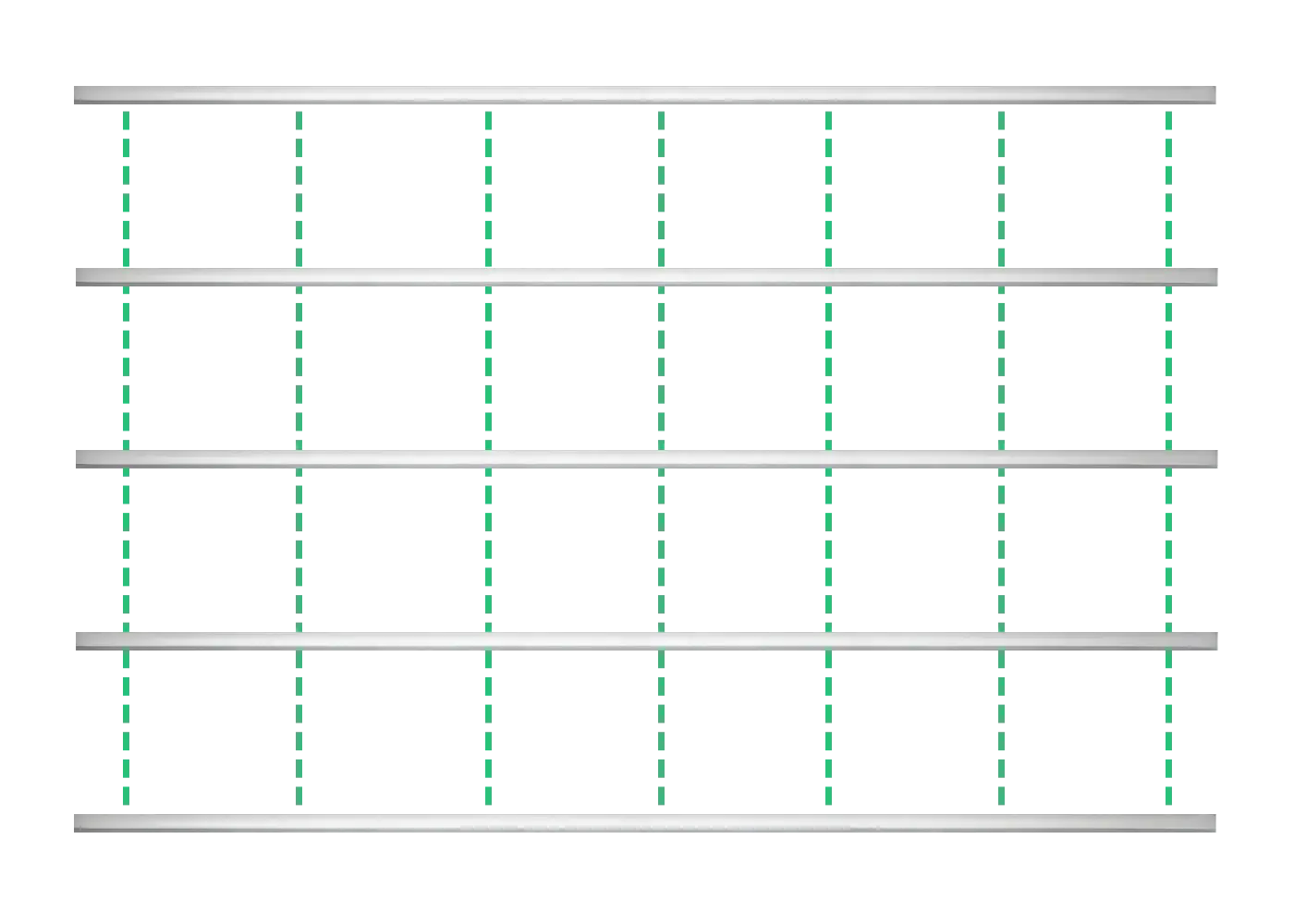

Compatibility with One-Way Ceiling Designs
One-way ceiling designs, known for their elegance, are often found in luxury settings. They have a clean, streamlined look, with tiles resting solely on the main rail ends and no cross tees. Standard sizes like 1200 x 1200, 1350 x 1350, and 1500 x 1500 fit seamlessly with Ektor’s fittings, designed for main rail heights of 45mm and 50mm.

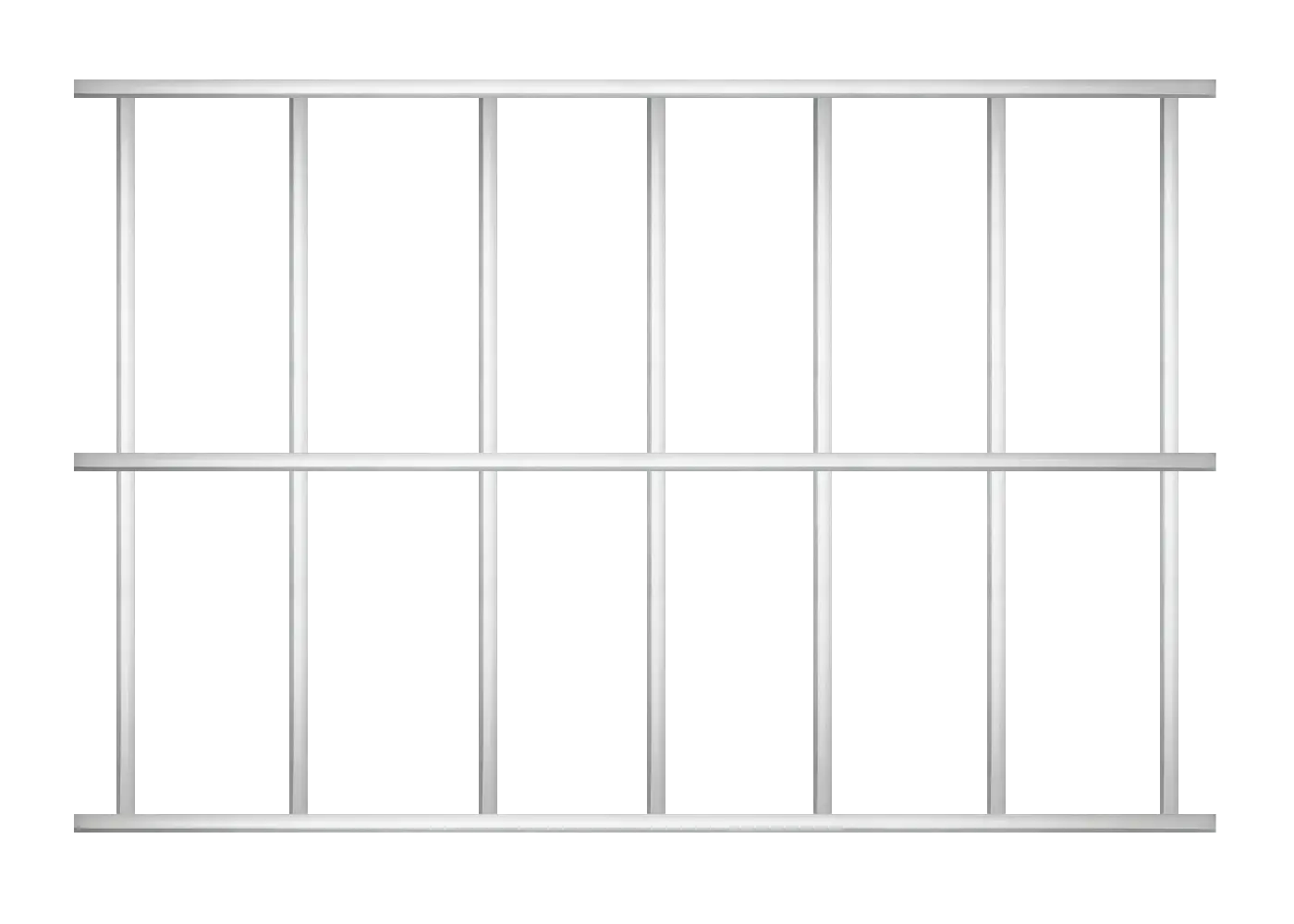

Two-Way Ceiling Designs and Ektor’s Expertise
Two-way ceiling designs are the classic choice. They feature a Main Tee at both ends and a pair of cross tees connecting these Main Tees. This versatile design works with dimensions like 300 x 600, 600 x 600, 300 x 1200, and 600 x 1200. Ektor's fittings ensure a perfect fit with the common main rail heights of 38mm and 45mm in two-way ceiling designs.
Safety Essentials: Ektor’s Ceiling Hooks
Safety is crucial in ceiling fittings. To keep T-bar lighting firmly anchored to the Main Tee, ceiling manufacturers recommend safety hooks. Even lightweight fittings benefit from these hooks due to potential grid shifts. Ektor equips its fittings with dual safety hooks for standard ceiling heights and offers custom solutions for unique needs.
Reinforced Support: Seismic and Heavy-Duty Restraints
In regions with seismic activity or where luminaires exceed ceiling weight limits, Ektor’s fittings provide additional security. Our fittings include four restraint points, ensuring even weight distribution and reliable support.
Enhancing Ventilation: Ektor’s Take on Air Return
To meet international standards, air return luminaires feature side slots for smooth airflow within the ceiling recess, often integrating with the building’s HVAC system. Ektor’s luminaires include sleek black baffles to conceal ceiling imperfections and protect against unwanted air intrusions.

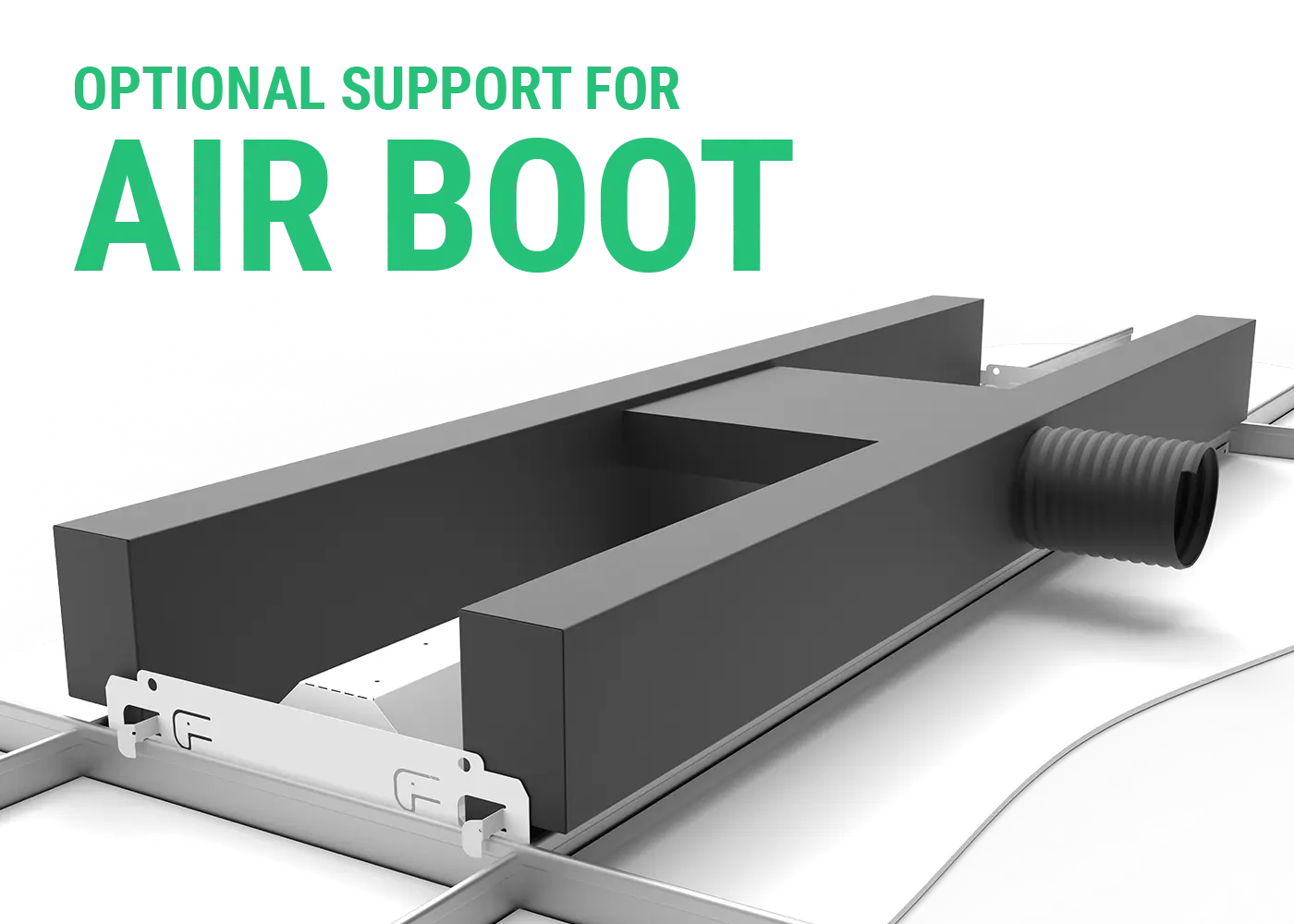

Maximising Efficient Air Circulation with Ektor’s Air Boots
Ektor's air-handling luminaires combine style and efficiency. Designed with specific slots, they facilitate air conditioning flow, eliminating the need for separate AC grills. Ektor also offers optional air boot support, including mounting facets and guides for compatibility with various AC models.
Customisable Models
Driver Types
| DRIVERS | Fixed Output | DALI-2 | EM | PIR Sensor | EM + PIR Sensor |
|---|---|---|---|---|---|
| Standard | |||||
| zencontrol Smart | |||||
| zencontrol Wireless Smart |
See below for more information on customisations (sizes, variants, colours). Further customisations are available on request.
Designed and manufactured
in Australia
Made to order
Made to order at our local Evolt Manufacturing facility, Ektor troffers are of the highest quality, with excellent energy-efficiency and glare ratings.
See our Lynk wireless projects
Check out more information and downloads related to the range
Customised options available
Customised options available
Customised options available
Customised options available
Troffer Gallery
Be inspired by the Troffer range
