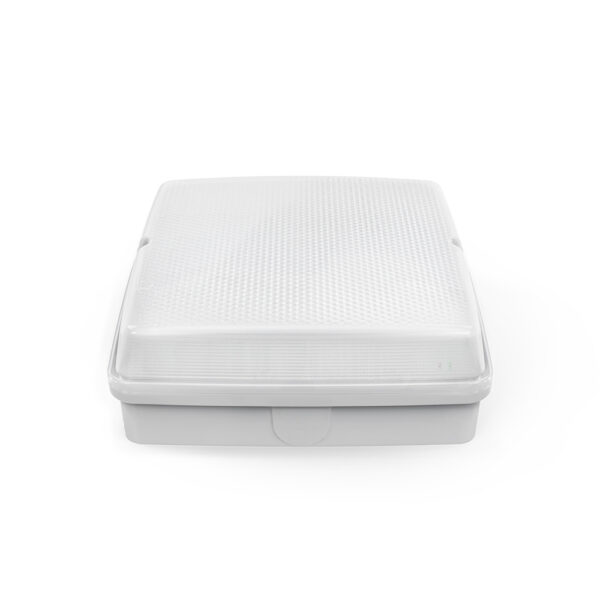

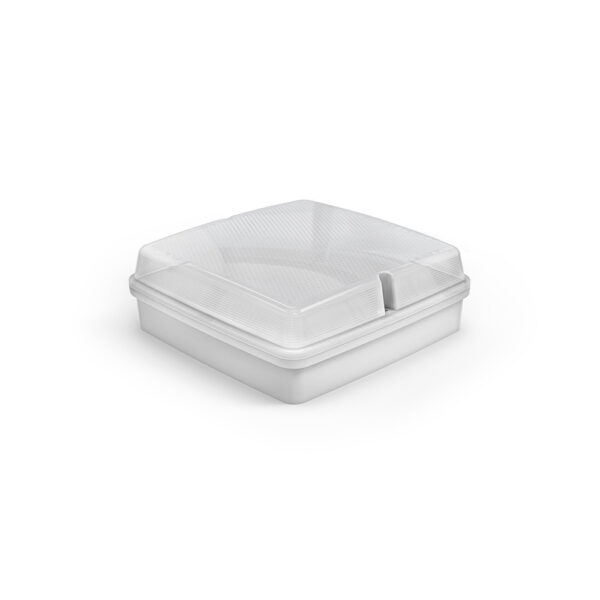

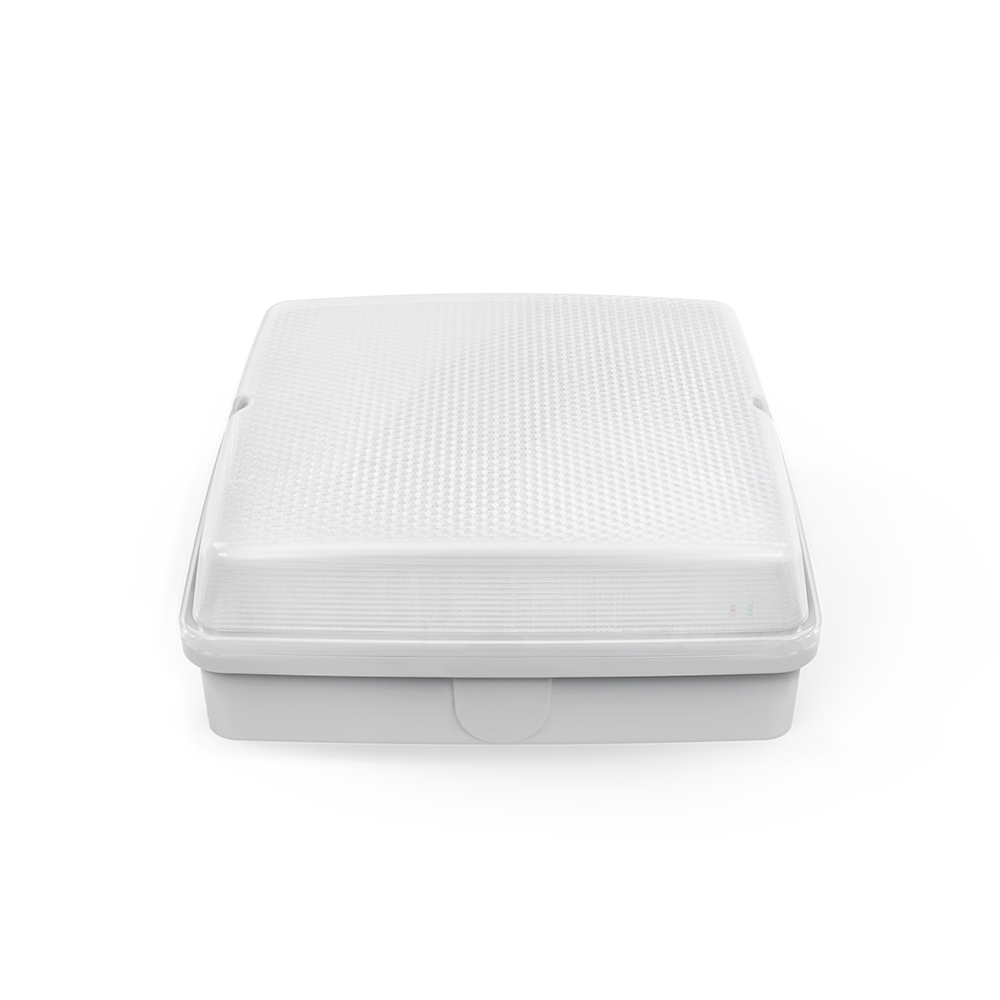

Quadro Advanced Bunker IP65, Tri-colour, Dual Power

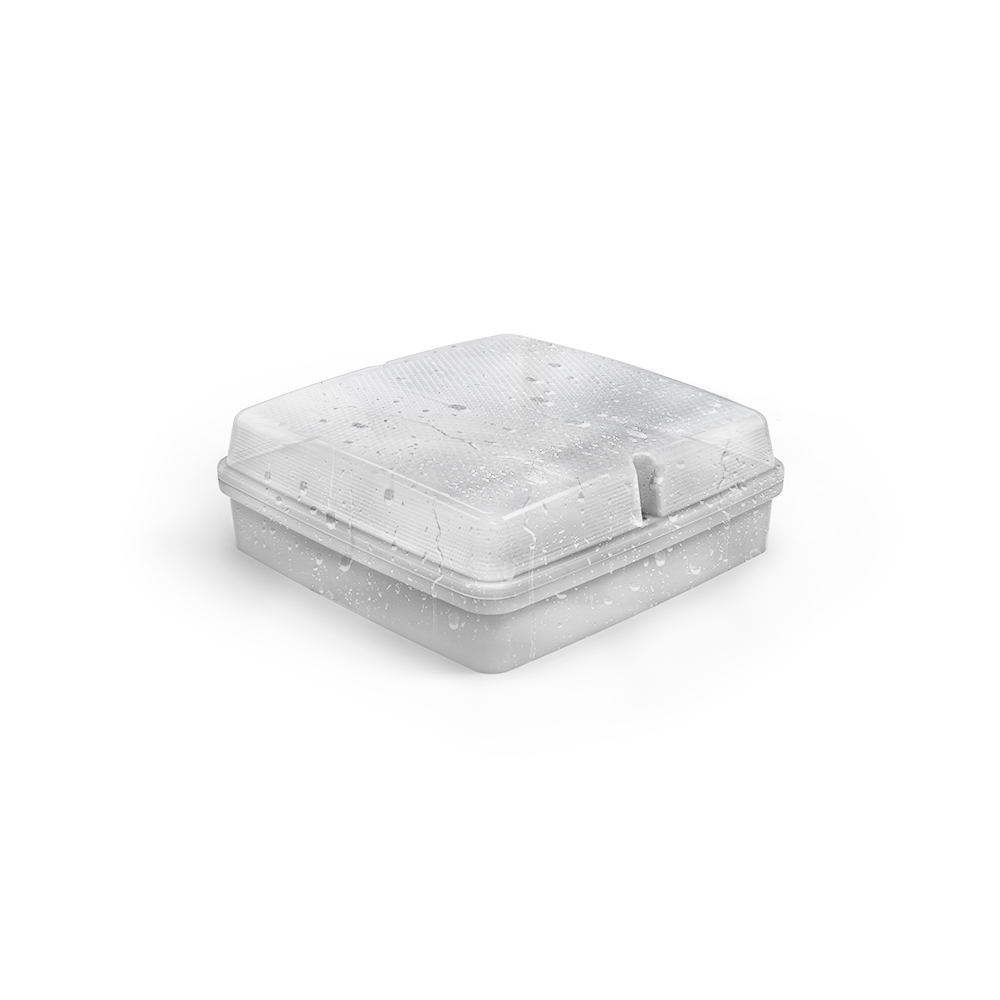

  • IP65 weatherproof rating and vandal-proof IK08 rating
  • 8 years design life at max. ambient
  • Tri-colour selectable 3000K / 4000K / 6000K
  • Emergency and non-emergency models
  • Selectable power consumption: 20W or 12W

Selected Models

  • Inbuilt mains rated microwave sensor
  • Corridor mode
  • Single Point Unit (SPU)
  • High quality lithium battery (LiFePO4)
SKU: Quadro Advanced Category: Tags: , , ,

Efficiencies

Total System Efficiency130 lm/W
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
IK RatingIK08
Installation TypeSurface mount
IP RatingIP65

Electrical

Electrical RatingClass I
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
System Max Wattage
EV-QUADRO-ADV
EV-QUADRO-ADV-S
20 W
EV-QUADRO-EM-ADV
EV-QUADRO-EM-ADV-S
23 W
Working Temp Range0 to 40 °C

Lamp

Macadam Steps (SDCM)5-step MacAdam Ellipse
Colour Rendering Index (CRI)>80
Lamp/LED Current460 mA
Lamp/LED voltage36 V
CCT ConfigurationTRI-CCT

LED Lifetime

LED Lifetime Ratings (Failure rate & lumen depreciation)
EV-QUADRO-ADV
Ambient Temp (°C)25 °C40 °C
L90B1041000 hrs37000 hrs
EV-QUADRO-ADV-S
Ambient Temp (°C)25 °C40 °C
L90B1043000 hrs39000 hrs
EV-QUADRO-EM-ADV
Ambient Temp (°C)25 °C40 °C
L90B1042000 hrs38000 hrs
EV-QUADRO-EM-ADV-S
Ambient Temp (°C)25 °C40 °C
L90B1043000 hrs38000 hrs
This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717.
TM-21 Test Hours9000 hrs

Colour temperature

9 Watts
3000 K1100 lm
4000 K1350 lm
6000 K1300 lm
18 Watts
3000 K2200 lm
4000 K2650 lm
6000 K2600 lm

Driver

DimmableNo
Driver IncludedYes
Integrated DriverNo
Driver TypeFixed output
Wiring Type
EV-QUADRO-ADV
EV-QUADRO-ADV-S
Re-wireable terminal block (3 pin)
EV-QUADRO-EM-ADV
EV-QUADRO-EM-ADV-S
Re-wireable terminal block (4 pin)
PSTLM0.09
Short Term Light Modulation (PstLM): The requirement is that PstLM should be less than or equal to 1.0. This metric measures the short-term flicker severity and ensures that flicker is not perceptible or is at a level that does not cause discomfort or health issues.
SVM0.012
Stroboscopic Visibility Measure (SVM): The requirement for SVM is that it should be less than or equal to 0.4. The SVM metric assesses the visibility of the stroboscopic effect, which can make moving objects appear to be stationary or moving in discrete steps, thus ensuring that this effect is minimized in lighting environments to prevent visual discomfort and safety hazards.

Sensor (S suffix)

Adjustable Detection Area / SensitivityYes
Adjustable Hold TimeYes
Adjustable Standby LevelYes
Adjustable Standby PeriodYes
Corridor FunctionYes
Detection Range10 m
Dusk ModeYes
Lux AdjustmentYes
Sensor TypeMicrowave
Switched OutputNo
Time Delay5s-14mins

Emergency (EM suffix)

Replacement Battery Code1302
Emergency ClassificationC0:D50, C90:D50
Emergency Duration90 mins
Emergency ModeMaintained

Compliance

Product Design Life8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS/NZS 60598.2.1
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS/NZS 61058.1
  • AS/NZS CISPR 15
  • AS/NZS 4268
  • AS 60598.2.22
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty
EV-QUADRO-ADV
EV-QUADRO-ADV-S
5 RTB (Total 5 Years)
EV-QUADRO-EM-ADV
EV-QUADRO-EM-ADV-S
5 RTB General, 6 RTB Emergency
VIP Warranty2 Onsite, 3 RTB (Total 5 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.
Product Height102 mm
Product Length275 mm
Product Width275 mm
EV/QUADRO/ADV
Order codeItem codeDescriptionAvailability
14520EV-QUADRO-ADVEktor Quadro LED bunker IP65
14522EV-QUADRO-ADV-SEktor Quadro LED bunker IP65 w/corridor function sensor
14521EV-QUADRO-EM-ADVEktor Quadro LED Emergency bunker IP65
14523EV-QUADRO-EM-ADV-SEktor Quadro LED Emergency bunker IP65 w/corridor function sensor

*Auto generated datasheet (beta)
