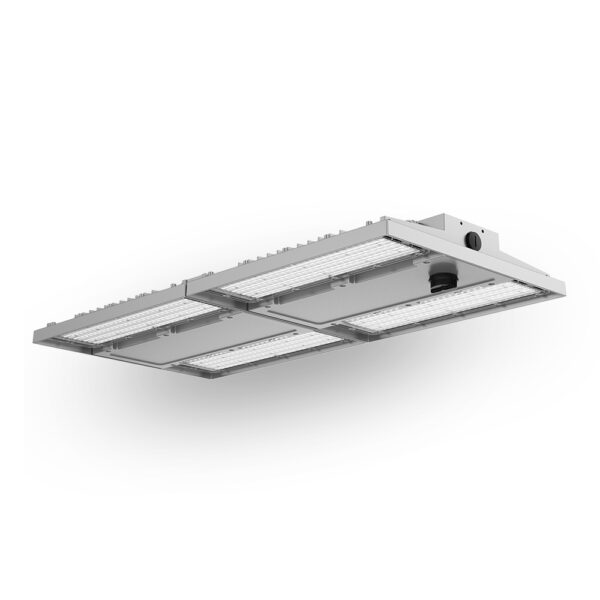

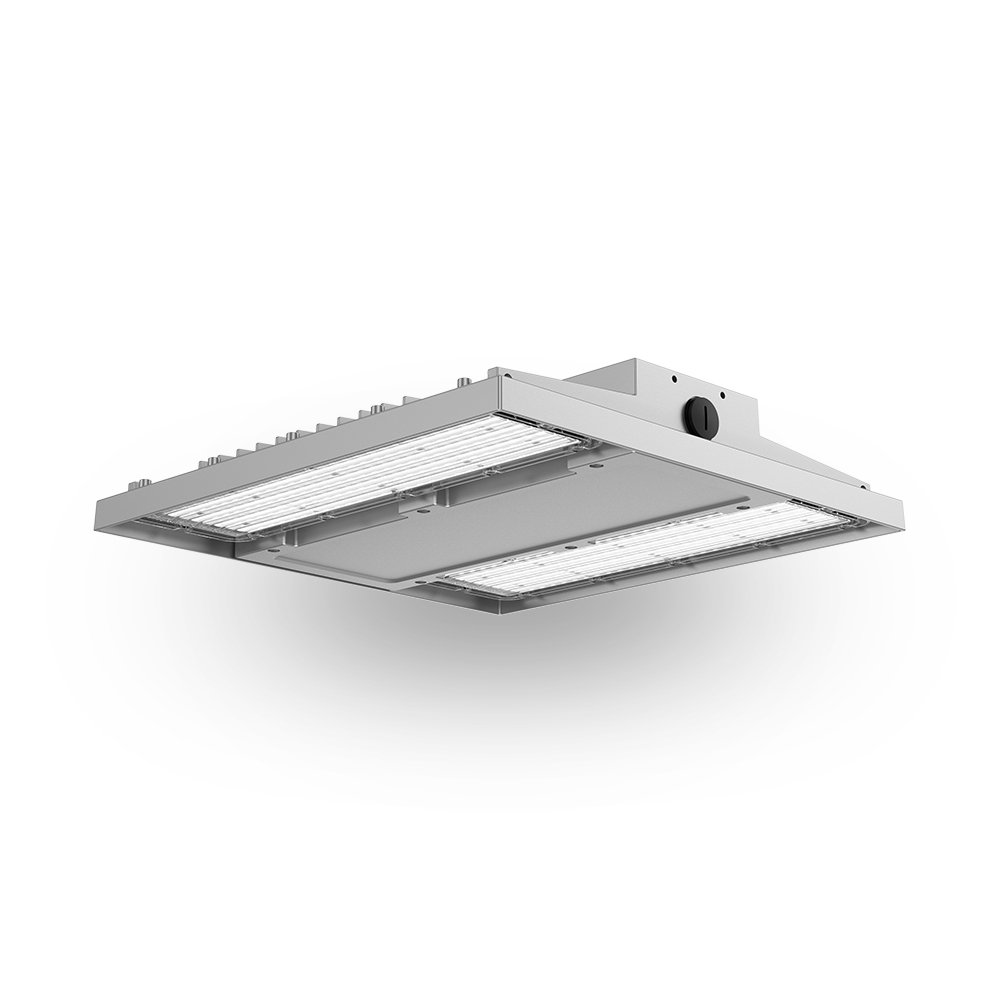

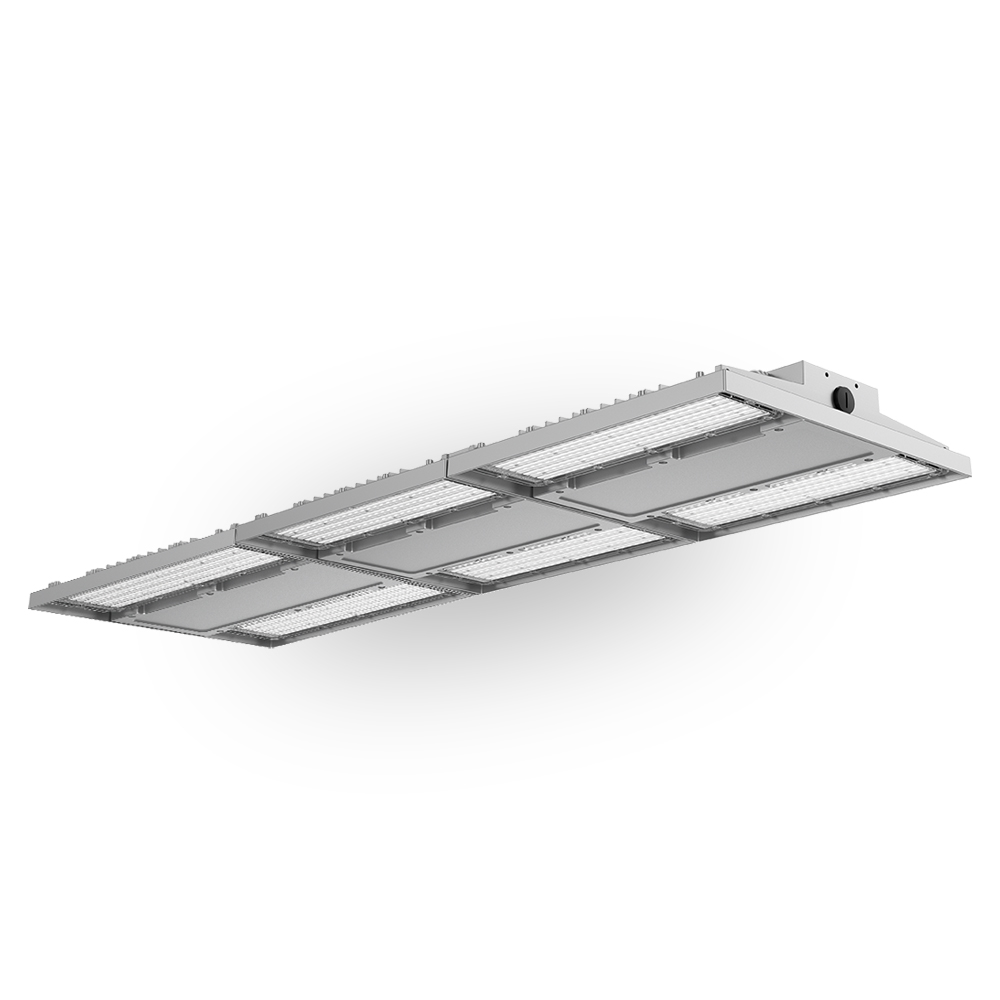

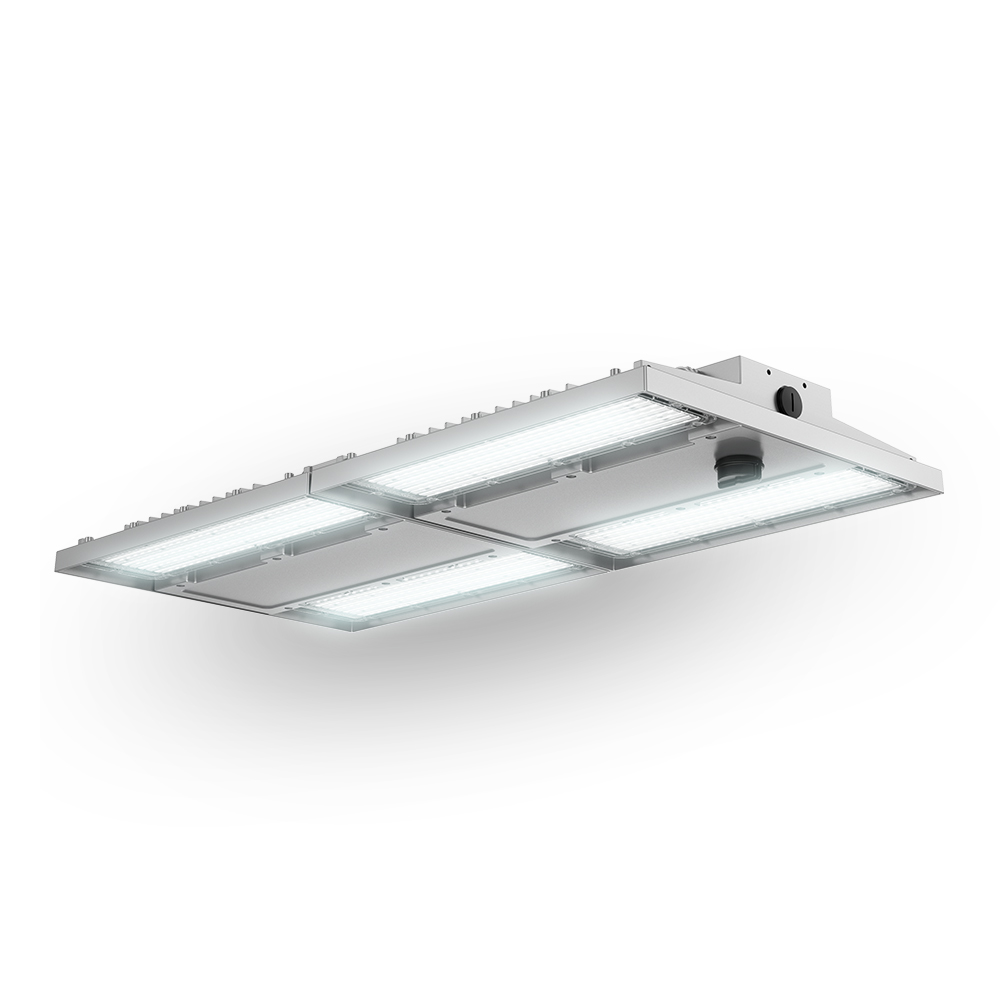

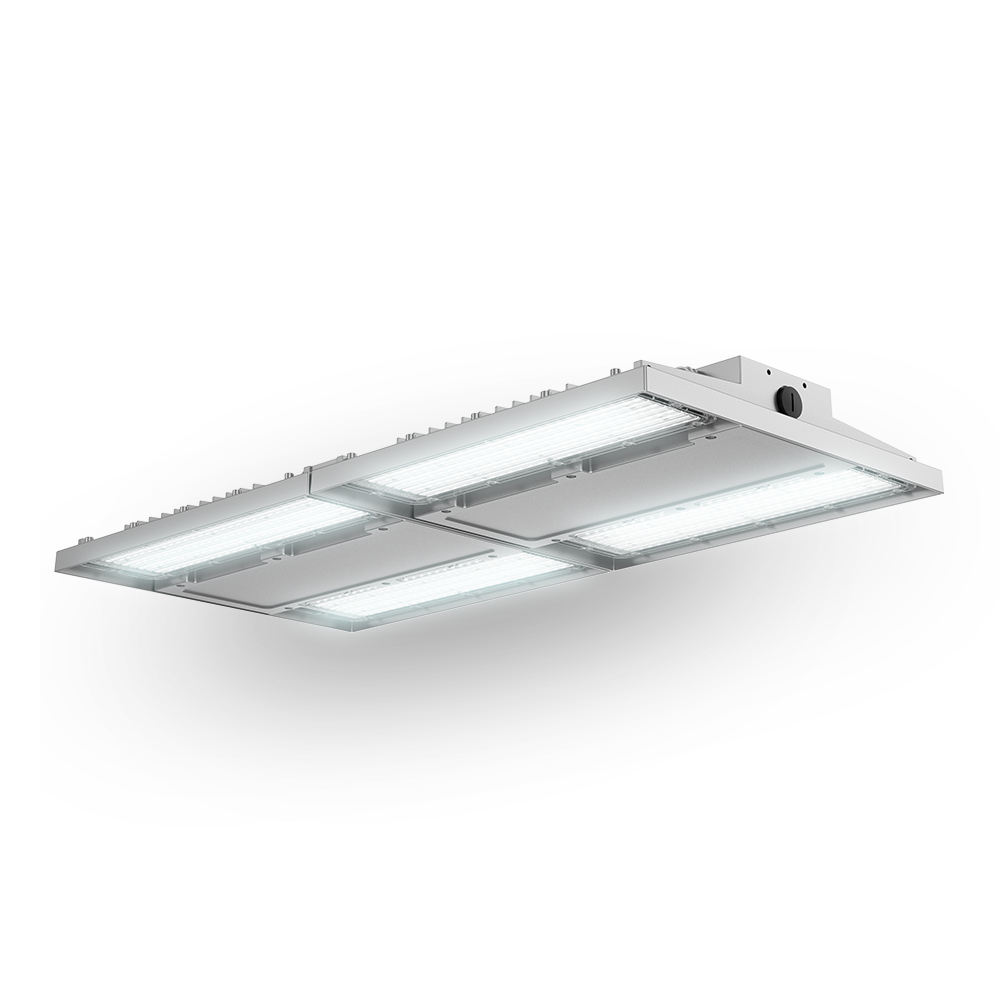

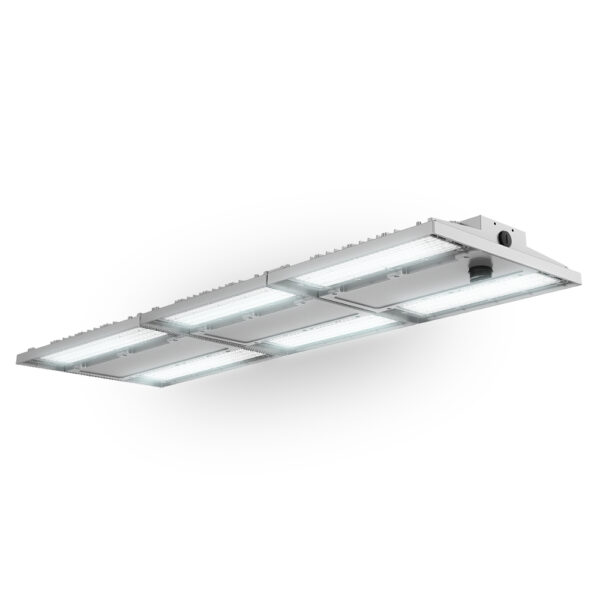

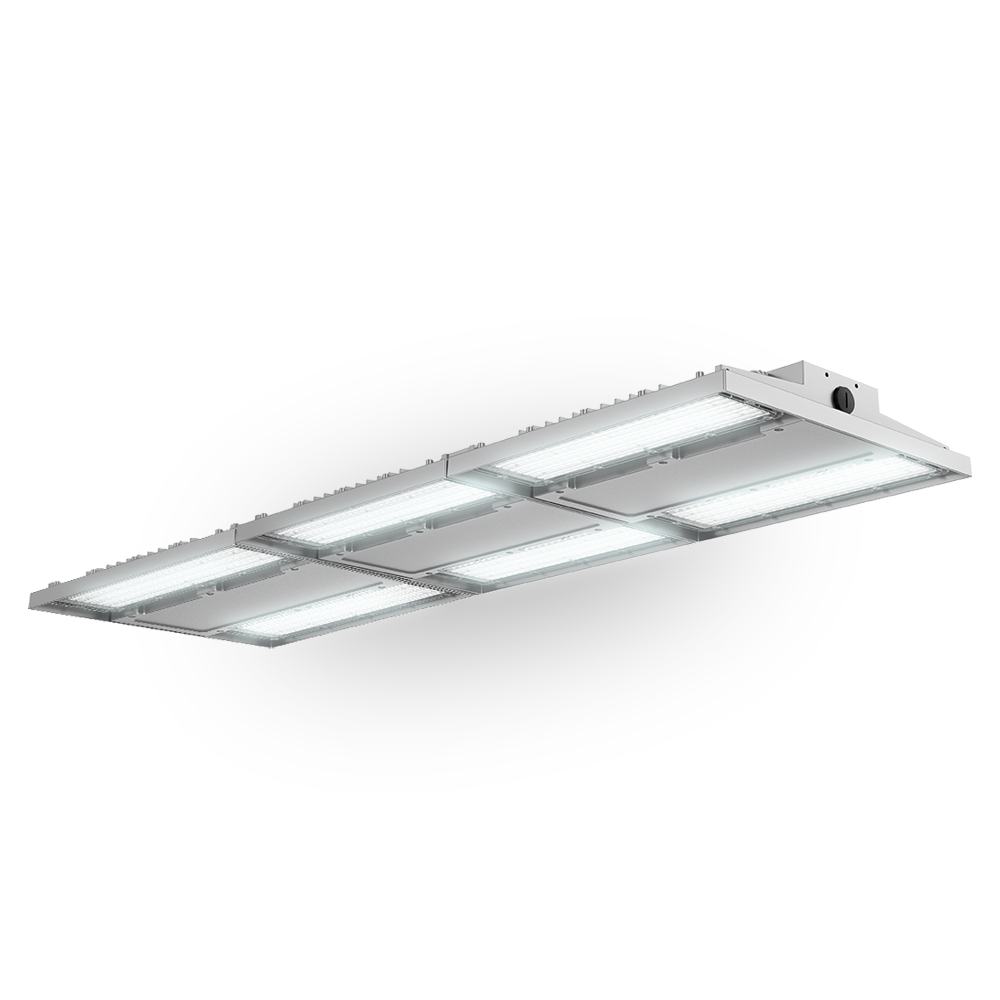

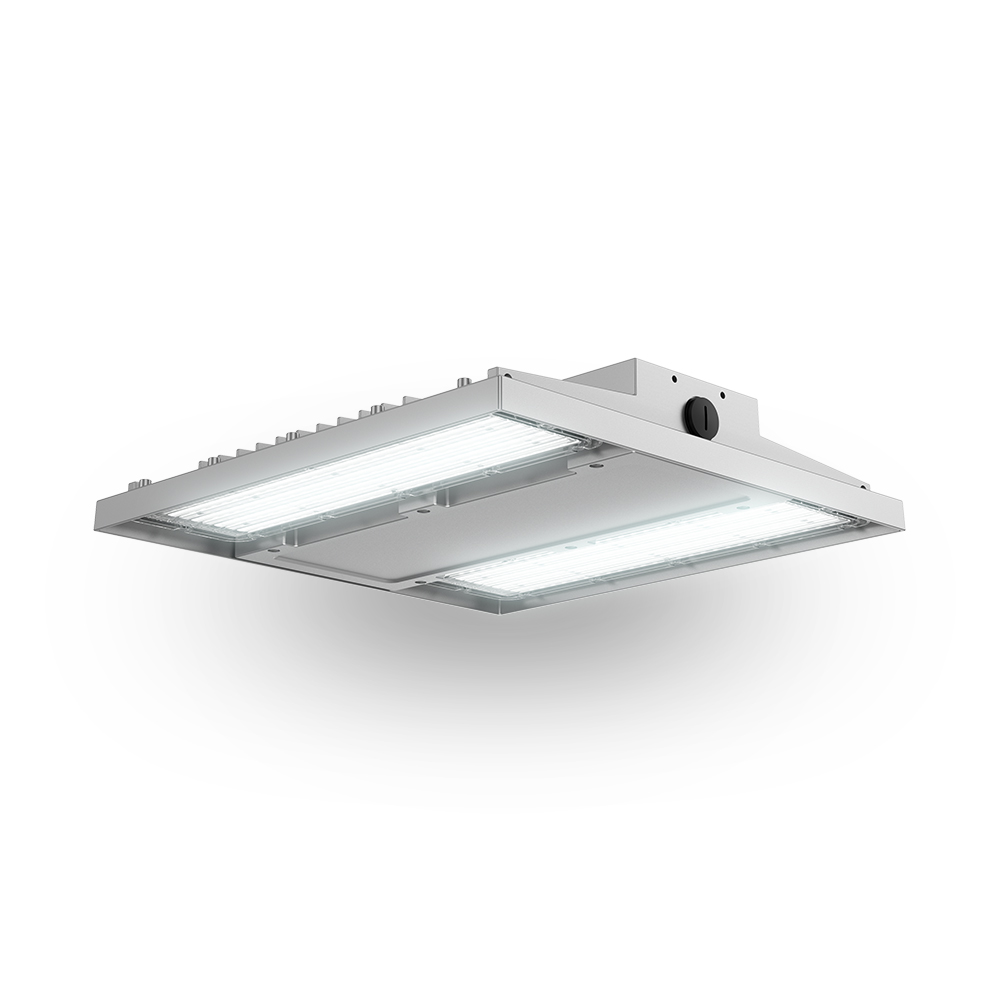

Efficiencies
| Total System Efficiency | |
|---|---|
| EV-PLANAR-PRO-100W-30105D-50K EV-PLANAR-PRO-100W-30105D-50K-DA EV-PLANAR-PRO-100W-60105D-50K EV-PLANAR-PRO-100W-60105D-50K-DA EV-PLANAR-PRO-150W-30105D-50K EV-PLANAR-PRO-150W-30105D-50K-DA EV-PLANAR-PRO-150W-60105D-50K EV-PLANAR-PRO-150W-60105D-50K-DA EV-PLANAR-PRO-200W-30105D-50K EV-PLANAR-PRO-200W-30105D-50K-DA EV-PLANAR-PRO-200W-60105D-50K EV-PLANAR-PRO-200W-60105D-50K-DA EV-PLANAR-PRO-240W-30105D-50K EV-PLANAR-PRO-240W-30105D-50K-DA EV-PLANAR-PRO-240W-60105D-50K EV-PLANAR-PRO-240W-60105D-50K-DA EV-PLANAR-PRO-300W- 90D-50K EV-PLANAR-PRO-300W- 90D-50K-DA EV-PLANAR-PRO-300W-30105D-50K EV-PLANAR-PRO-300W-30105D-50K-DA EV-PLANAR-PRO-300W-60105D-50K EV-PLANAR-PRO-300W-60105D-50K-DA EV-PLANAR-PRO-480W-30105D-50K EV-PLANAR-PRO-480W-30105D-50K-DA EV-PLANAR-PRO-480W-60105D-50K EV-PLANAR-PRO-480W-60105D-50K-DA | 170 lm/W |
| EV-PLANAR-PRO-400W-30105D-50K EV-PLANAR-PRO-400W-30105D-50K-DA | 172 lm/W |
| EV-PLANAR-PRO-400W-60105D-50K EV-PLANAR-PRO-400W-60105D-50K-DA | 175 lm/W |
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP66 |
|---|---|
| IK Rating | IK10 |
| Fitting Colour | Silver |
| Body Material | Aluminium alloy |
| Diffuser Material | Polycarbonate |

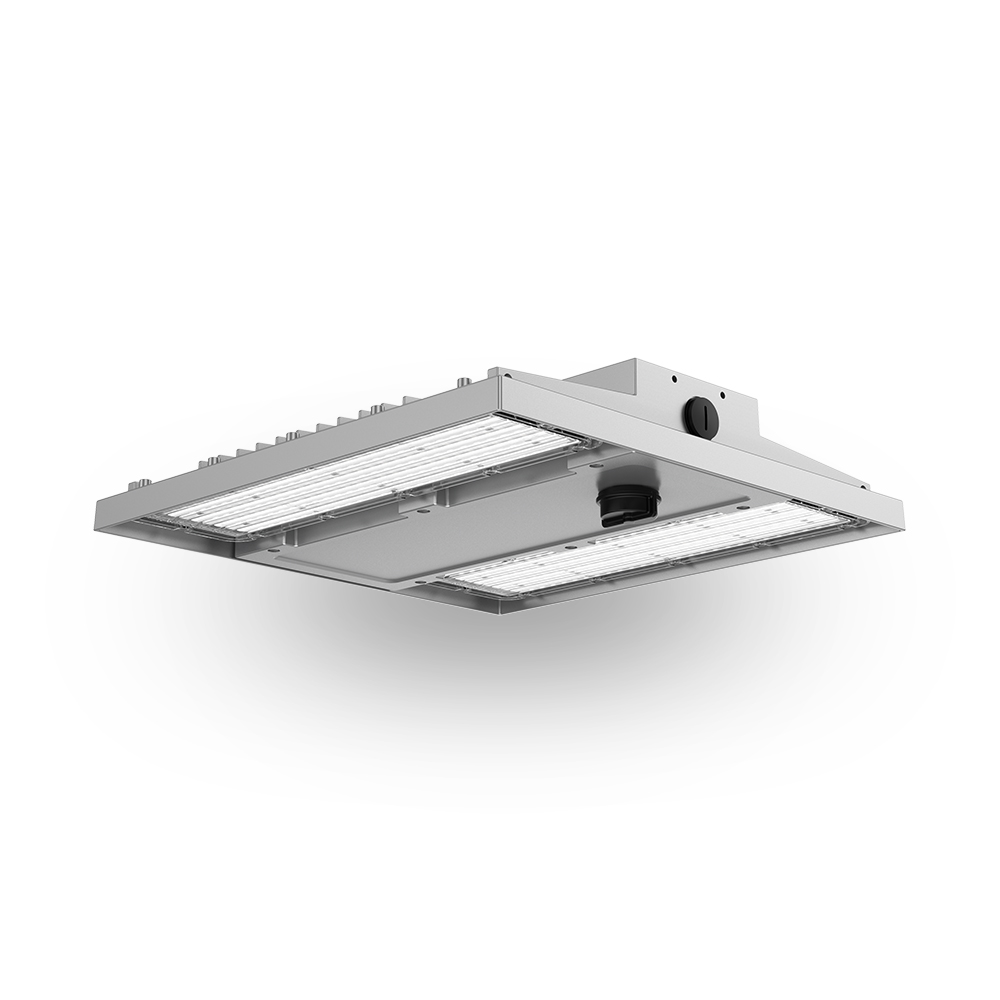

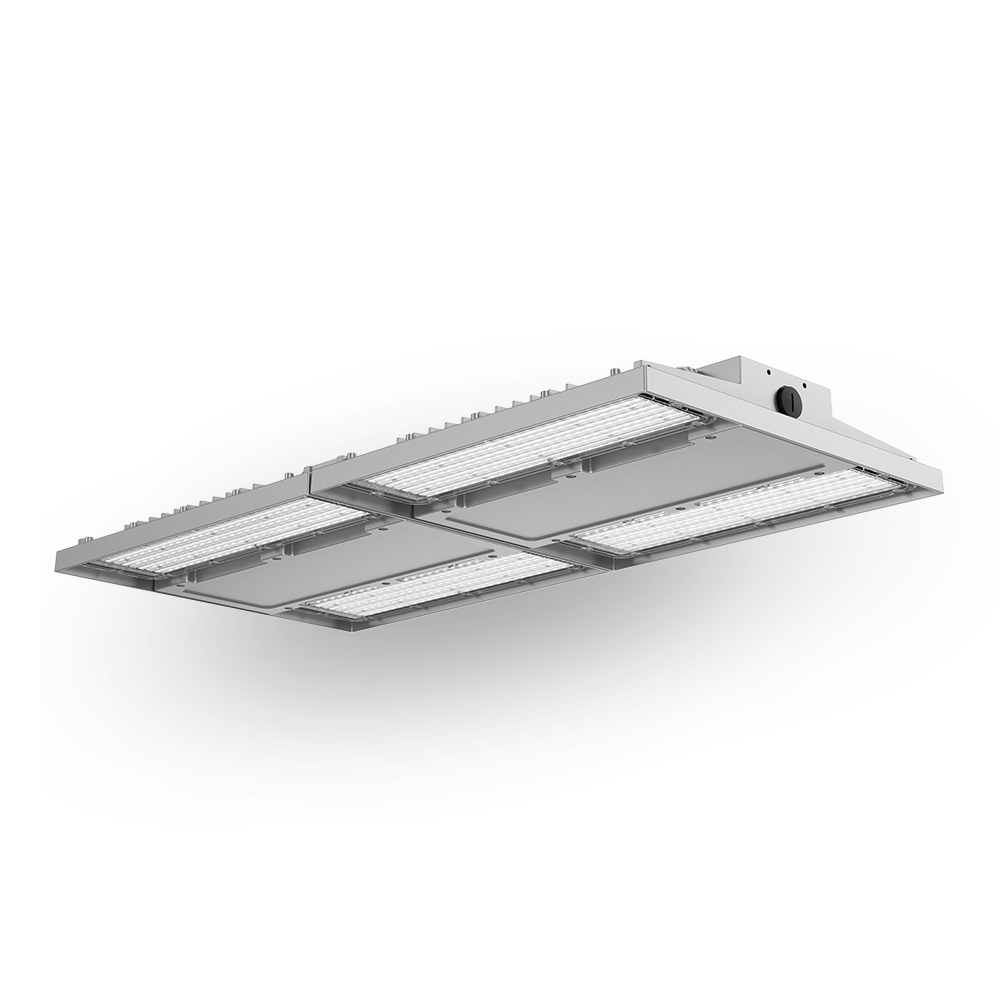

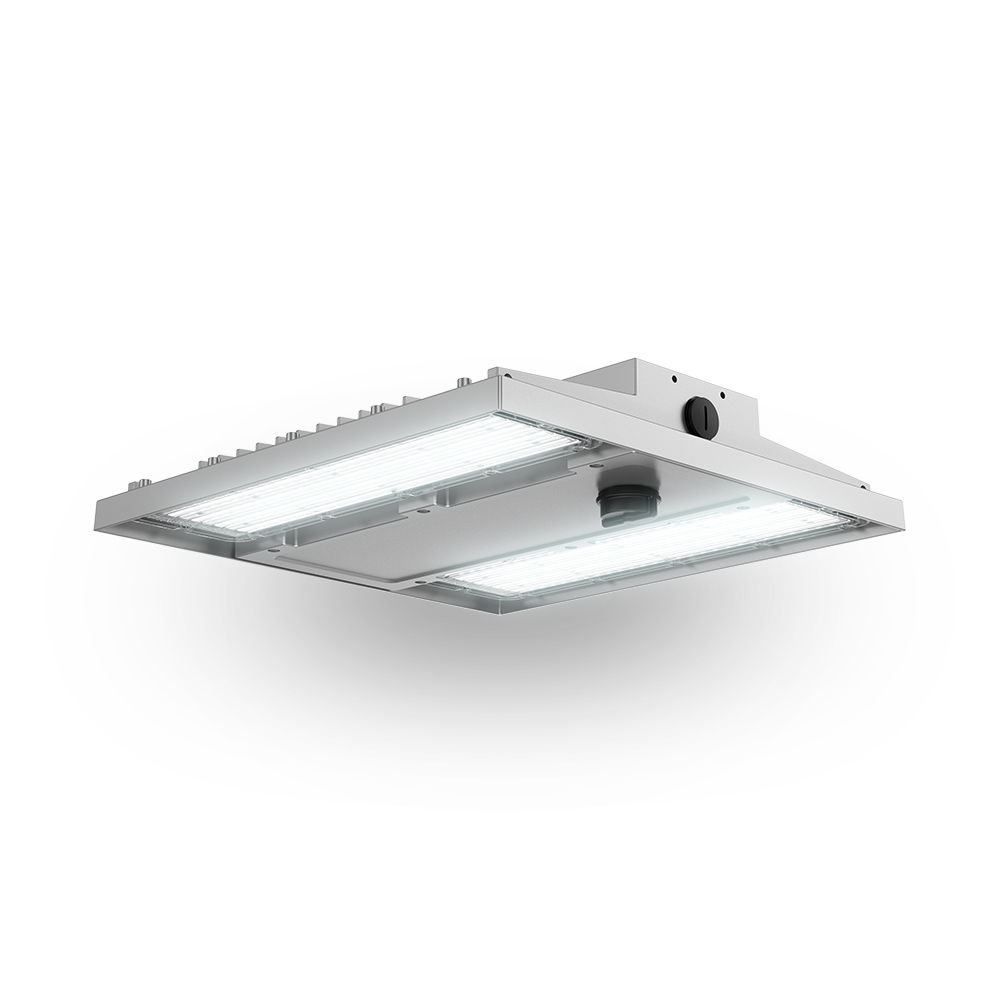

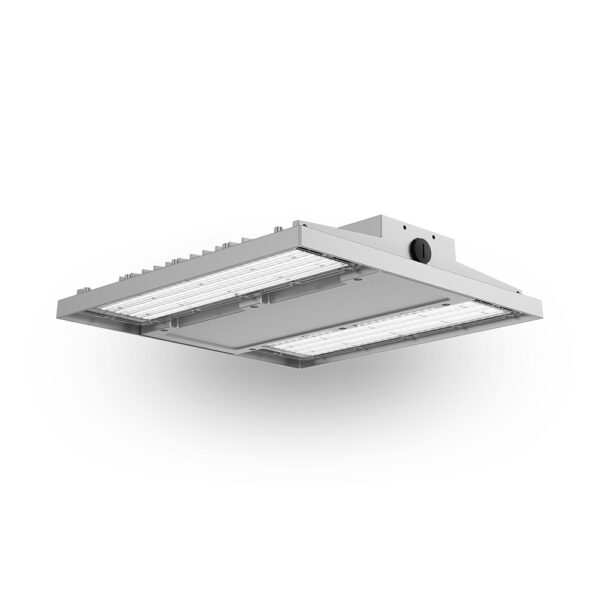

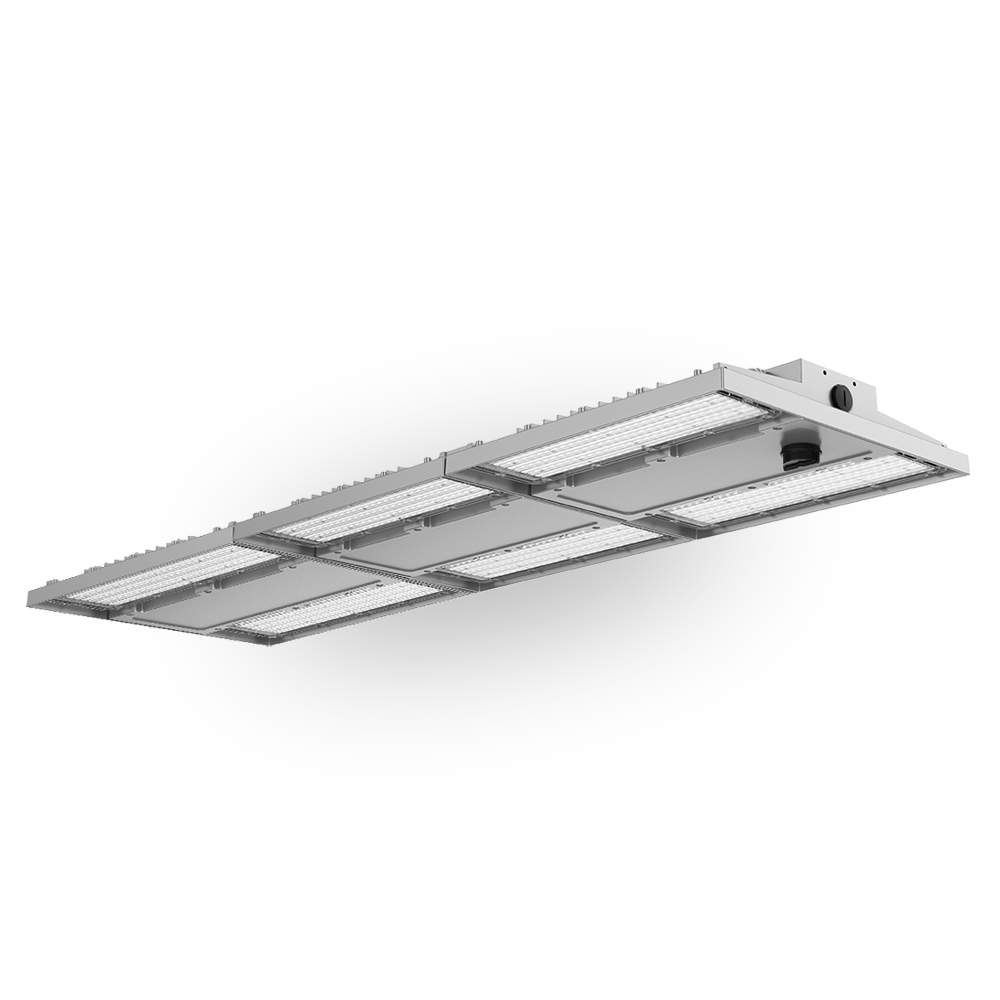

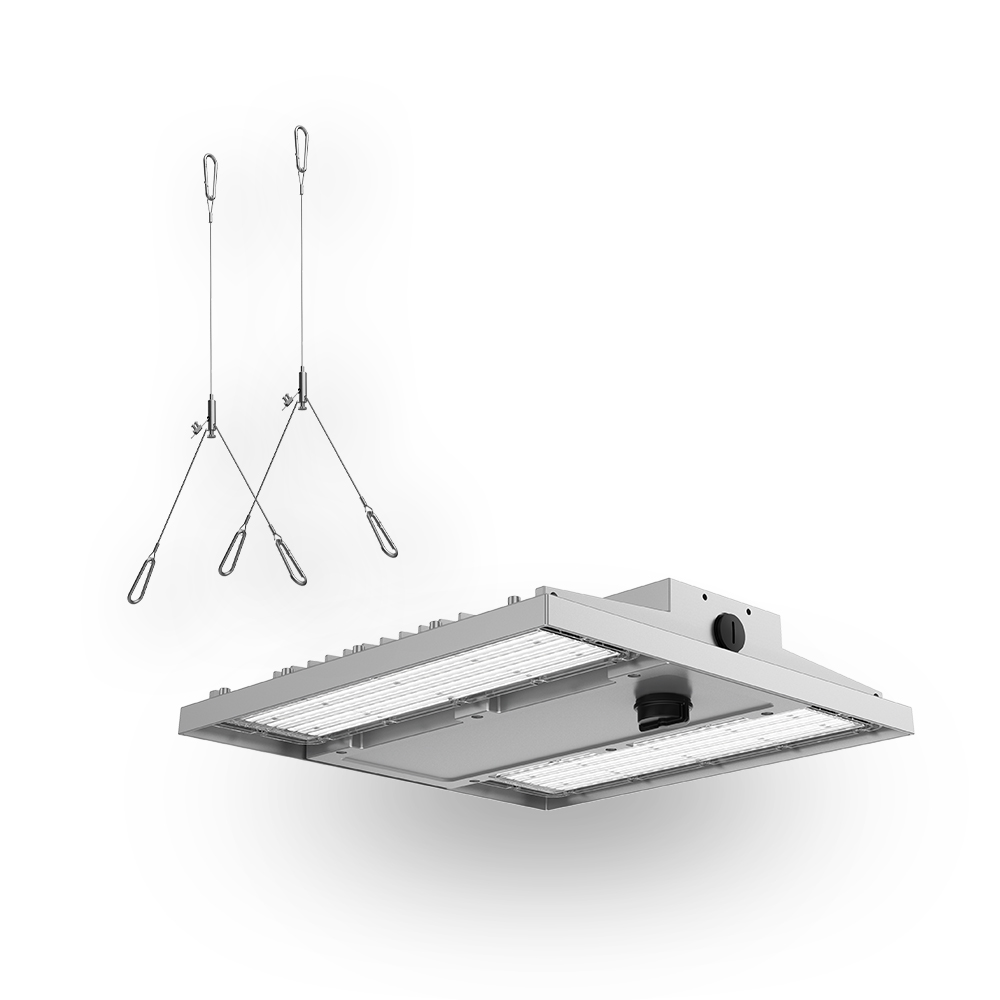

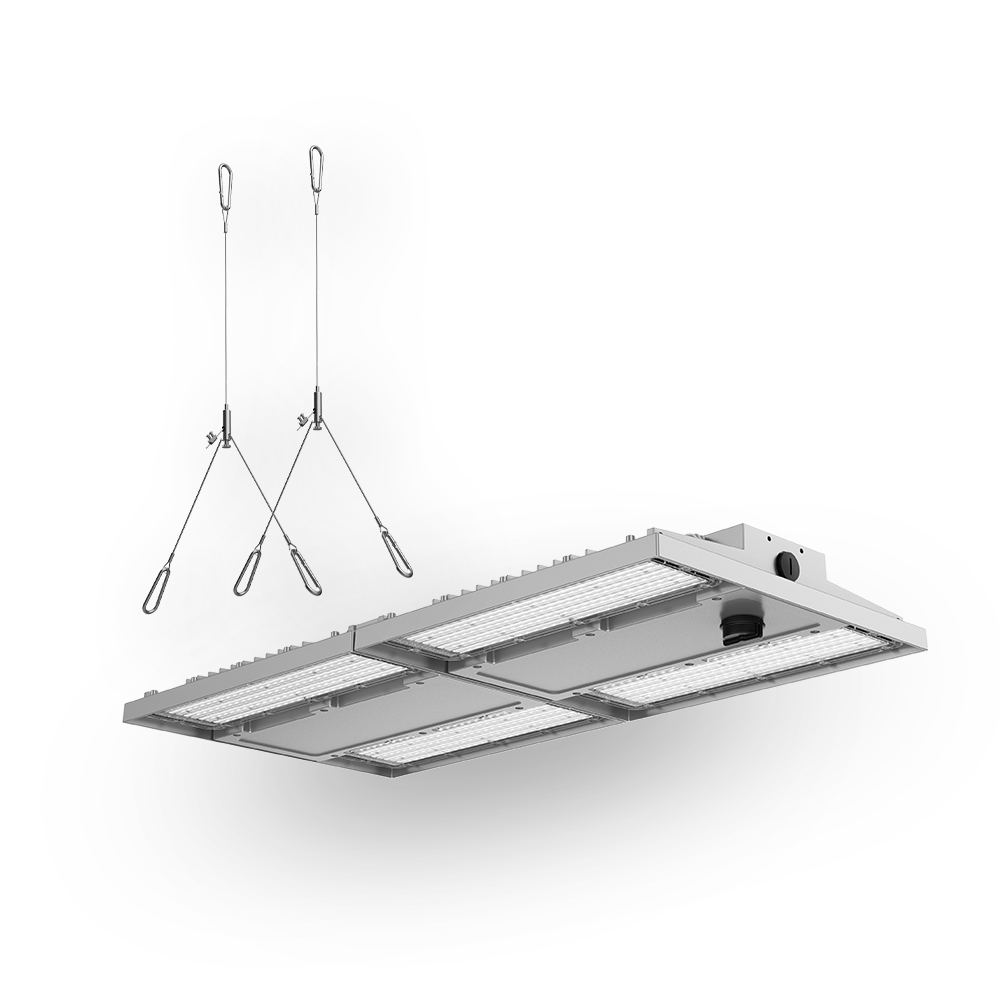

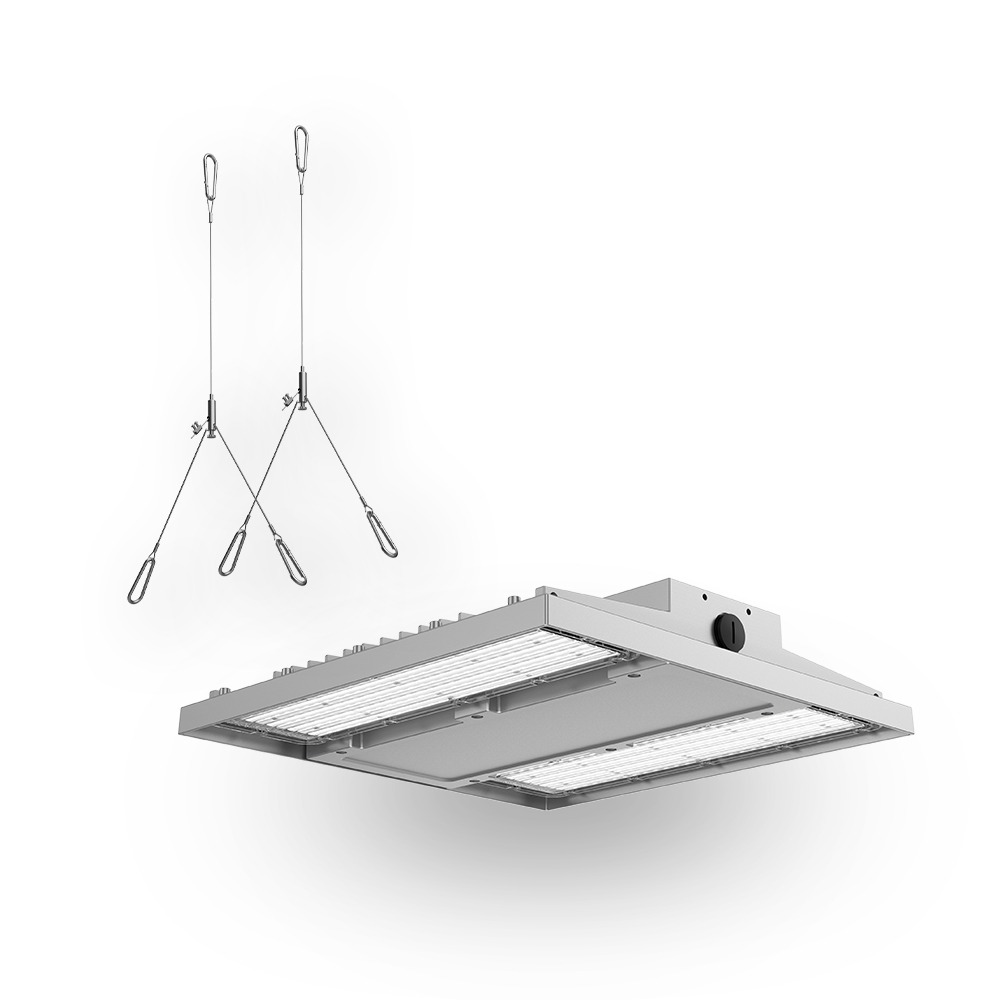

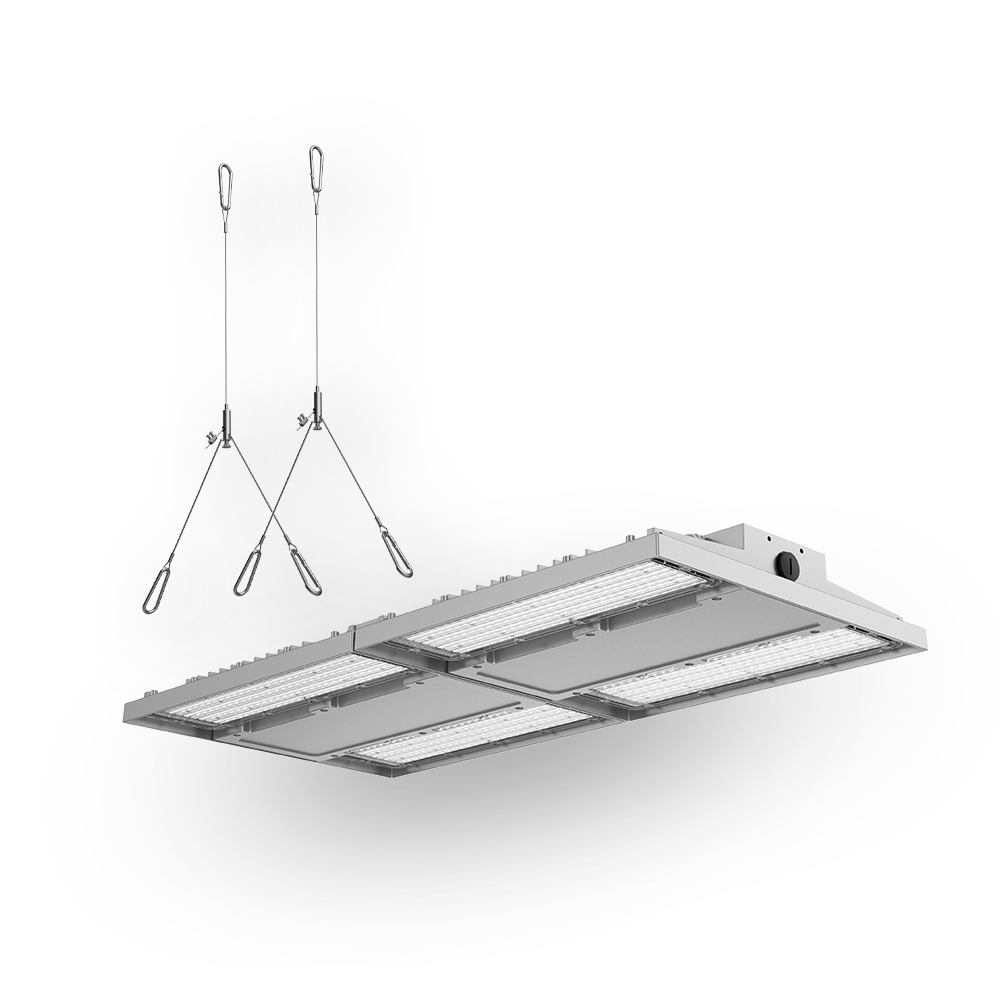

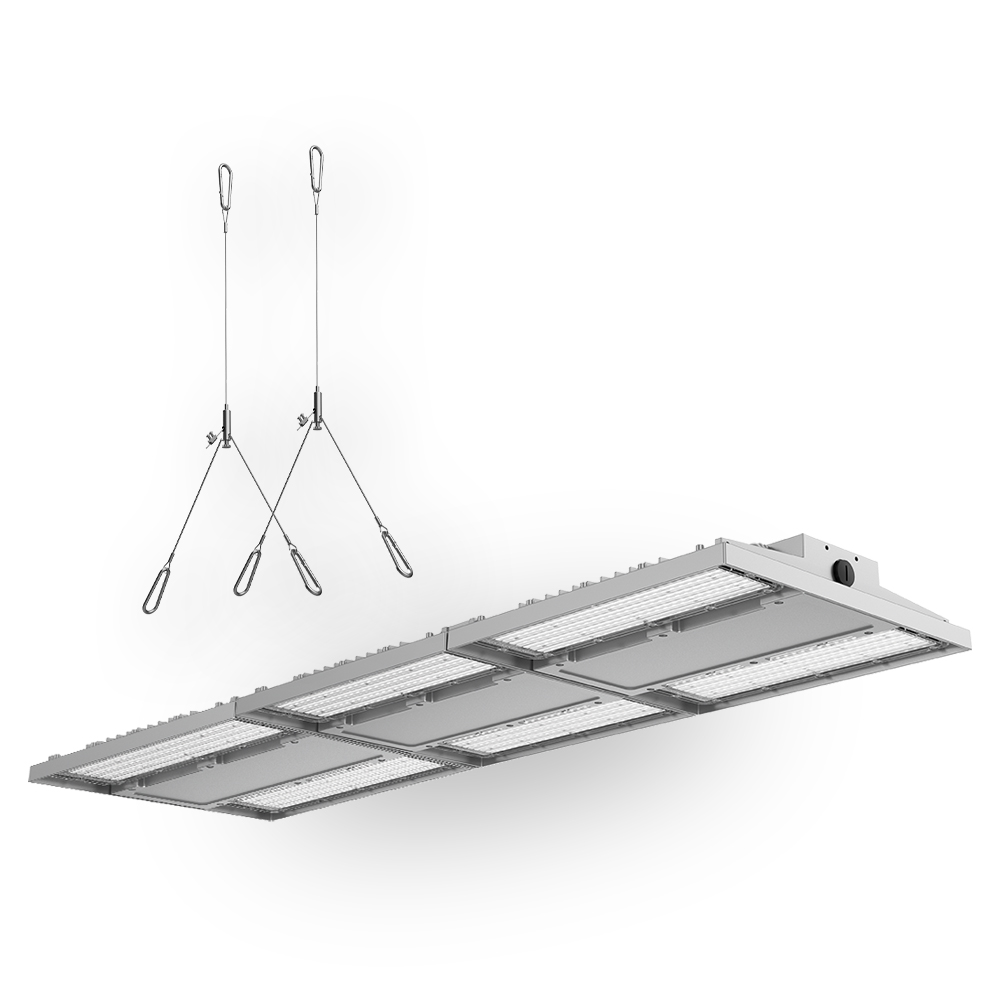

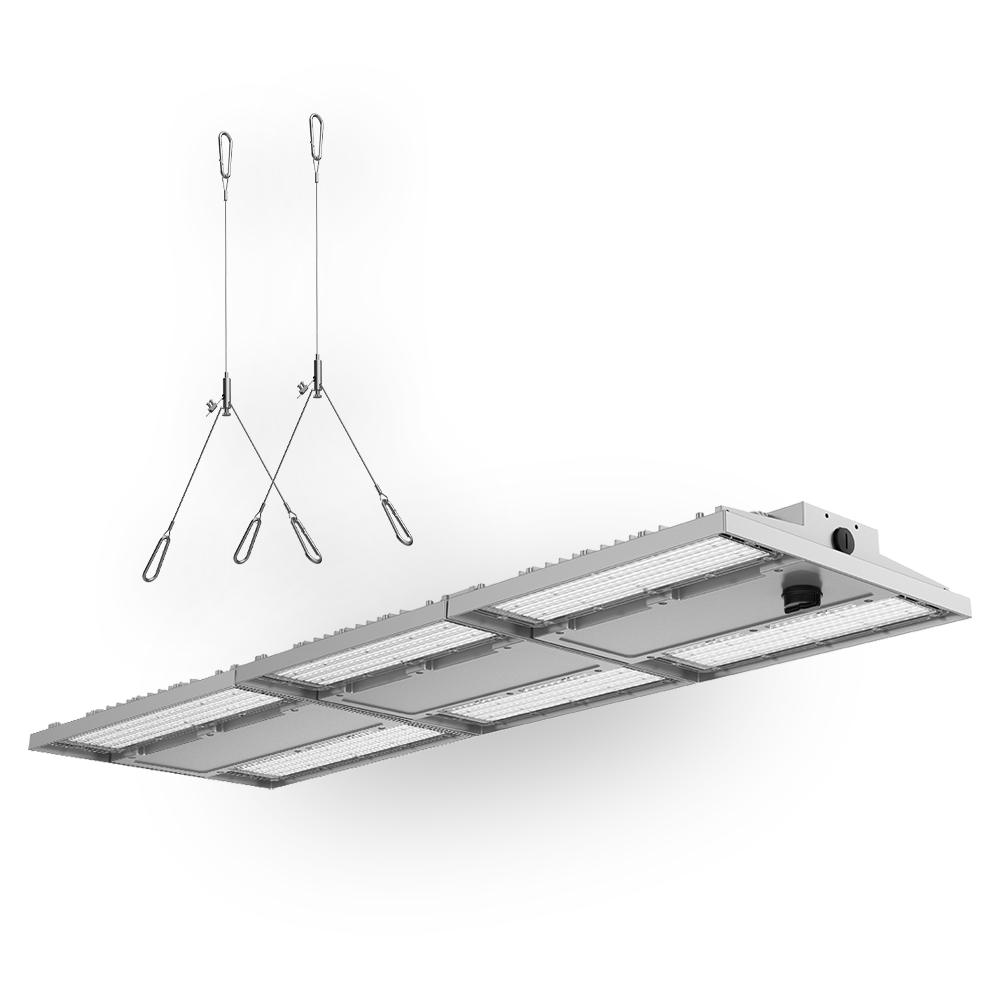

| Installation Type | Suspended |
Electrical
| Working Temp Range | -30 to 50 °C |
|---|---|
| Input Frequency | 50 Hz |
| Power Factor | 0.95 |
| Inrush Current | |
| EV-PLANAR-PRO-200W-30105D-50K EV-PLANAR-PRO-200W-30105D-50K-DA EV-PLANAR-PRO-200W-60105D-50K EV-PLANAR-PRO-200W-60105D-50K-DA | 110 A |
| EV-PLANAR-PRO-150W-30105D-50K EV-PLANAR-PRO-150W-30105D-50K-DA EV-PLANAR-PRO-150W-60105D-50K EV-PLANAR-PRO-150W-60105D-50K-DA | 125 A |
| EV-PLANAR-PRO-240W-30105D-50K EV-PLANAR-PRO-240W-30105D-50K-DA EV-PLANAR-PRO-240W-60105D-50K EV-PLANAR-PRO-240W-60105D-50K-DA EV-PLANAR-PRO-400W-30105D-50K EV-PLANAR-PRO-400W-30105D-50K-DA EV-PLANAR-PRO-400W-60105D-50K EV-PLANAR-PRO-400W-60105D-50K-DA EV-PLANAR-PRO-480W-30105D-50K EV-PLANAR-PRO-480W-30105D-50K-DA EV-PLANAR-PRO-480W-60105D-50K EV-PLANAR-PRO-480W-60105D-50K-DA | 150 A |
| EV-PLANAR-PRO-100W-30105D-50K EV-PLANAR-PRO-100W-30105D-50K-DA EV-PLANAR-PRO-100W-60105D-50K EV-PLANAR-PRO-100W-60105D-50K-DA | 180 A |
| EV-PLANAR-PRO-300W- 90D-50K EV-PLANAR-PRO-300W- 90D-50K-DA EV-PLANAR-PRO-300W-30105D-50K EV-PLANAR-PRO-300W-30105D-50K-DA EV-PLANAR-PRO-300W-60105D-50K EV-PLANAR-PRO-300W-60105D-50K-DA | 300 A |
| Inrush Duration | |
| EV-PLANAR-PRO-100W-30105D-50K EV-PLANAR-PRO-100W-30105D-50K-DA EV-PLANAR-PRO-100W-60105D-50K EV-PLANAR-PRO-100W-60105D-50K-DA | 150 uS |
| EV-PLANAR-PRO-150W-30105D-50K EV-PLANAR-PRO-150W-30105D-50K-DA EV-PLANAR-PRO-150W-60105D-50K EV-PLANAR-PRO-150W-60105D-50K-DA | 200 uS |
| EV-PLANAR-PRO-240W-30105D-50K EV-PLANAR-PRO-240W-30105D-50K-DA EV-PLANAR-PRO-240W-60105D-50K EV-PLANAR-PRO-240W-60105D-50K-DA EV-PLANAR-PRO-300W- 90D-50K EV-PLANAR-PRO-300W- 90D-50K-DA EV-PLANAR-PRO-300W-30105D-50K EV-PLANAR-PRO-300W-30105D-50K-DA EV-PLANAR-PRO-300W-60105D-50K EV-PLANAR-PRO-300W-60105D-50K-DA EV-PLANAR-PRO-400W-30105D-50K EV-PLANAR-PRO-400W-30105D-50K-DA EV-PLANAR-PRO-400W-60105D-50K EV-PLANAR-PRO-400W-60105D-50K-DA | 300 uS |
| EV-PLANAR-PRO-200W-30105D-50K EV-PLANAR-PRO-200W-30105D-50K-DA EV-PLANAR-PRO-200W-60105D-50K EV-PLANAR-PRO-200W-60105D-50K-DA EV-PLANAR-PRO-480W-30105D-50K EV-PLANAR-PRO-480W-30105D-50K-DA EV-PLANAR-PRO-480W-60105D-50K EV-PLANAR-PRO-480W-60105D-50K-DA | 350 uS |
| Maximum Wattage | |
| EV-PLANAR-PRO-100W-30105D-50K EV-PLANAR-PRO-100W-30105D-50K-DA EV-PLANAR-PRO-100W-60105D-50K EV-PLANAR-PRO-100W-60105D-50K-DA | 100 W |
| EV-PLANAR-PRO-150W-30105D-50K EV-PLANAR-PRO-150W-30105D-50K-DA EV-PLANAR-PRO-150W-60105D-50K EV-PLANAR-PRO-150W-60105D-50K-DA | 150 W |
| EV-PLANAR-PRO-200W-30105D-50K EV-PLANAR-PRO-200W-30105D-50K-DA EV-PLANAR-PRO-200W-60105D-50K EV-PLANAR-PRO-200W-60105D-50K-DA | 200 W |
| EV-PLANAR-PRO-240W-30105D-50K EV-PLANAR-PRO-240W-30105D-50K-DA EV-PLANAR-PRO-240W-60105D-50K EV-PLANAR-PRO-240W-60105D-50K-DA | 240 W |
| EV-PLANAR-PRO-300W- 90D-50K EV-PLANAR-PRO-300W- 90D-50K-DA EV-PLANAR-PRO-300W-30105D-50K EV-PLANAR-PRO-300W-30105D-50K-DA EV-PLANAR-PRO-300W-60105D-50K EV-PLANAR-PRO-300W-60105D-50K-DA | 300 W |
| EV-PLANAR-PRO-400W-30105D-50K EV-PLANAR-PRO-400W-30105D-50K-DA EV-PLANAR-PRO-400W-60105D-50K EV-PLANAR-PRO-400W-60105D-50K-DA | 400 W |
| EV-PLANAR-PRO-480W-30105D-50K EV-PLANAR-PRO-480W-30105D-50K-DA EV-PLANAR-PRO-480W-60105D-50K EV-PLANAR-PRO-480W-60105D-50K-DA | 480 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Input Current | |
| EV-PLANAR-PRO-200W-60105D-50K | 0.85 A |
| EV-PLANAR-PRO-100W-30105D-50K EV-PLANAR-PRO-100W-30105D-50K-DA EV-PLANAR-PRO-100W-60105D-50K-DA | 1.25 A |
| EV-PLANAR-PRO-150W-30105D-50K EV-PLANAR-PRO-150W-30105D-50K-DA EV-PLANAR-PRO-150W-60105D-50K-DA | 1.9 A |
| EV-PLANAR-PRO-200W-30105D-50K EV-PLANAR-PRO-200W-30105D-50K-DA EV-PLANAR-PRO-200W-60105D-50K-DA | 2.4 A |
| EV-PLANAR-PRO-240W-30105D-50K EV-PLANAR-PRO-240W-30105D-50K-DA EV-PLANAR-PRO-240W-60105D-50K EV-PLANAR-PRO-240W-60105D-50K-DA EV-PLANAR-PRO-400W-30105D-50K EV-PLANAR-PRO-400W-30105D-50K-DA EV-PLANAR-PRO-400W-60105D-50K EV-PLANAR-PRO-400W-60105D-50K-DA EV-PLANAR-PRO-480W-30105D-50K EV-PLANAR-PRO-480W-30105D-50K-DA EV-PLANAR-PRO-480W-60105D-50K EV-PLANAR-PRO-480W-60105D-50K-DA | 2.8 A |
| EV-PLANAR-PRO-300W- 90D-50K EV-PLANAR-PRO-300W- 90D-50K-DA EV-PLANAR-PRO-300W-30105D-50K EV-PLANAR-PRO-300W-30105D-50K-DA EV-PLANAR-PRO-300W-60105D-50K EV-PLANAR-PRO-300W-60105D-50K-DA | 3.8 A |
| Surge Protection L-N | 6kV |
| Surge Protection L/N-PE | 10kV |
| Earth Leakage | <0.75 mA |
| Standby Power | 0.5 W |
| Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge. | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | Single |
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
| Beam Angle | |
| EV-PLANAR-PRO-100W-30105D-50K EV-PLANAR-PRO-100W-30105D-50K-DA EV-PLANAR-PRO-150W-30105D-50K EV-PLANAR-PRO-150W-30105D-50K-DA EV-PLANAR-PRO-200W-30105D-50K EV-PLANAR-PRO-200W-30105D-50K-DA EV-PLANAR-PRO-240W-30105D-50K EV-PLANAR-PRO-240W-30105D-50K-DA EV-PLANAR-PRO-300W-30105D-50K EV-PLANAR-PRO-300W-30105D-50K-DA EV-PLANAR-PRO-400W-30105D-50K EV-PLANAR-PRO-400W-30105D-50K-DA EV-PLANAR-PRO-480W-30105D-50K EV-PLANAR-PRO-480W-30105D-50K-DA | 30x105 ° |
| EV-PLANAR-PRO-100W-60105D-50K EV-PLANAR-PRO-100W-60105D-50K-DA EV-PLANAR-PRO-150W-60105D-50K EV-PLANAR-PRO-150W-60105D-50K-DA EV-PLANAR-PRO-200W-60105D-50K EV-PLANAR-PRO-200W-60105D-50K-DA EV-PLANAR-PRO-240W-60105D-50K EV-PLANAR-PRO-240W-60105D-50K-DA EV-PLANAR-PRO-300W-60105D-50K EV-PLANAR-PRO-300W-60105D-50K-DA EV-PLANAR-PRO-400W-60105D-50K EV-PLANAR-PRO-400W-60105D-50K-DA EV-PLANAR-PRO-480W-60105D-50K EV-PLANAR-PRO-480W-60105D-50K-DA | 60x105 ° |
| EV-PLANAR-PRO-300W- 90D-50K EV-PLANAR-PRO-300W- 90D-50K-DA | 90 ° |
LED Lifetime
| LED Lifetime | >60000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
| TM-21 Test Hours | 10000 hrs |
Colour temperature
| Luminaire Lumens | |
|---|---|
| EV-PLANAR-PRO-100W-30105D-50K EV-PLANAR-PRO-100W-30105D-50K-DA EV-PLANAR-PRO-100W-60105D-50K EV-PLANAR-PRO-100W-60105D-50K-DA | 17000 lm |
| EV-PLANAR-PRO-150W-30105D-50K EV-PLANAR-PRO-150W-30105D-50K-DA EV-PLANAR-PRO-150W-60105D-50K EV-PLANAR-PRO-150W-60105D-50K-DA | 25500 lm |
| EV-PLANAR-PRO-200W-30105D-50K EV-PLANAR-PRO-200W-30105D-50K-DA EV-PLANAR-PRO-200W-60105D-50K EV-PLANAR-PRO-200W-60105D-50K-DA | 34000 lm |
| EV-PLANAR-PRO-240W-30105D-50K EV-PLANAR-PRO-240W-30105D-50K-DA EV-PLANAR-PRO-240W-60105D-50K EV-PLANAR-PRO-240W-60105D-50K-DA | 40800 lm |
| EV-PLANAR-PRO-300W- 90D-50K EV-PLANAR-PRO-300W- 90D-50K-DA | 42200 lm |
| EV-PLANAR-PRO-300W-30105D-50K EV-PLANAR-PRO-300W-30105D-50K-DA EV-PLANAR-PRO-300W-60105D-50K EV-PLANAR-PRO-300W-60105D-50K-DA | 51000 lm |
| EV-PLANAR-PRO-400W-30105D-50K EV-PLANAR-PRO-400W-30105D-50K-DA | 69100 lm |
| EV-PLANAR-PRO-400W-60105D-50K EV-PLANAR-PRO-400W-60105D-50K-DA | 70250 lm |
| EV-PLANAR-PRO-480W-30105D-50K EV-PLANAR-PRO-480W-30105D-50K-DA EV-PLANAR-PRO-480W-60105D-50K EV-PLANAR-PRO-480W-60105D-50K-DA | 81350 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
| CCT | 5000 K |
Driver
| Driver Type | |
|---|---|
| EV-PLANAR-PRO-100W-30105D-50K EV-PLANAR-PRO-100W-60105D-50K EV-PLANAR-PRO-150W-30105D-50K EV-PLANAR-PRO-150W-60105D-50K EV-PLANAR-PRO-200W-30105D-50K EV-PLANAR-PRO-200W-60105D-50K EV-PLANAR-PRO-240W-30105D-50K EV-PLANAR-PRO-240W-60105D-50K EV-PLANAR-PRO-300W- 90D-50K EV-PLANAR-PRO-300W-30105D-50K EV-PLANAR-PRO-300W-60105D-50K EV-PLANAR-PRO-400W-30105D-50K EV-PLANAR-PRO-400W-60105D-50K EV-PLANAR-PRO-480W-30105D-50K EV-PLANAR-PRO-480W-60105D-50K | 1-10V dimmable |
| EV-PLANAR-PRO-100W-30105D-50K-DA EV-PLANAR-PRO-100W-60105D-50K-DA EV-PLANAR-PRO-150W-30105D-50K-DA EV-PLANAR-PRO-150W-60105D-50K-DA EV-PLANAR-PRO-200W-30105D-50K-DA EV-PLANAR-PRO-200W-60105D-50K-DA EV-PLANAR-PRO-240W-30105D-50K-DA EV-PLANAR-PRO-240W-60105D-50K-DA EV-PLANAR-PRO-300W- 90D-50K-DA EV-PLANAR-PRO-300W-30105D-50K-DA EV-PLANAR-PRO-300W-60105D-50K-DA EV-PLANAR-PRO-400W-30105D-50K-DA EV-PLANAR-PRO-400W-60105D-50K-DA EV-PLANAR-PRO-480W-30105D-50K-DA EV-PLANAR-PRO-480W-60105D-50K-DA | DALI DT6 LED Driver |
| DALI DT6 ~ Includes DALI-2 Driver with full support for DT6 allowing flicker free dimming with compliant DALI-2 Application controllers. | |
| Driver Included | Yes |
| Dimmable | Yes |
| Flex & Plug or Lead Length | 1500 mm |
| Wiring Type | Re-wireable Flex & Plug (3 pin) |
| Driver Mode | Constant Current |
Compliance
| Product Design Life | 12 years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Daily Use | 20 hrs |
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
| Standards |
|
Warranty
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
|---|---|
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
| Commercial Use Warranty | 5 RTB (Total 5 Years) |
| Warranty Operating Hours | 30000 hrs |
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
