Duo Core IP65 Emergency Luminaire

  • Enhanced luminosity: Offers a superior emergency output of 2 x 215lm, ensuring brighter and more effective lighting
  • Compact design: Sleek and space-saving, making it ideal for various installation environments
  • Cost-efficient: Provides high-quality performance at an economical price
  • 6 years design life: Reliable for up to 6 years in maximum ambient conditions
  • Efficient energy consumption: Optimised for minimal energy usage without compromising on brightness and functionality
  • Versatile adjustability: Adjust vertically (Up/Down) and horizontally (Left/Right) for optimal lighting
  • Robust protection: Rated at IP65 for water & dust resistance and IK10 impact resistance for durability
  • Convenient installation: Supplied with a 1.2m flex and plug for easy setup and integration
SKU: Duo Core Category: Tags: ,

Mechanical

AdjustabilityAdjustable
Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Fitting Colour

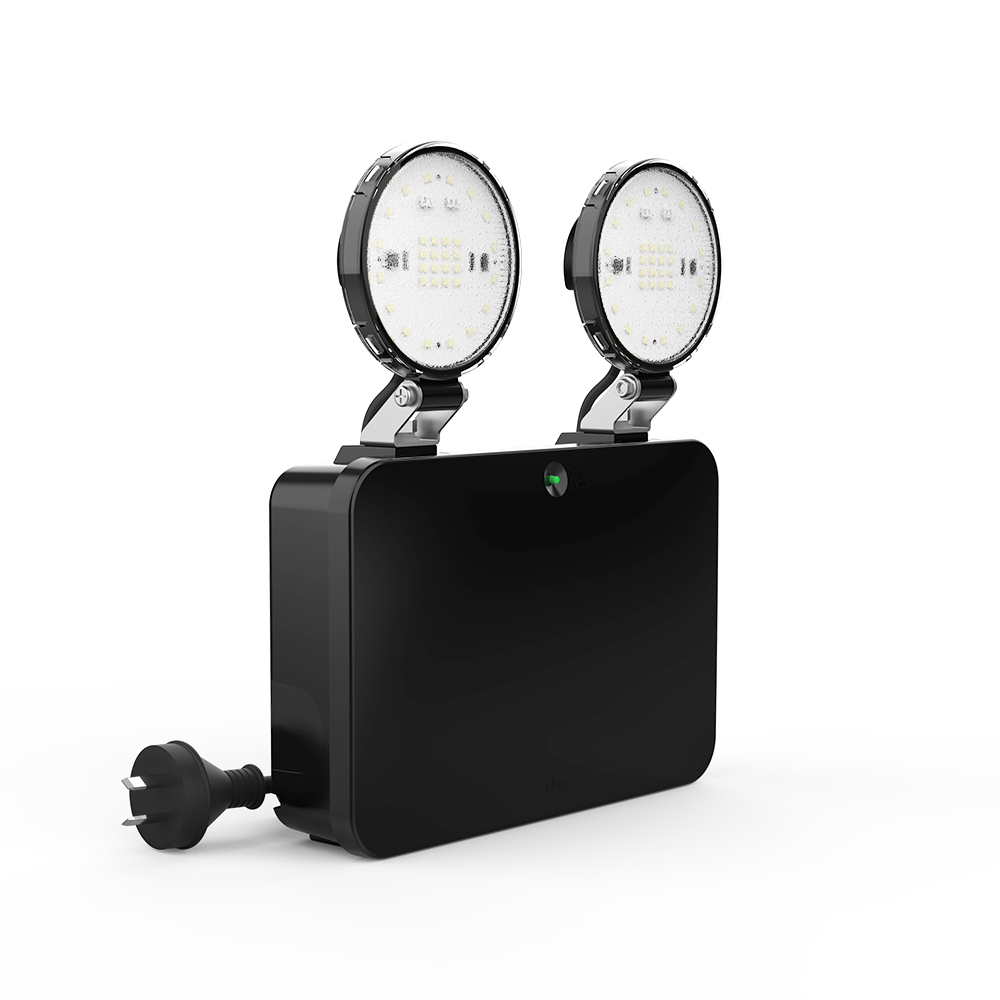

EV-DUO-CORE-BBlack

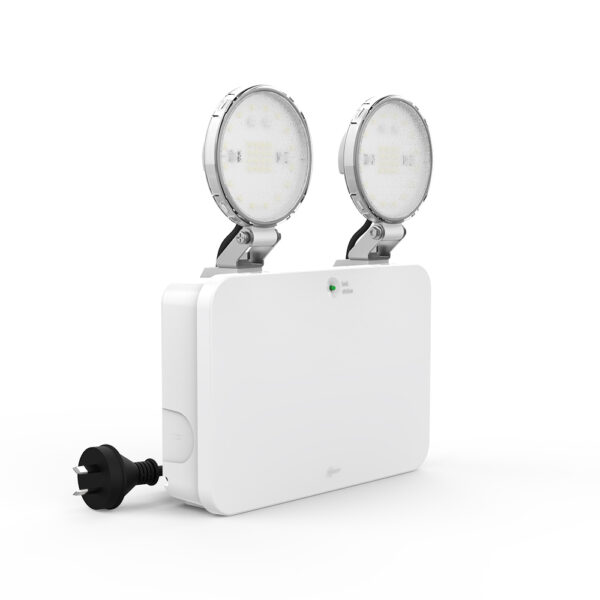

EV-DUO-COREWhite
IK RatingIK10
Installation TypeSurface mount
IP RatingIP65

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage2.5 W
Standby Power1 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C

Driver

Driver IncludedYes
Driver TypeFixed output
Flex & Plug or Lead Length1200 mm
Wiring TypeRe-wireable Flex & Plug (2 pin)

Emergency (EM suffix)

Replacement Battery Code18096
Emergency Duration90 mins
Emergency Lumen Output430 lm
Emergency ModeNon-Maintained
Emergency Output Power2700 mW

Compliance

Product Design Life6 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty5 RTB (Total 5 Years)
Product Height50 mm
Product Length228 mm
Product Width270 mm
EV/DUO/CORE
Ordering codeItem codeDescriptionAvailability
12144EV-DUO-COREDuo Core Emergency Weatherproof Luminaire
12145EV-DUO-CORE-BDuo Core Emergency Weatherproof Luminaire - Black
