Razor SM Pro

$0.00

Razor Professional Surface Mounted Emergency Exit, 24m

SKU: Razor SM Pro Category: Tag:

Mechanical

Body MaterialPolycarbonate
Diffuser MaterialPMMA
Fitting Colour
EV-RAZOR-SM-PRO-24M-B-DABlack
EV-RAZOR-SM-PRO-24M-DAWhite
Installation TypeSurface mount
IP RatingIP20

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage
EV-RAZOR-SM-PRO-24M-B-DA2 W
EV-RAZOR-SM-PRO-24M-DA2.6 W
Standby Power
EV-RAZOR-SM-PRO-24M-B-DA1.7 W
EV-RAZOR-SM-PRO-24M-DA1.9 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C

Driver

Driver IncludedYes
Integrated DriverYes
Driver TypeDALI DT1 Emergency
Wiring TypeRe-wireable terminal block (5 pin)

Emergency (EM suffix)

Replacement Battery Code13845
Emergency ControlDALI Monitored (DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
Decal Size300 x 150 mm
Emergency Duration90 mins
Emergency Light Source Life
EV-RAZOR-SM-PRO-24M-DA34Y/04M
EV-RAZOR-SM-PRO-24M-B-DA51Y/01M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.
Emergency ModeMaintained
Emergency Output Power
EV-RAZOR-SM-PRO-24M-B-DA350 mW
EV-RAZOR-SM-PRO-24M-DA650 mW
Viewing Distance24 m
Emergency ClassificationC0:E6.3, C90:E10

Compliance

Product Design Life12 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty8 RTB (Total 8 Years)
Product Height203 mm
Product Length315 mm
Product Width52 mm
DALI DT1 Emergency
Ordering codeItem codeDescriptionAvailability

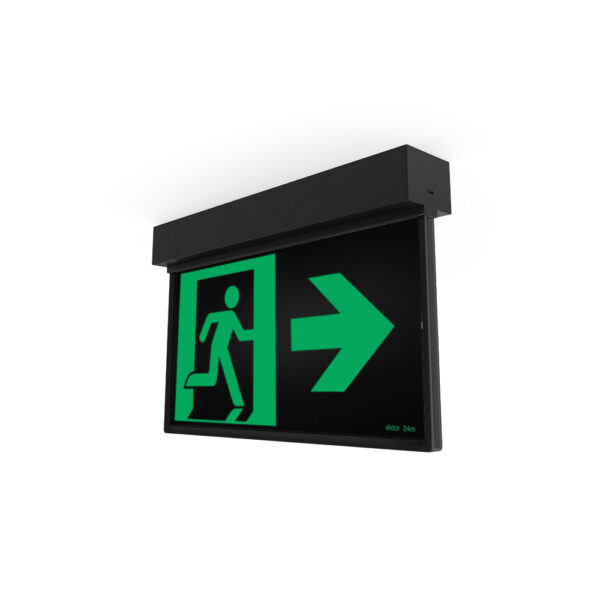

12296EV-RAZOR-SM-PRO-24M-B-DARazor Pro Surface-mount Exit light - 24M - Black

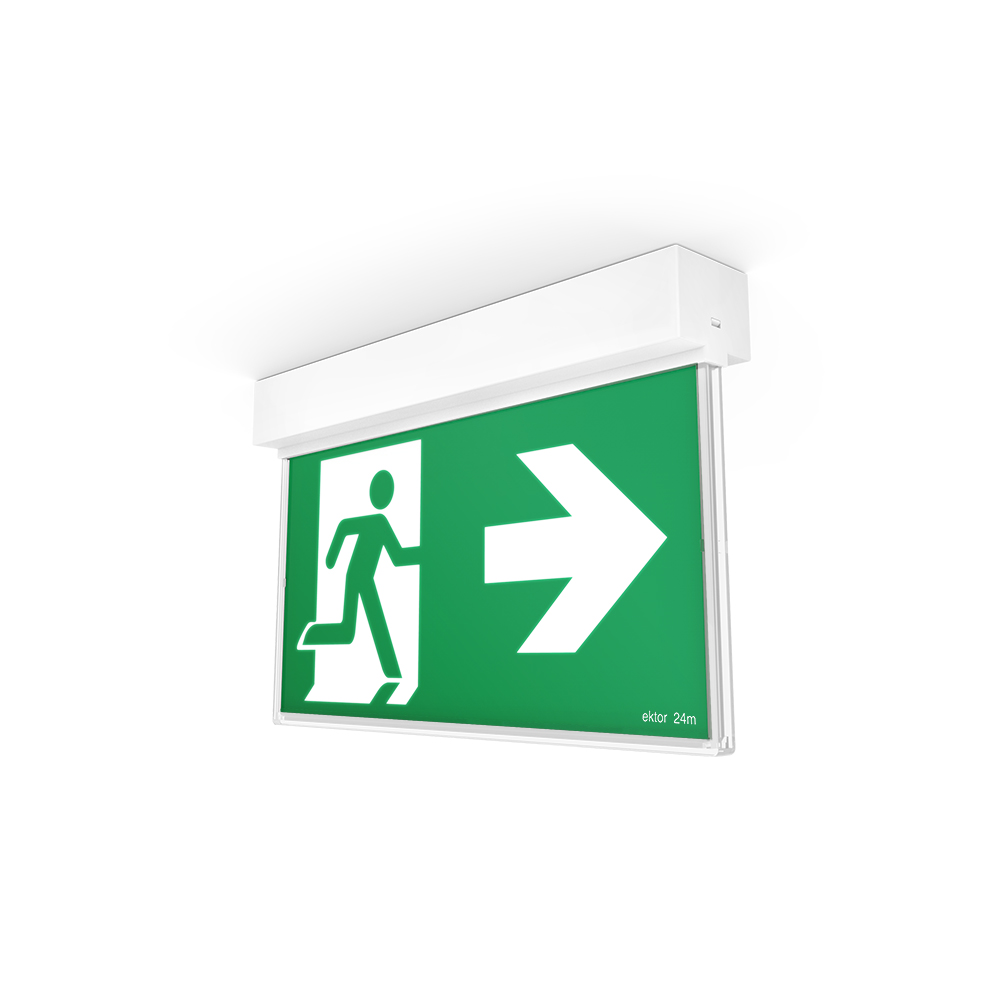

12295EV-RAZOR-SM-PRO-24M-DARazor Pro Surface-mount Exit light - 24M
Wireless (IEC62386-104) with DT1
Ordering codeItem codeDescriptionAvailability
12298EV-RAZOR-SM-PRO-24M-B-LKEktor Lynk Razor Surface Mount Emergency Exit - PRo W/Wireless - Black Live Date:2099-01-01
12297EV-RAZOR-SM-PRO-24M-LKEktor Lynk Razor Surface Mount Emergency Exit - Pro W/Wireless Live Date:2099-01-01

*Auto generated datasheet (beta)
Ordering codeItem codeDescriptionAvailability
02991EV-RAZOR-24M-DIFFRazor 24M- replacement diffuser blade to suit 02686- including RM Decal pack
02992EV-RAZOR-24M-DIFF-BRazor 24M-replacement diffuser blade to suit 02687-including RM Decal pack-Black
02987EV-RAZOR-24M-DPRazor 24M decal pack to suit SKU# 02686 & BOXIT-SLIM SKU #15053
02988EV-RAZOR-24M-DP-BRazor 24m decal pack - Black to suit 02687
15196EV-RAZOR-SM-CORE-WBWall Bracket to suit EV-RAZOR-SM-CORE - White
