Razor Flex

$0.00

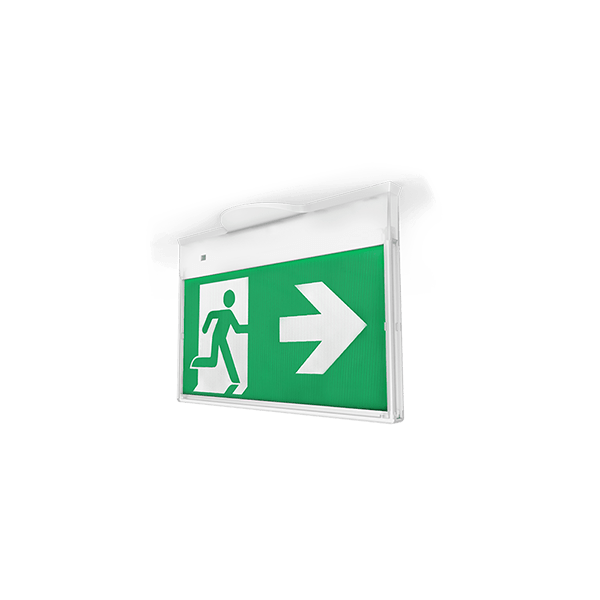

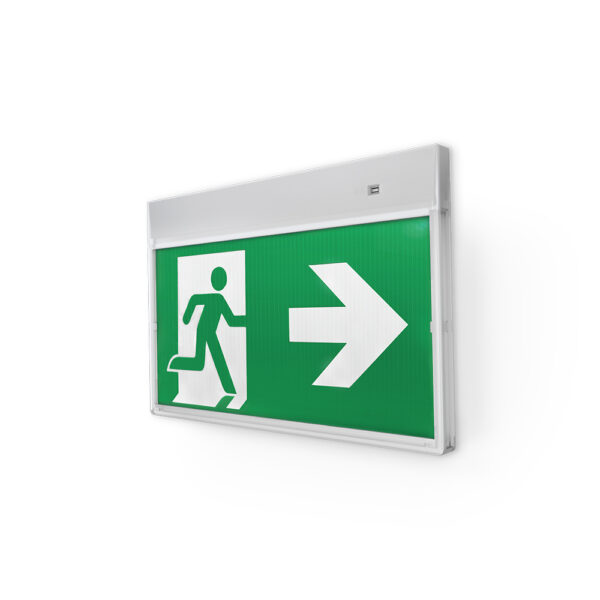

Razor Professional Flex Recessed or Surface Mount Emergency Exit, 24m

  • Single and double-sided decals
  • Soft-start charger to reduce building load
  • Surface mounted exit sign with remote driver
  • Wall or ceiling mount
  • Fast emergency switch-over (<0.5s) for high-task areas
  • Long life electronics
  • 12 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • DALI (IEC 62386-202) DT1
  • Self test (AS2293/IEC62034)
  • Ektor wired monitored system
  • Fully compliant (AS/NZS 2293)
SKU: Razor Flex Category: Tags: , ,

Mechanical

Body MaterialPolycarbonate
Diffuser MaterialPMMA
Fitting ColourFrosted
Installation TypeSurface mount
IP RatingIP20

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage3.7 W
Standby Power1.7 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C

Driver

DimmableNo
Driver IncludedYes
Integrated DriverYes
Driver TypeDALI DT1 Emergency
Wiring TypeRe-wireable terminal block (5 pin)

Emergency (EM suffix)

Replacement Battery Code01302
Emergency ClassificationC0:D5, C90:E3.2
Emergency ControlDALI Monitored (DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
Decal Size300 x 150 mm
Emergency Duration90 mins
Emergency Light Source Life22Y/00M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.
Emergency ModeMaintained
Emergency Output Power1000 mW
Viewing Distance24 m

Compliance

Product Design Life12 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty8 RTB (Total 8 Years)
EV/RAZOR/FLEX/PRO/24M/2/1
EV/RAZOR/FLEX/PRO/24M/3
EV/RAZOR/FLEX/PRO/2/6
Ordering codeItem codeDescriptionAvailability
17740EV-RAZOR-FLEX-PRO-24MRazor-Flex Pro slimline emergency edgelit Exit 24M

*Auto generated datasheet (beta)
Ordering codeItem codeDescriptionAvailability
02987EV-RAZOR-24M-DPRazor 24M decal pack to suit SKU# 02686 & BOXIT-SLIM SKU #15053
