Mercury Core

$0.00

Mercury Core Emergency Exit, 24m

  • Single and double sided decals
  • Fully compliant (AS/NZS 2293)
  • IP65 Weatherproof Case available but not included
  • Wall, ceiling, chain and rod mounting (with Rod Mount Kit)
  • Long life electronics
  • 6 Years Design Life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
SKU: Mercury Core Category: Tags: , ,

Mechanical

Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Fitting Colour
EV-MERCURY-CORE-24M-BBlack
EV-MERCURY-BASICWhite
Installation TypeWall or Ceiling
IP RatingIP20

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage3.5 W
Standby Power2.2 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C

Driver

Driver IncludedYes
Integrated DriverYes
Wiring TypeRe-wireable terminal block (3 pin)

Emergency (EM suffix)

Replacement Battery Code01307
Emergency ClassificationC0:D5, C90:D5
Decal Size300 x 150 mm
Emergency Duration90 mins
Emergency ModeMaintained
Emergency Output Power1000 mW
Viewing Distance24 m

Compliance

Product Design Life6 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty5 RTB (Total 5 Years)
Product Height211 mm
Product Length326 mm
Product Width80 mm
EV/MERCURY/BASIC
EV/MERCURY/CORE/24M
Order codeItem codeDescriptionAvailability

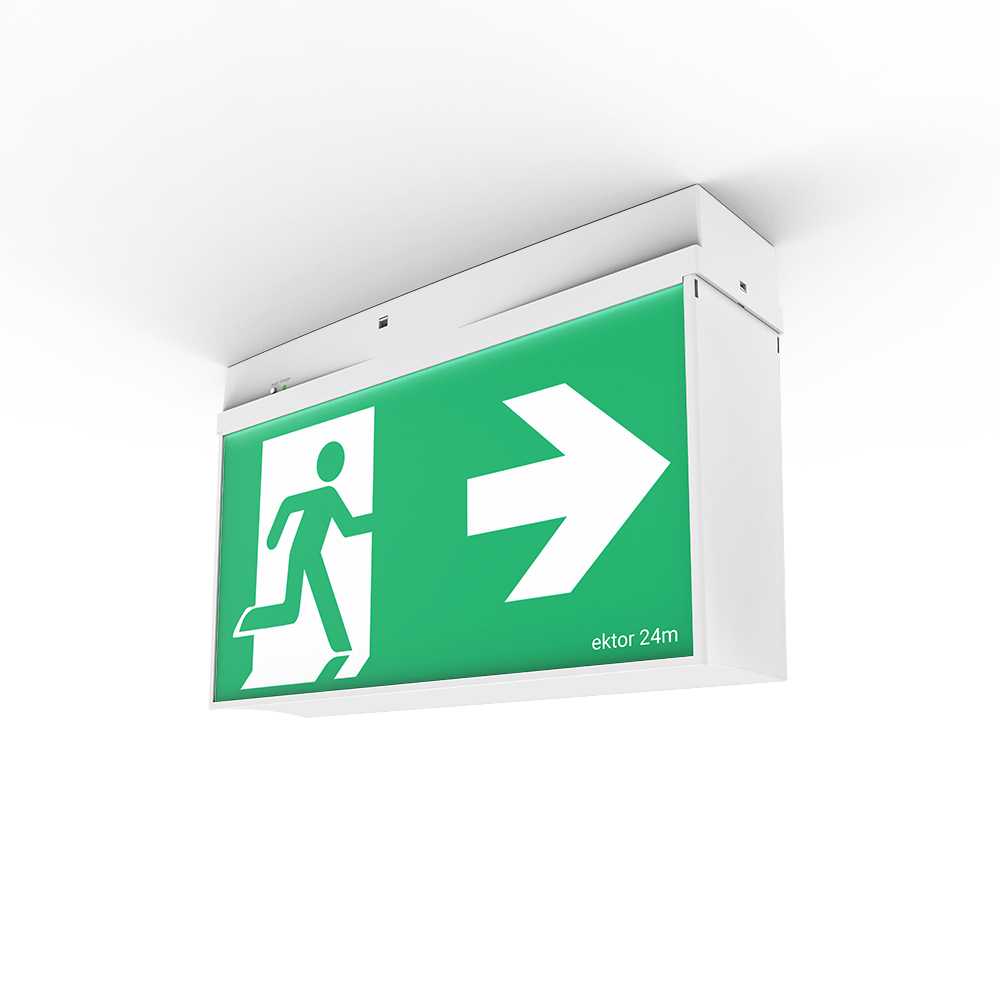

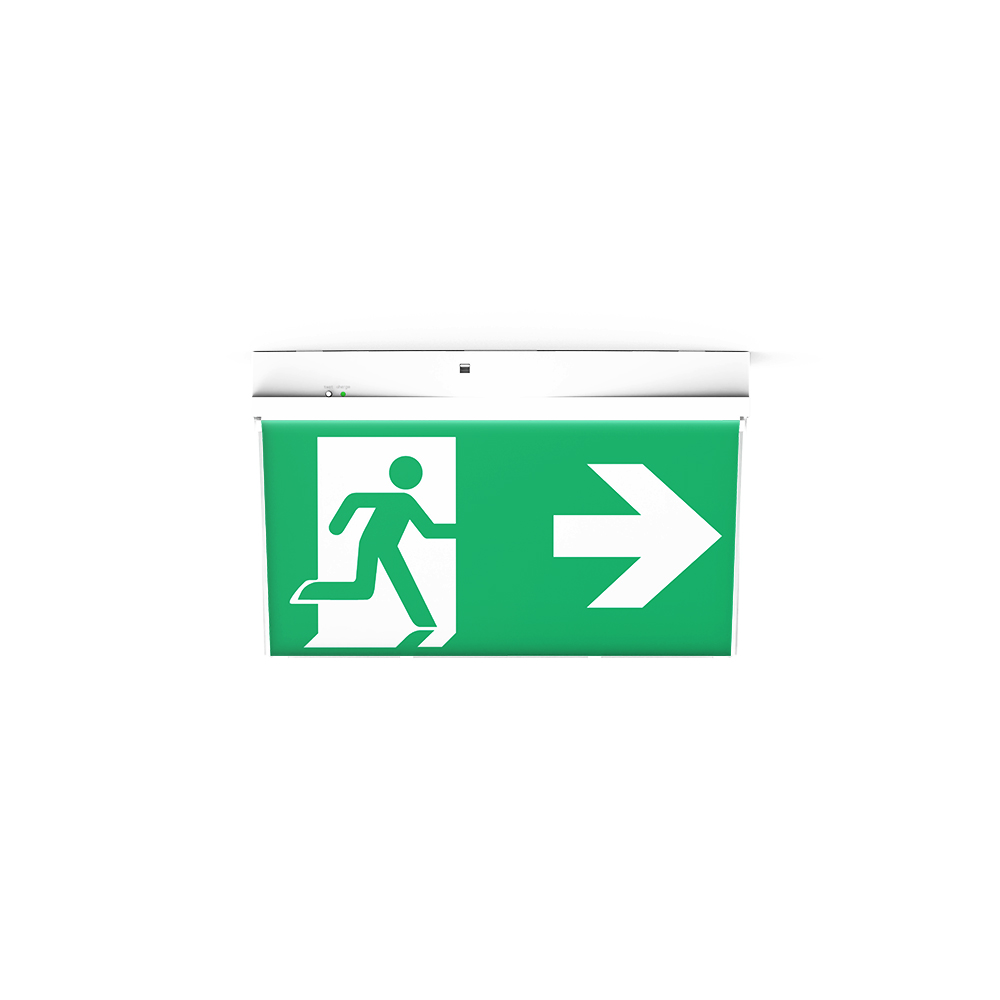

11258EV-MERCURY-BASICMercury Basic emergency Exit

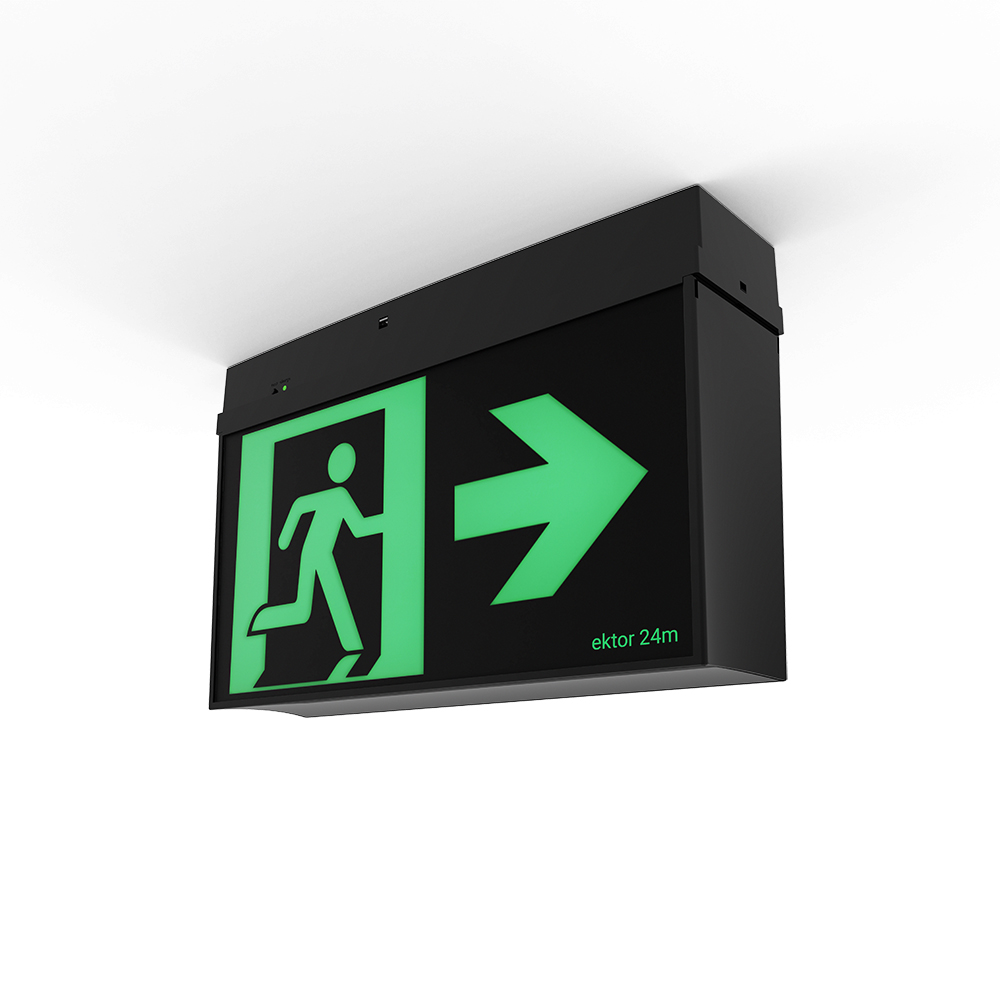

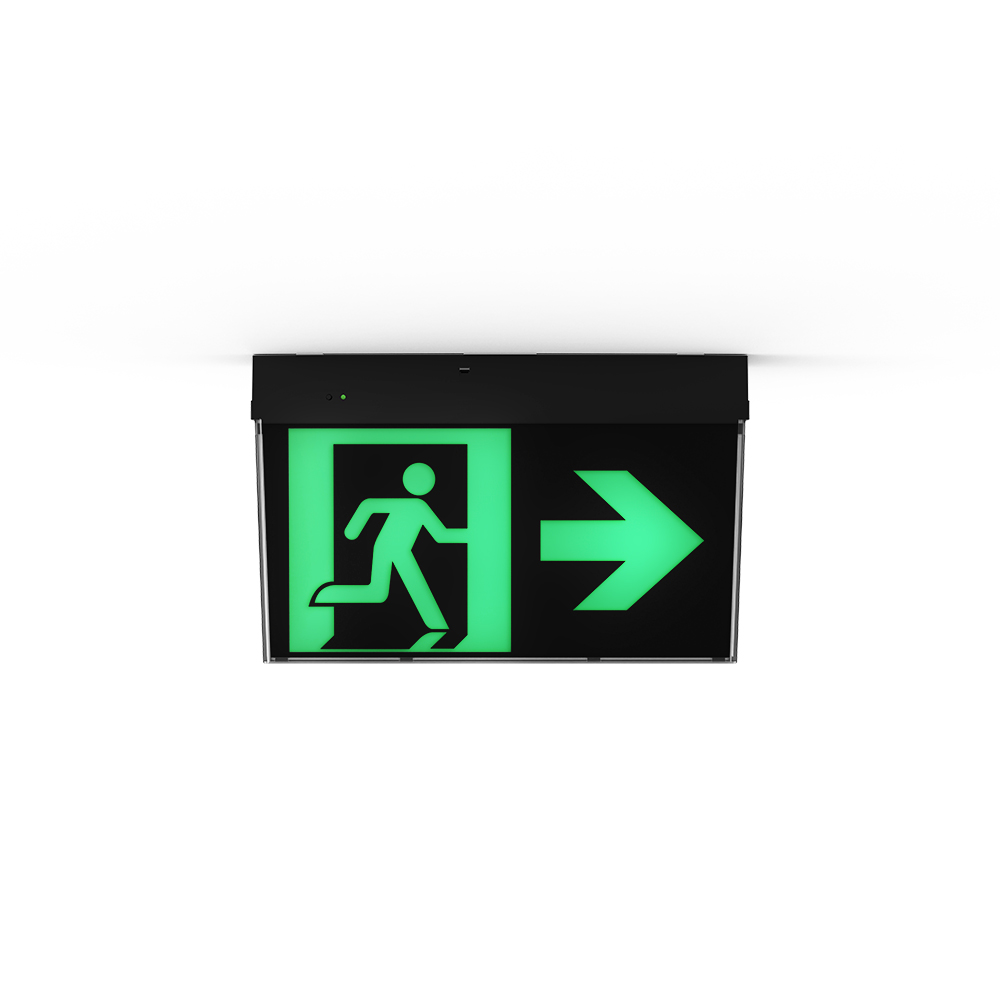

11802EV-MERCURY-CORE-24M-BMercury Core Emergency Exit 24m - Black

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
01307EV-1500mAh-3.2V-LiFePO4-LoomLiFePO4 Battery 3.2V 1500mAh
01915EV-CANTILEVERCantilever bracket to suit 3135- 3137- 11258 & 3131
11290EV-MERCURY-BASIC-DPMercury Basic decal pack
03922EV-MERCURY-CASEWeatherproof Case for Mercury
11220EV-MERCURY-CD-1Mercury custom decal to suit 11258 and 3135 - 1pc
11216EV-MERCURY-CD-2Mercury Clear Decal to suit 11258 and 3135 - 2pk
12934EV-MERCURY-DP-USDMercury Basic Decal Pack - Upside down white & green 3 x decals (left- right & straight)
03911EV-MERCURY-WIREGUARD-CEILINGCeiling mounted only Wire guard
05301EV-MERCURY-WIREGUARD-WALLWall mounted only Wire guard
02004EV-RODMOUNT-BLKRodmount Brackets only for roof and luminaire body - Black (Rod size -25mm)
01990EV-RODMOUNT-WHTRodmount Brackets only for roof and luminaire body - White (Rod size 25mm)
