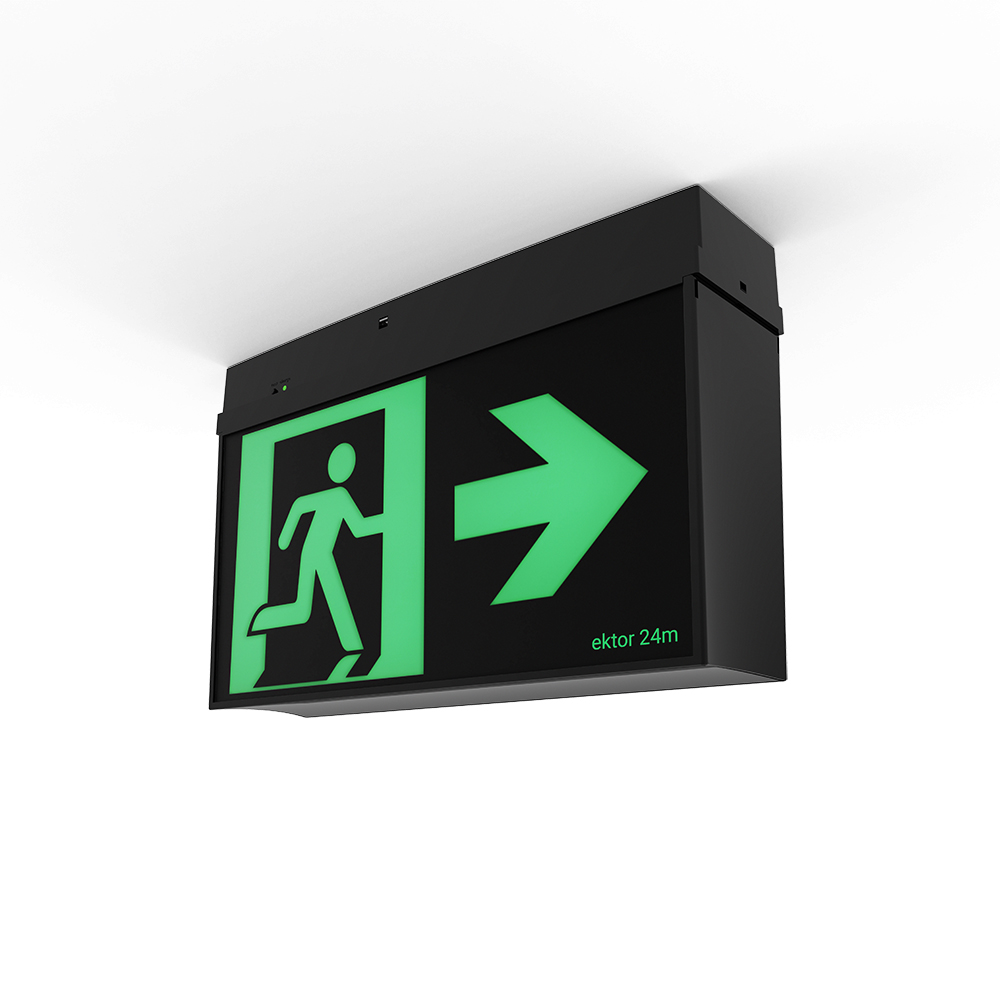

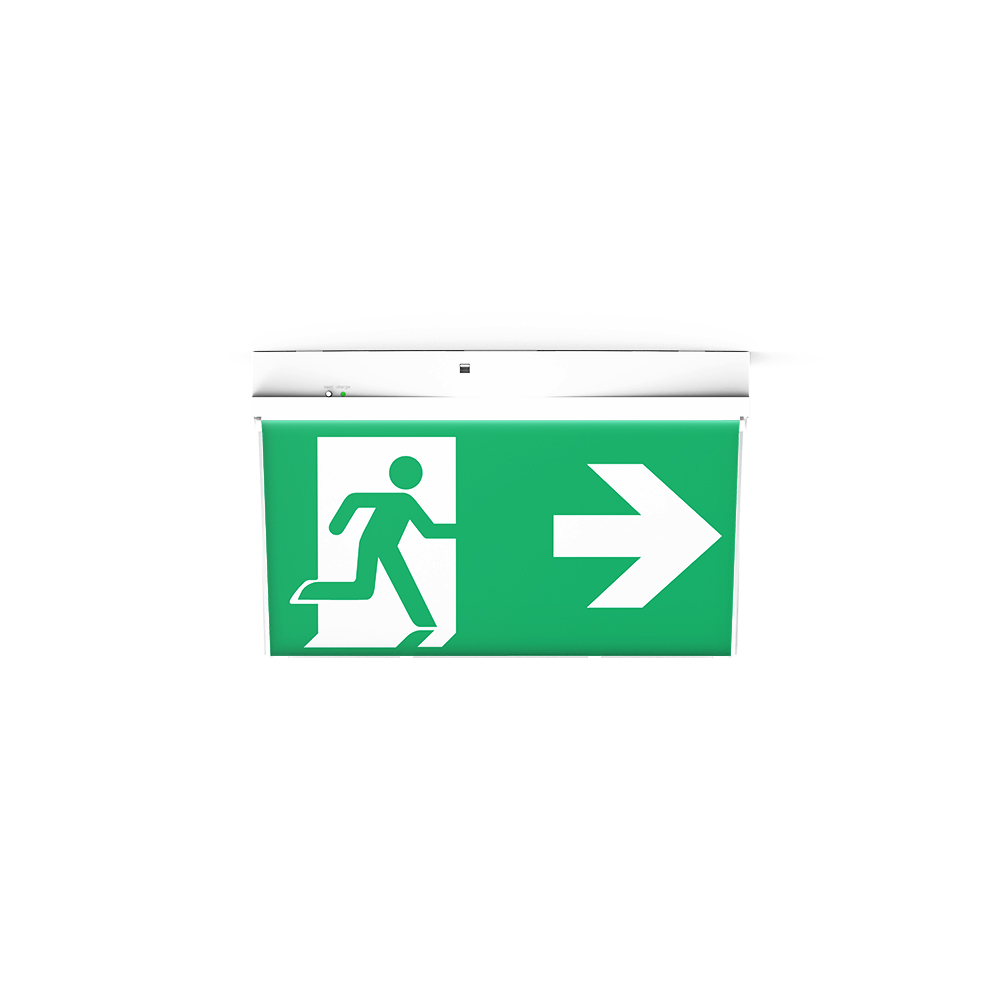

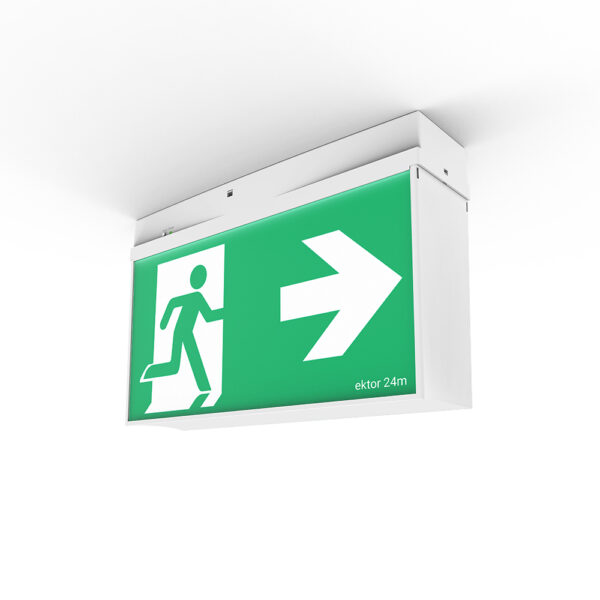

Mercury Advanced Emergency Exit, 24m

  • Single and double sided decals
  • Soft-start charger to reduce building load
  • Available in low illumination area black model
  • IP65 Weatherproof Case available but not included
  • Fast emergency switch-over (<0.5s) for high-task areas
  • Wall, ceiling, chain and rod mounting (with Rod Mount Kit)
  • Long life electronics
  • 8 years design life at max. ambient
  • Standalone (SPU)
  • Self test (AS2293/ IEC62034
  • IEC62386 over IEC62386-104
  • Ektor wired monitored system
  • Wireless monitoring via Ektor Lynk
SKU: Mercury Adv Category: Tags: ,

Mechanical

Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Fitting Colour
EV-MERCURY-ADV-24M-B-DA
EV-MERCURY-ADV-24M-B-LK		Black
EV-MERCURY-ADV-24M-DA
EV-MERCURY-ADV-24M-LK		White
Installation TypeWall or Ceiling
IP RatingIP20

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage2.5 W
Standby Power1.9 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C

Colour temperature

LED Wattage0.6 W

Driver

DimmableNo
Driver IncludedYes
Integrated DriverYes
Driver Type
EV-MERCURY-ADV-24M-B-DA
EV-MERCURY-ADV-24M-DA		DALI DT1 Emergency
EV-MERCURY-ADV-24M-B-LK
EV-MERCURY-ADV-24M-LK		Wireless (IEC62386-104) with DT1
Wiring Type
EV-MERCURY-ADV-24M-B-LK
EV-MERCURY-ADV-24M-LK		Re-wireable terminal block (3 pin)
EV-MERCURY-ADV-24M-B-DA
EV-MERCURY-ADV-24M-DA		Re-wireable terminal block (5 pin)

Emergency (EM suffix)

Replacement Battery Code13972
Emergency Control
EV-MERCURY-ADV-24M-B-DA
EV-MERCURY-ADV-24M-DA		DALI Monitored (DT1)
EV-MERCURY-ADV-24M-B-LK
EV-MERCURY-ADV-24M-LK		IEC62386-104 (Wireless DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202.
Decal Size300 x 150 mm
Emergency Duration90 mins
Emergency Light Source Life
EV-MERCURY-ADV-24M-B-DA
EV-MERCURY-ADV-24M-B-LK		26Y/07M
EV-MERCURY-ADV-24M-DA
EV-MERCURY-ADV-24M-LK		56Y/06M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.
Emergency ModeMaintained
Emergency Output Power600 mW
Viewing Distance24 m
Emergency ClassificationC0:D6.3 C90:D6.3

Compliance

Product Design Life8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty6 RTB (Total 6 Years)
Product Height211 mm
Product Length326 mm
Product Width80 mm
EV/MERCURY/ADV
DALI DT1 Emergency
Ordering codeItem codeDescriptionAvailability
12300EV-MERCURY-ADV-24M-B-DAMercury Advanced Emergency Exit 24M - DALI - Black
12281EV-MERCURY-ADV-24M-DAMercury Advanced Emergency Exit 24M - DALI
Wireless (IEC62386-104) with DT1
Ordering codeItem codeDescriptionAvailability
12301EV-MERCURY-ADV-24M-B-LKEktor Lynk Mercury Emergency Exit 24M - Black - Advanced W/Wireless
12282EV-MERCURY-ADV-24M-LKEktor Lynk Mercury Emergency Exit 24M - Advanced W/Wireless

Instruction Manual

Datasheet

Compliance


*Auto generated datasheet (beta)
Ordering codeItem codeDescriptionAvailability
13972EV-1500mAh-3.2V-LiFePO4LiFePO4 Battery 3.2V 1500mAh
01915EV-CANTILEVERCantilever bracket to suit 3135- 3137- 11258 & 3131
11290EV-MERCURY-BASIC-DPMercury Basic decal pack
03922EV-MERCURY-CASEWeatherproof Case for Mercury
11220EV-MERCURY-CD-1Mercury custom decal to suit 11258 and 3135 - 1pc
11216EV-MERCURY-CD-2Mercury Clear Decal to suit 11258 and 3135 - 2pk
12934EV-MERCURY-DP-USDMercury Basic Decal Pack - Upside down white & green 3 x decals (left- right & straight)
11449EV-MERCURY-VANDAL-SMMercury vandal resistant case - surface mount
03911EV-MERCURY-WIREGUARD-CEILINGCeiling mounted only Wire guard
05301EV-MERCURY-WIREGUARD-WALLWall mounted only Wire guard
02004EV-RODMOUNT-BLKRodmount Brackets only for roof and luminaire body - Black (Rod size -25mm)
01990EV-RODMOUNT-WHTRodmount Brackets only for roof and luminaire body - White (Rod size 25mm)
