Ledfire Track Core

Core Track Mounted Emergency Luminaire

  • Non-maintained operation
  • Fully compliant (AS/NZS 2293)
  • Low energy consumption (avg. 0.5W)
  • Long life electronics
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
  • 6 years design life at max. ambient
  • Self test (AS2293/ IEC62034)
  • Fitted with a standard 4-wire track adapter
SKU: Ledfire Track Core Category: Tag:

Mechanical

IP RatingIP20
Fitting Colour

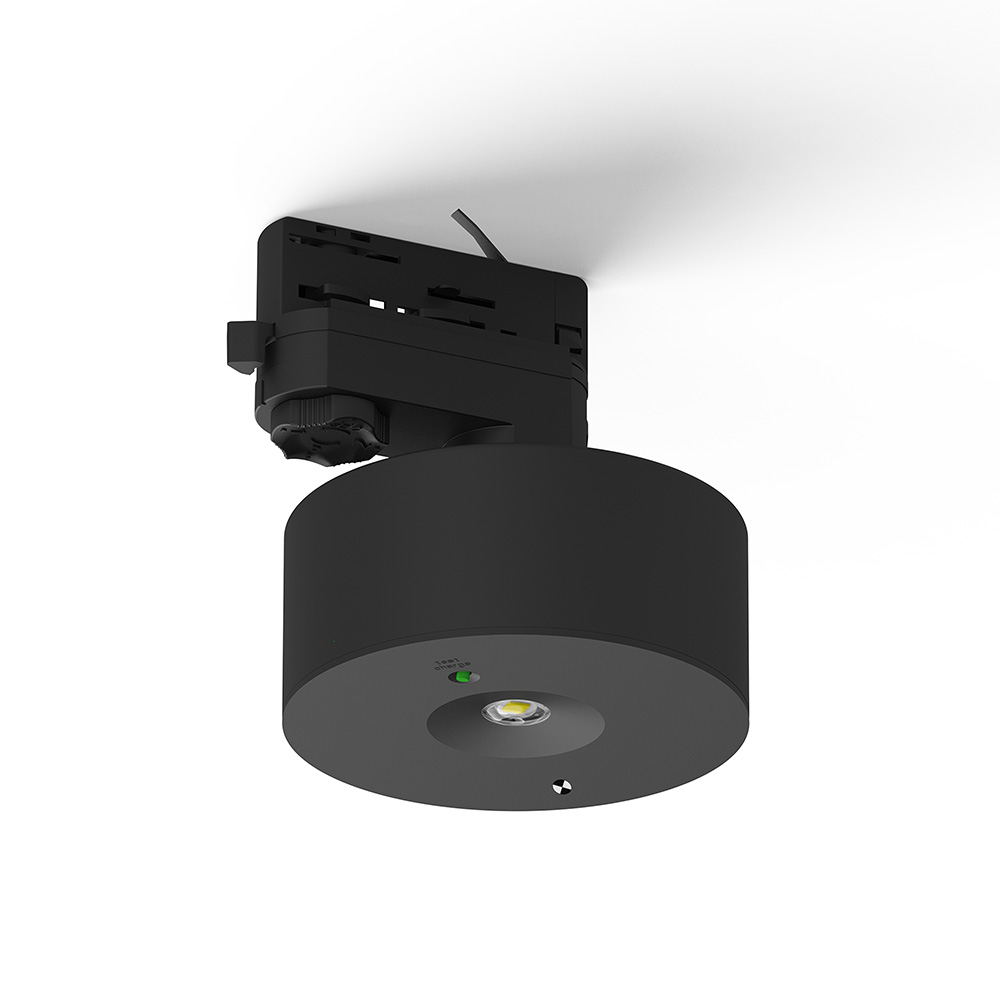

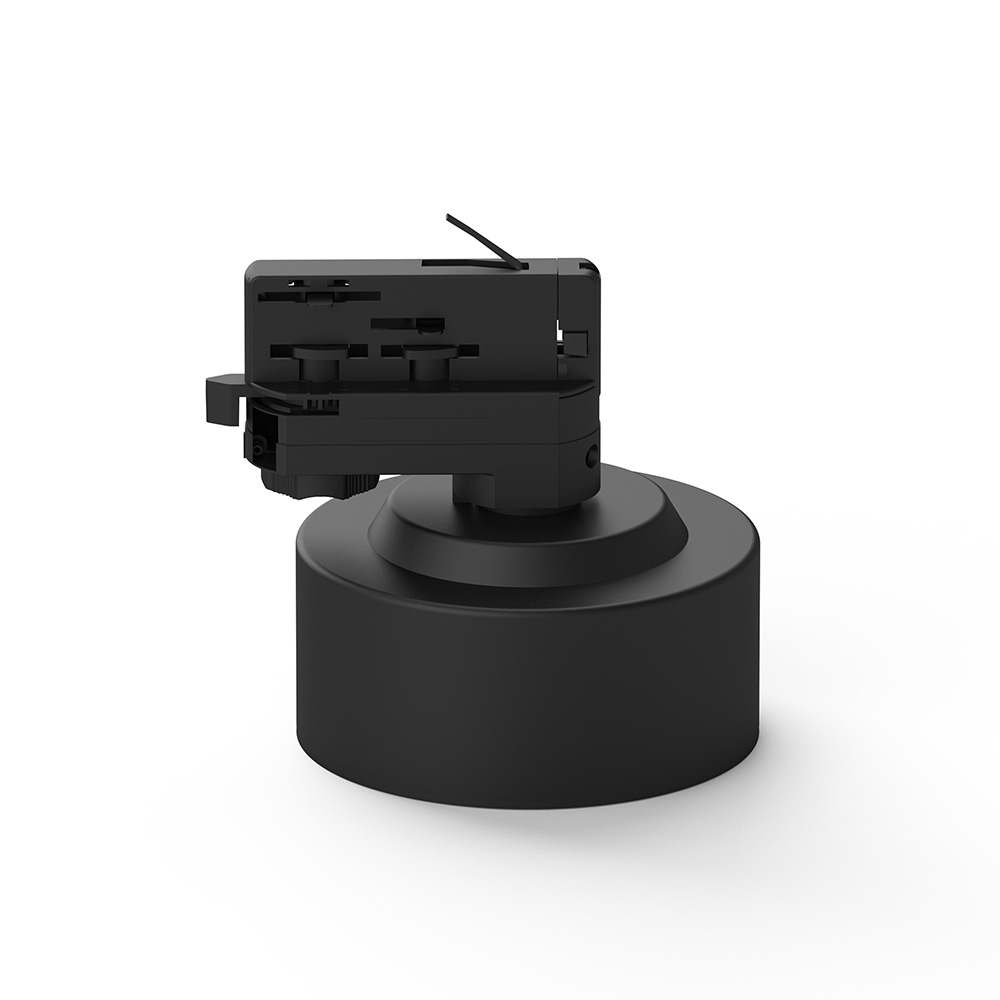

EV-LEDFIRE-TK-CORE-BBlack

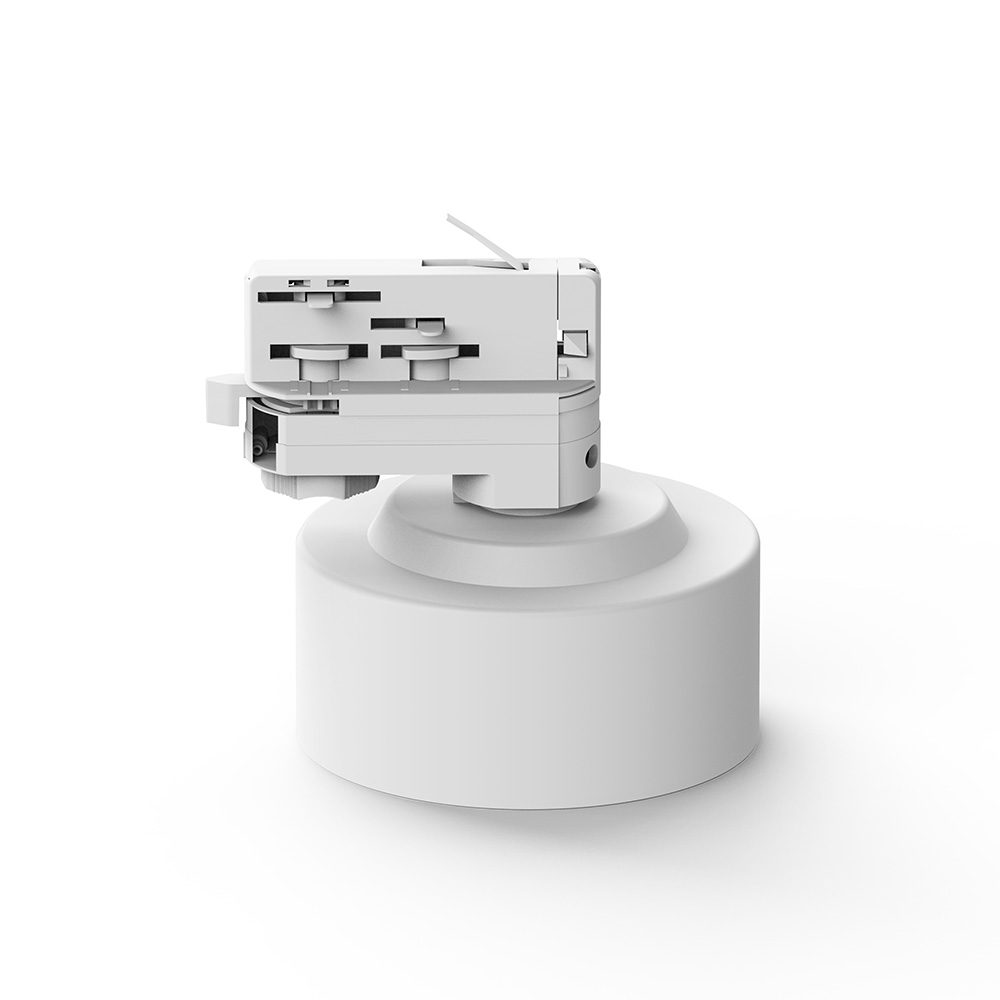

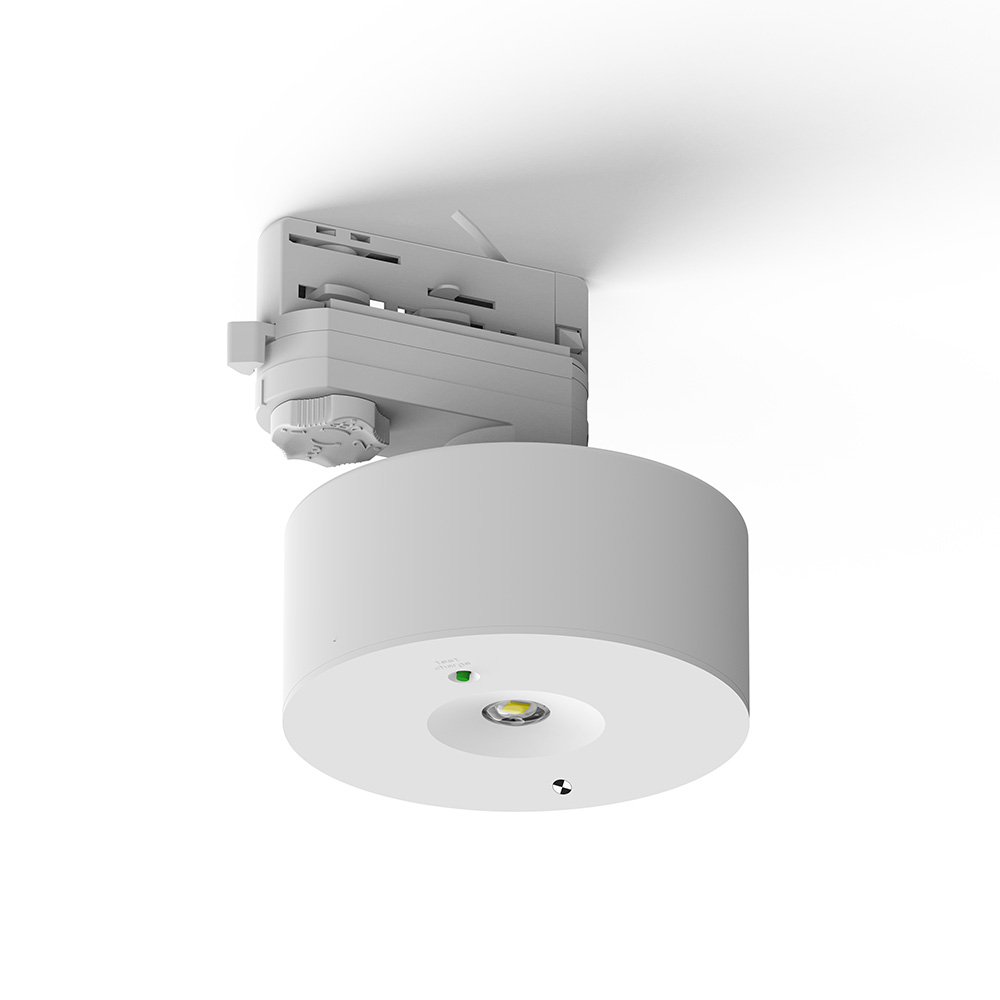

EV-LEDFIRE-TK-COREWhite
Body MaterialPolycarbonate
Installation TypeTrack mount

Electrical

Working Temp Range0 to 40 °C
Input Frequency50 Hz
Maximum Wattage1 W
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Standby Power0.5 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.

Driver

Driver TypeFixed output
Driver IncludedYes
Integrated DriverYes
DimmableNo

Emergency (EM suffix)

Emergency ModeNon-Maintained
Emergency ClassificationC0:D50, C90:D50
Emergency Output Power2250 mW
Replacement Battery Code01308
Emergency Duration90 mins
Emergency Lumen Output264 lm

Compliance

Product Design Life6 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.

Warranty

Commercial Use Warranty5 RTB (Total 5 Years)
Product Height112 mm
Product Diameter110 mm
EV/LEDFIRE/TK/CORE
EV/LEDFIRE/TK/CORE/B
Order codeItem codeDescriptionAvailability
12103EV-LEDFIRE-TK-CORELedfire Track Core - D40
12104EV-LEDFIRE-TK-CORE-BLedfire Track Core - D40 - Black

*Auto generated datasheet (beta)
