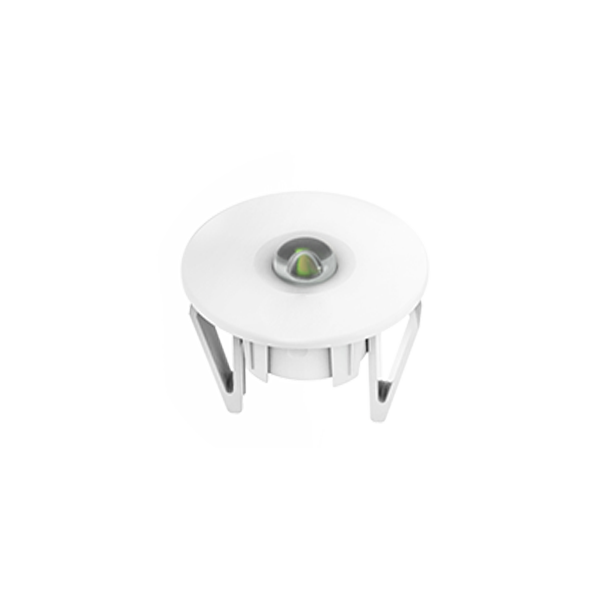

Ledfire Inbuilt


Emergency Kit for OEM

SKU: Ledfire Inbuilt Category: Tags: , ,


Body MaterialPolycarbonate
Fitting Colour
Installation TypeRecessed
IP RatingIP20


Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage2 W
Standby Power0.25 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C


Lamp/LED Current130 mA
Lamp/LED voltage9 V

Colour temperature

LED Wattage2.7 W


Driver IncludedYes
Driver TypeDALI DT1 Emergency
Wiring TypeRe-wireable terminal block (5 pin)

Emergency (EM suffix)

Replacement Battery Code01302
Emergency ClassificationC0:D32, C90:D32
Emergency ControlDALI Monitored (DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
Emergency Duration90 mins
Emergency Lumen Output208 lm
Emergency ModeNon-Maintained
Emergency Output Power1200 mW


Product Design Life12 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3


Commercial Use Warranty8 RTB (Total 8 Years)
Cutout44 mm
Product Diameter56 mm
Product Height48 mm
Order codeItem codeDescriptionAvailability

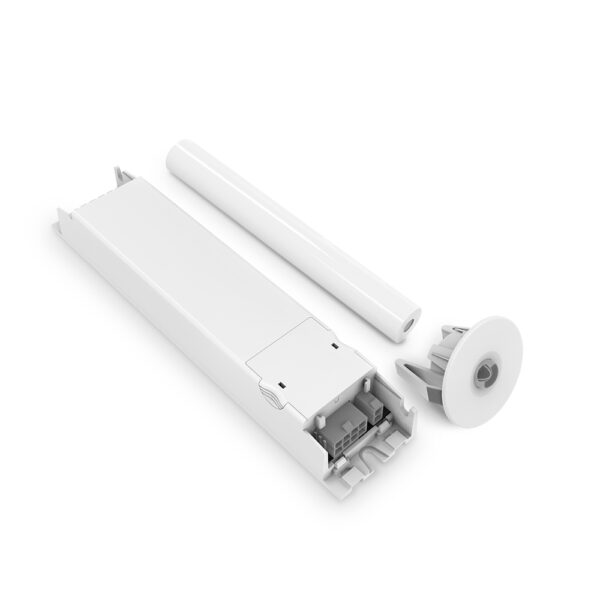

17570EV-LEDFIRE-OEM-PROLedfire Pro OEM Kit D32 White

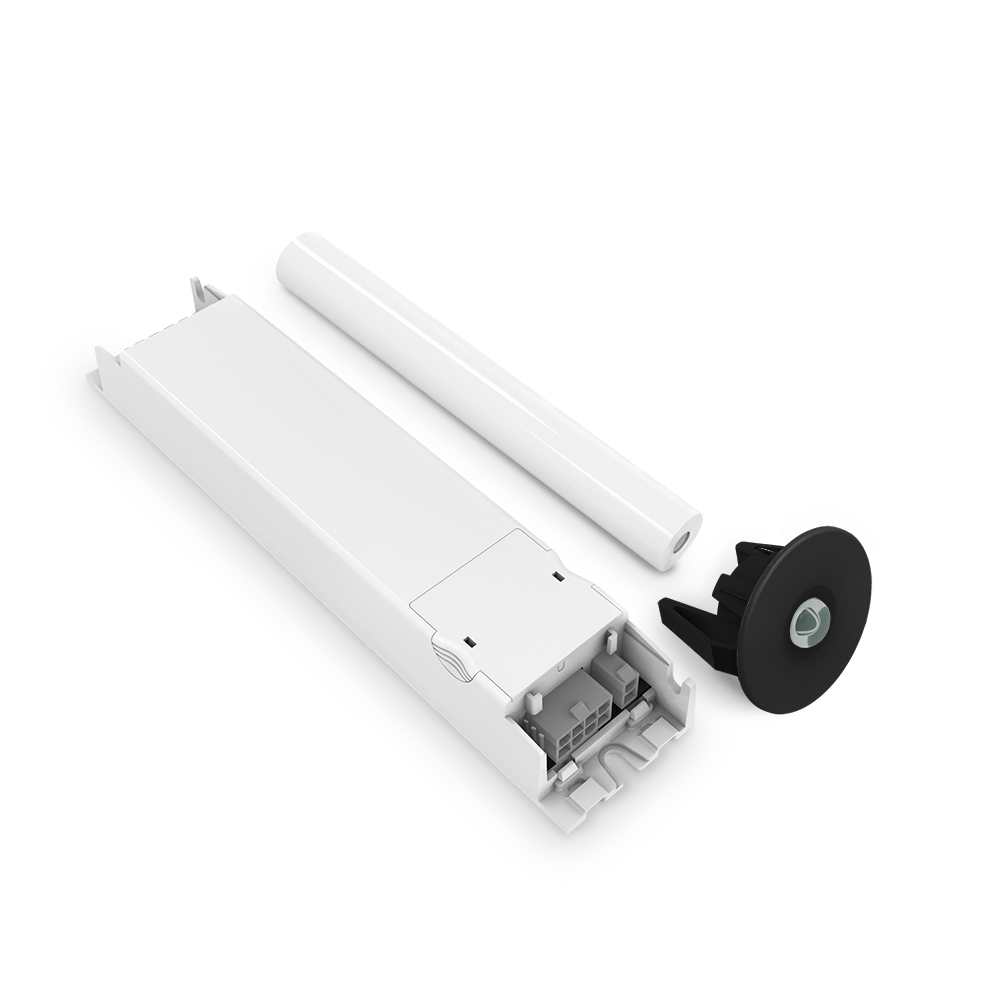

17571EV-LEDFIRE-OEM-PRO-BLedfire Pro OEM Kit D25 Black

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
01302EV-1500mAh-6.4V-LiFeP04LiFePO4 Battery 6.4V 1500mAh
17574EV-LEDFIRE-OEM-PRO-F&PLedfire Pro OEM Kit Flex&Plug with terminals and covers (F&P and covers only)
17568EV-LEDFIRE-OEM-PRO-JBLedfire OEM junction Box Mount - White
17569EV-LEDFIRE-OEM-PRO-SMLedfire OEM Surface Mount - White
