Boxit IP65 Professional

$0.00

  • Suitable for outdoor use in harsh weather conditions with an IP65 rating
  • Self-test monitoring systems (AS2293/IEC62034) to reduce building load
  • Long-life electronics with 12 years at max. ambient
  • High quality Lithium battery (LiFePO4) and smart charger
  • Comes with maintained and non-maintained operating modes
  • Prevent battery damage and reduce building load with a soft start charger
  • DALI monitored and standalone system

Selected Models

  • Designed to withstand wear and tear with impact rating of IK09 (front) and IK08 (side) rating
  • Designed to withstand wear and tear with impact rating of IK08
SKU: Boxit IP65 Professional Category: Tags: , ,

Mechanical

Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Fitting ColourGrey
IK Rating
EV-BOXIT-IP65-40M-PRO-DAIK08
EV-BOXIT-IP65-24M-PRO-DAIK09
Installation TypeSurface mount
IP RatingIP65

Electrical

Electrical RatingClass I
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Standby Power
EV-BOXIT-IP65-24M-PRO-DA2.2 W
EV-BOXIT-IP65-40M-PRO-DA2.5 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
System Max Wattage2.5 W
Working Temp Range0 to 40 °C
Maximum Wattage3.5 W

Driver

Driver TypeDALI DT1 Emergency
Wiring TypeRe-wireable terminal block (5 pin)

Emergency (EM suffix)

Replacement Battery Code
EV-BOXIT-IP65-24M-PRO-DA01302
EV-BOXIT-IP65-40M-PRO-DA1303
Emergency ClassificationCO:E2.5, C90:E2
Decal Size360x170 mm
Emergency Duration90 mins
Emergency Light Source Life24Y/10M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.
Emergency Lumen Output30 lm
Emergency ModeMaintained
Emergency Output Power
EV-BOXIT-IP65-24M-PRO-DA1200 mW
EV-BOXIT-IP65-40M-PRO-DA1600 mW
Viewing Distance
EV-BOXIT-IP65-24M-PRO-DA24 m
EV-BOXIT-IP65-40M-PRO-DA40 m

Compliance

Product Design Life12 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use24 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty8 RTB (Total 8 Years)
Item CodeProduct HeightProduct LengthProduct Width
EV-BOXIT-IP65-24M-PRO-DA95 mm370 mm190 mm
EV-BOXIT-IP65-40M-PRO-DA138 mm555 mm278 mm
EV/BOXIT/IP65/24M/PRO/DA
EV/BOXIT/IP65/40M/PRO/DA
Order codeItem codeDescriptionAvailability

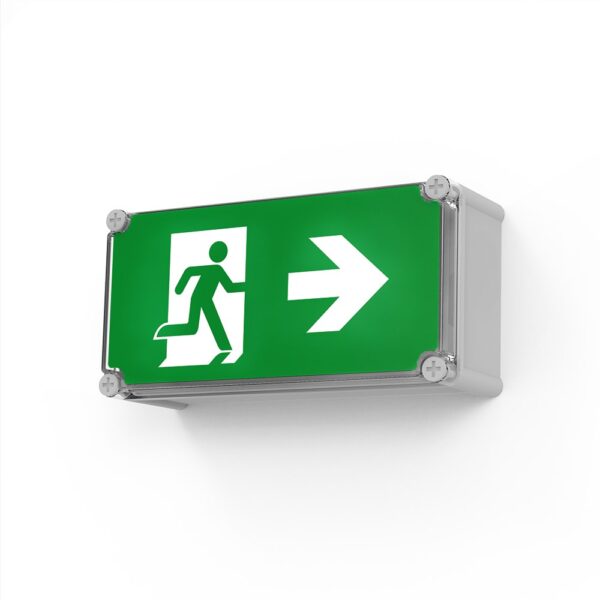

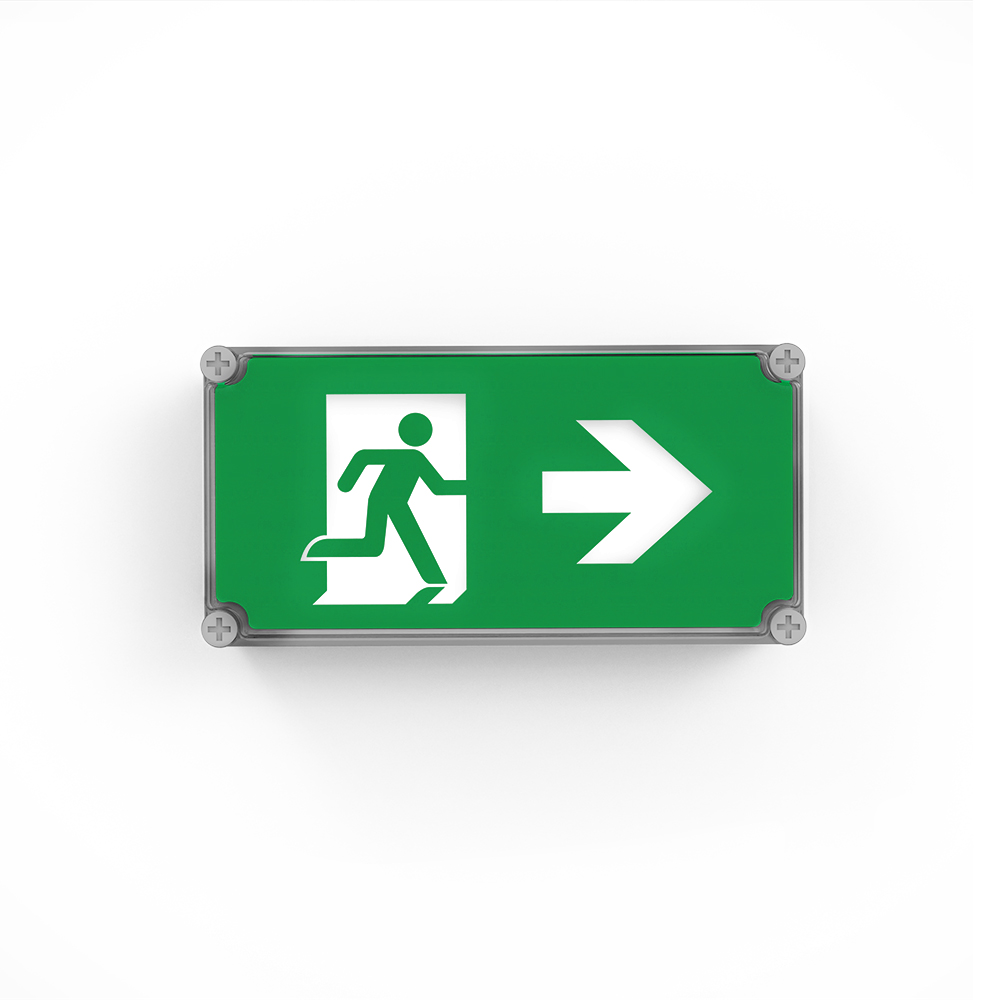

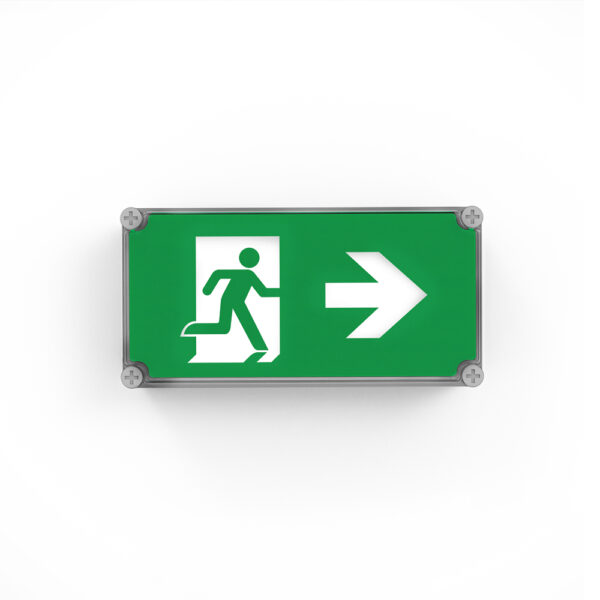

16606EV-BOXIT-IP65-24M-PRO-DABoxit Pro IP65 Wallmount Exit Light - 24M

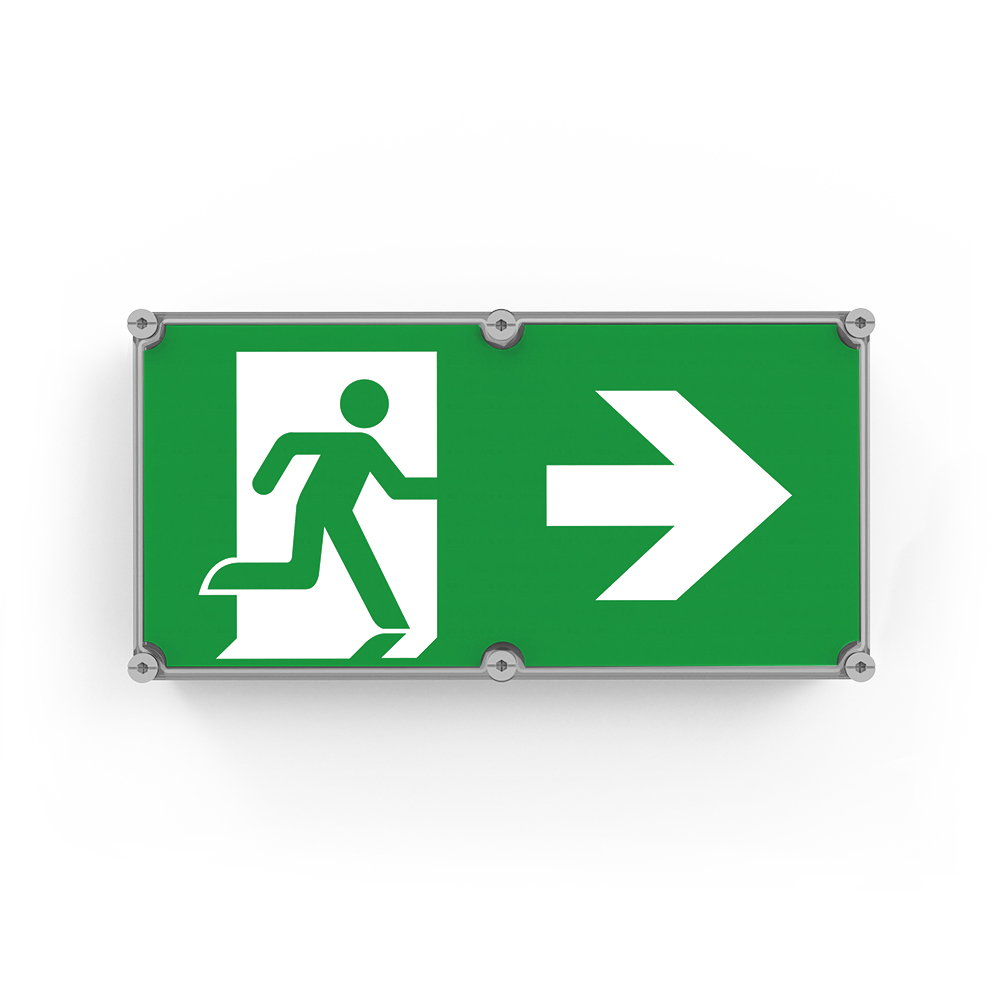

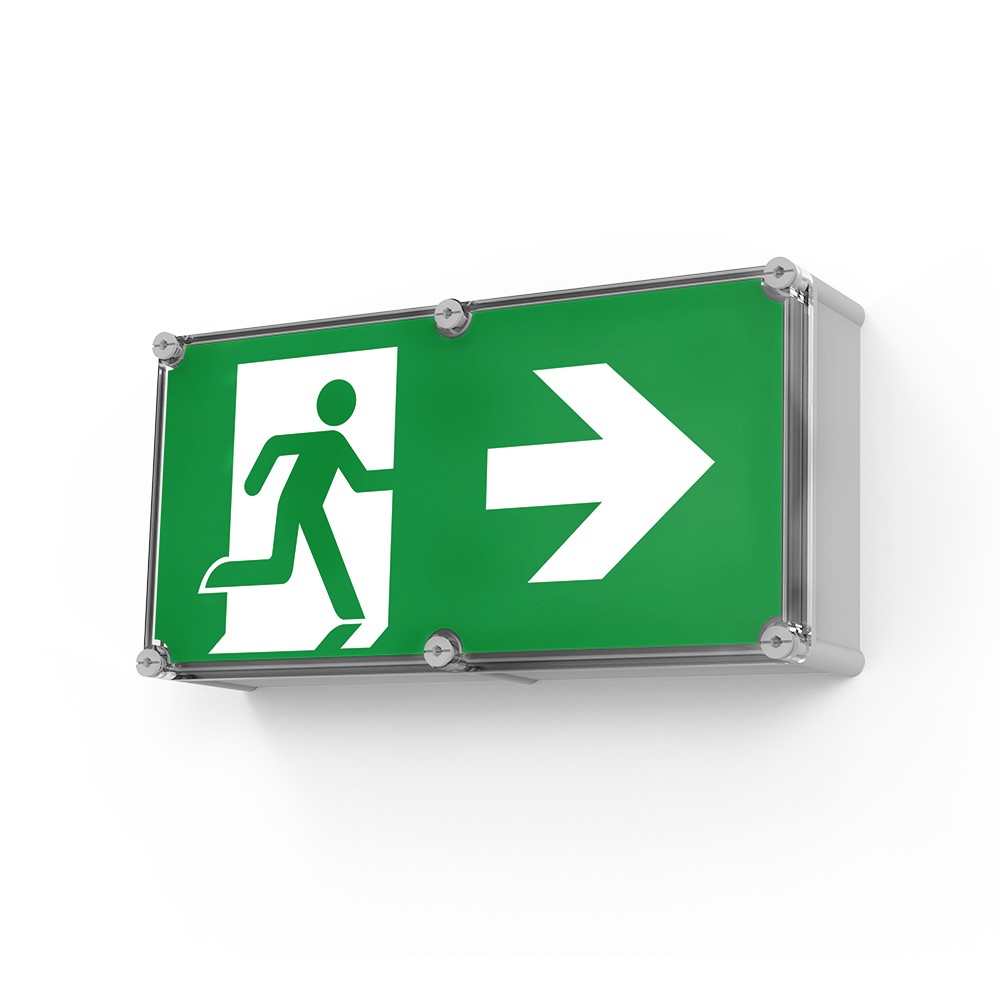

13105EV-BOXIT-IP65-40M-PRO-DABoxit Pro IP65 Wallmount Exit Light - 40M
