Slimfire Core

Core Low Profile Emergency Luminaire

  • Compact design with IP44 front face
  • Non-maintained operation with D50 classification
  • Fully compliant (AS/NZS 2293)
  • Low energy consumption (avg. 0.5W)
  • Low profile design (<45mm) for installation into ceilings with low clearances
  • Long life electronics
  • 6 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
  • Self test (AS2293/ IEC62034)
SKU: Slimfire Core Category: Tags: , ,

Mechanical

IP RatingIP44 Front Face Only
IC RatingIC-4
IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments.
Fitting Colour

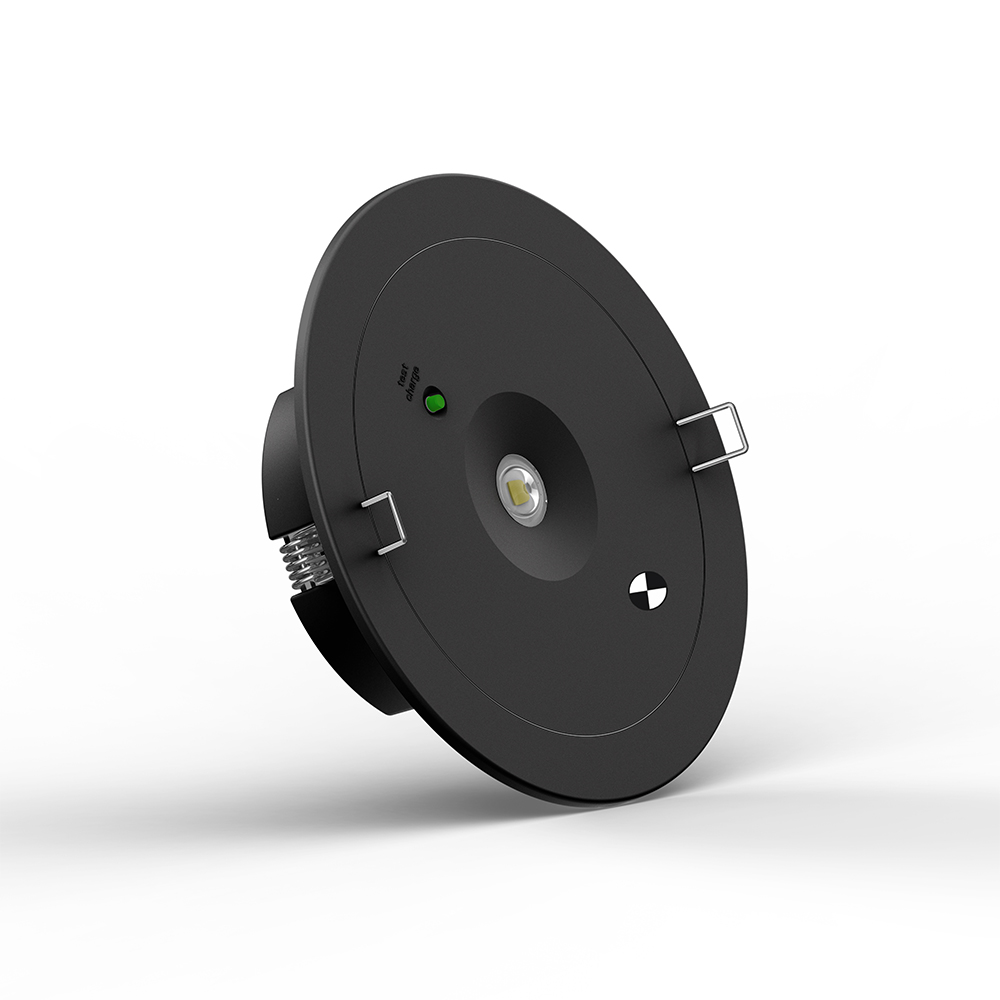

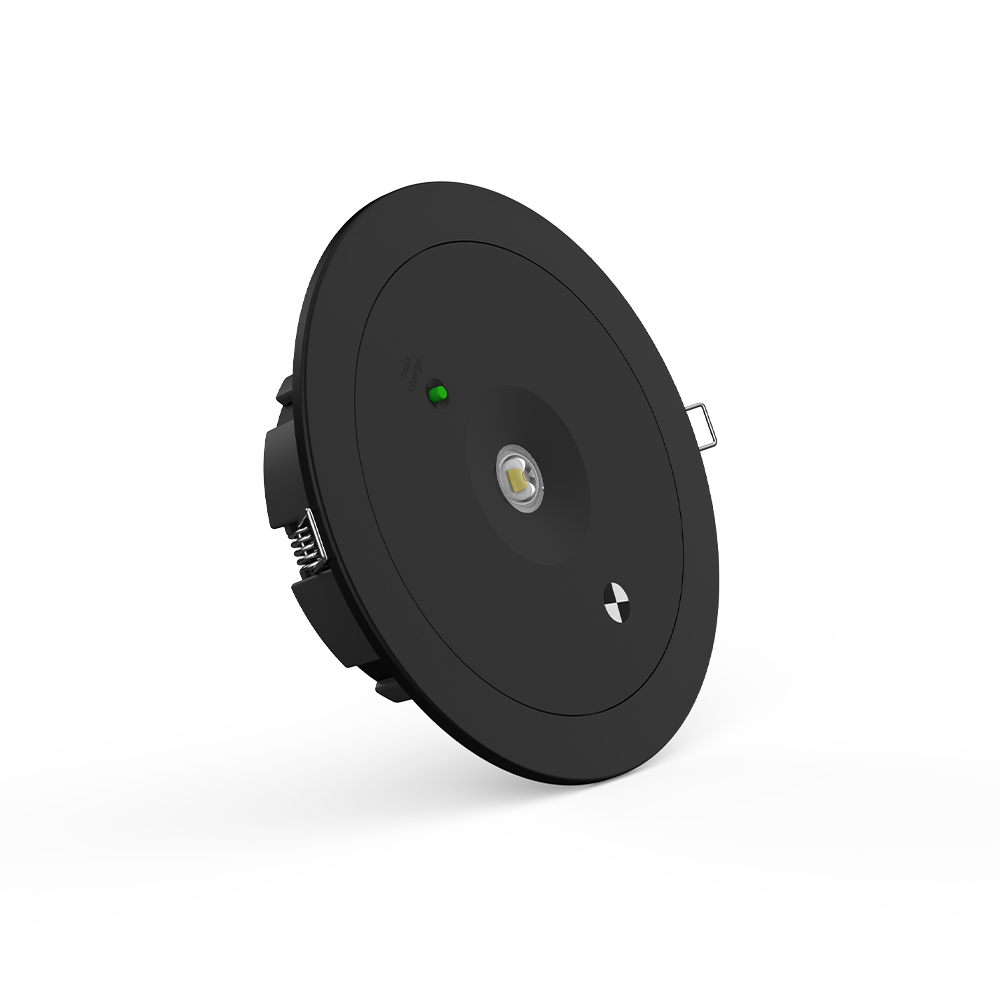

EV-SLIMFIRE-CORE-BBlack

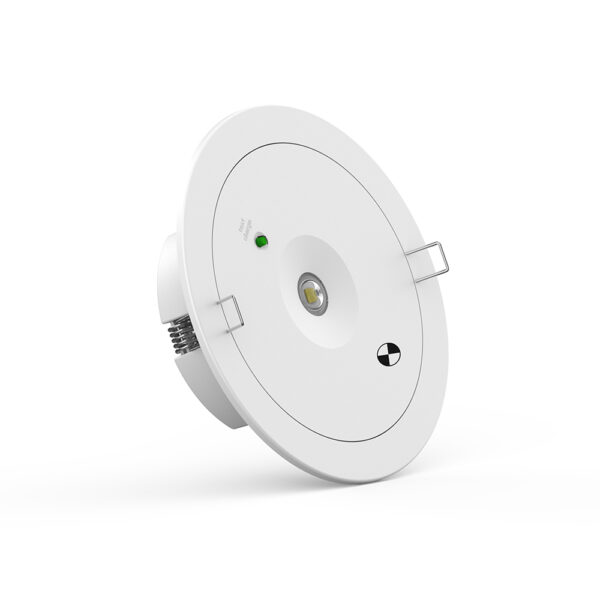

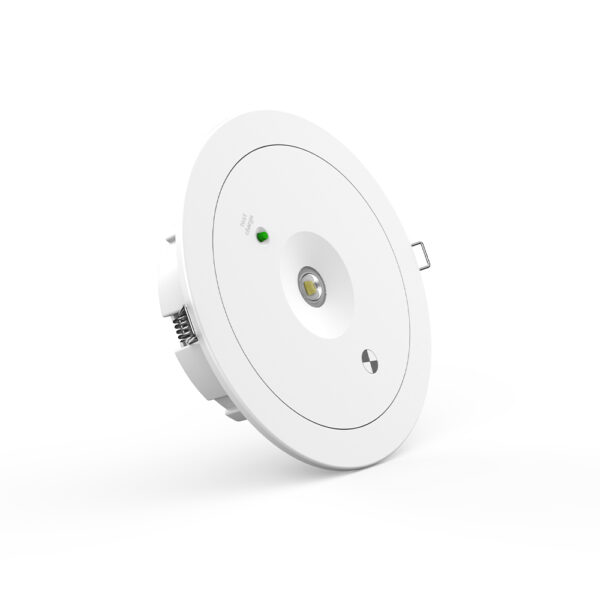

EV-SLIMFIRE-COREWhite
Body MaterialPolycarbonate
Installation TypeRecessed

Electrical

Working Temp Range0 to 40 °C
Input Frequency50 Hz
Maximum Wattage1 W
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Standby Power0.5 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.

Driver

Driver TypeFixed output
Driver IncludedYes
Integrated DriverYes
DimmableNo
Flex & Plug or Lead Length1200 mm
Wiring TypeNon rewireable Flex & Plug

Emergency (EM suffix)

Emergency ModeNon-Maintained
Emergency ClassificationC0:D50, C90:D50
Emergency Output Power2250 mW
Replacement Battery Code01308
Emergency Duration90 mins
Emergency Lumen Output264 lm

Compliance

Product Design Life6 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.

Warranty

Commercial Use Warranty5 RTB (Total 5 Years)
Product Height45 mm
Cutout93 (inner), 75-130 (outer) mm
Product Diameter110 mm
EV/SLIMFIRE/CORE
Order codeItem codeDescriptionAvailability
11563EV-SLIMFIRE-CORESlimfire - Low profile emergency Luminaire - D50 - w/safe test Live Date:2025-08-01
11564EV-SLIMFIRE-CORE-BSlimfire - Low profile emergency Luminaire - D50 - Black - w/safe test Live Date:2025-08-01

*Auto generated datasheet (beta)
