Efficiencies
| Total System Efficiency | |
|---|---|
| EV-UMBRA-CORE-II-DIFF-600 EV-UMBRA-CORE-II-DIFF-600-EM | 111 lm/W |
| EV-UMBRA-CORE-II-DIFF-1200 EV-UMBRA-CORE-II-DIFF-1200-EM EV-UMBRA-CORE-II-DIFF-1500 EV-UMBRA-CORE-II-DIFF-1500-EM | 124 lm/W |
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| Body Material | Powder coated steel |
|---|---|
| Diffuser Material | Polycarbonate |
| Fitting Colour | White |
| IK Rating | IK08 |
| Installation Type | Surface mount |
| IP Rating | IP20 |
Electrical
| Electrical Rating | Class I |
|---|---|
| Input Current | |
| EV-UMBRA-CORE-II-DIFF-600 EV-UMBRA-CORE-II-DIFF-600-EM | 0.08 A |
| EV-UMBRA-CORE-II-DIFF-1200 EV-UMBRA-CORE-II-DIFF-1200-EM | 0.16 A |
| EV-UMBRA-CORE-II-DIFF-1500 EV-UMBRA-CORE-II-DIFF-1500-EM | 0.2 A |
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Maximum Wattage | |
| EV-UMBRA-CORE-II-DIFF-600 EV-UMBRA-CORE-II-DIFF-600-EM | 18 W |
| EV-UMBRA-CORE-II-DIFF-1200 | 33 W |
| EV-UMBRA-CORE-II-DIFF-1200-EM | 36 W |
| EV-UMBRA-CORE-II-DIFF-1500 EV-UMBRA-CORE-II-DIFF-1500-EM | 50 W |
| Power Factor | 0.9 |
| Switch Type | Inline |
| Working Temp Range | 0 to 40 °C |
Lamp
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
|---|---|
| CCT Configuration | TRI-CCT |
| Colour Rendering Index (CRI) | >80 |
LED Lifetime
| LED Lifetime | >60000 hrs | ||||||
|---|---|---|---|---|---|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |||||||
| LED Lifetime Ratings (Failure rate & lumen depreciation) | |||||||
| |||||||
| This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717. | |||||||
| TM-21 Test Hours | 10000 hrs | ||||||
Colour temperature

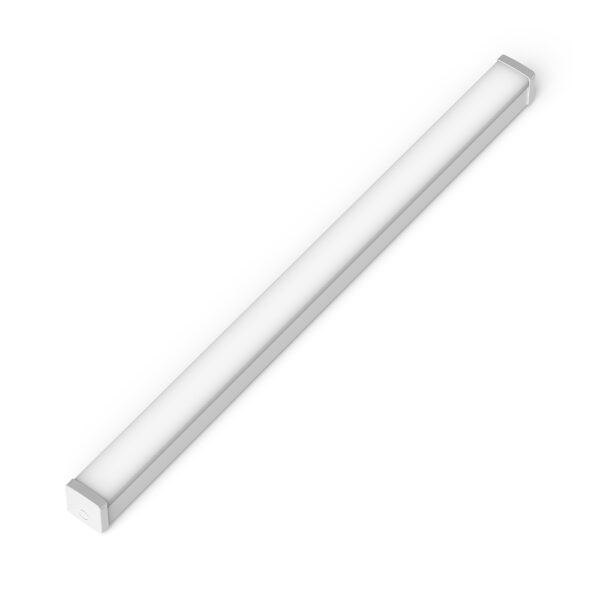

EV-UMBRA-CORE-II-DIFF-1200
| |||||||||||||||||||||
EV-UMBRA-CORE-II-DIFF-1200-EM
| |||||||||||||||||||||

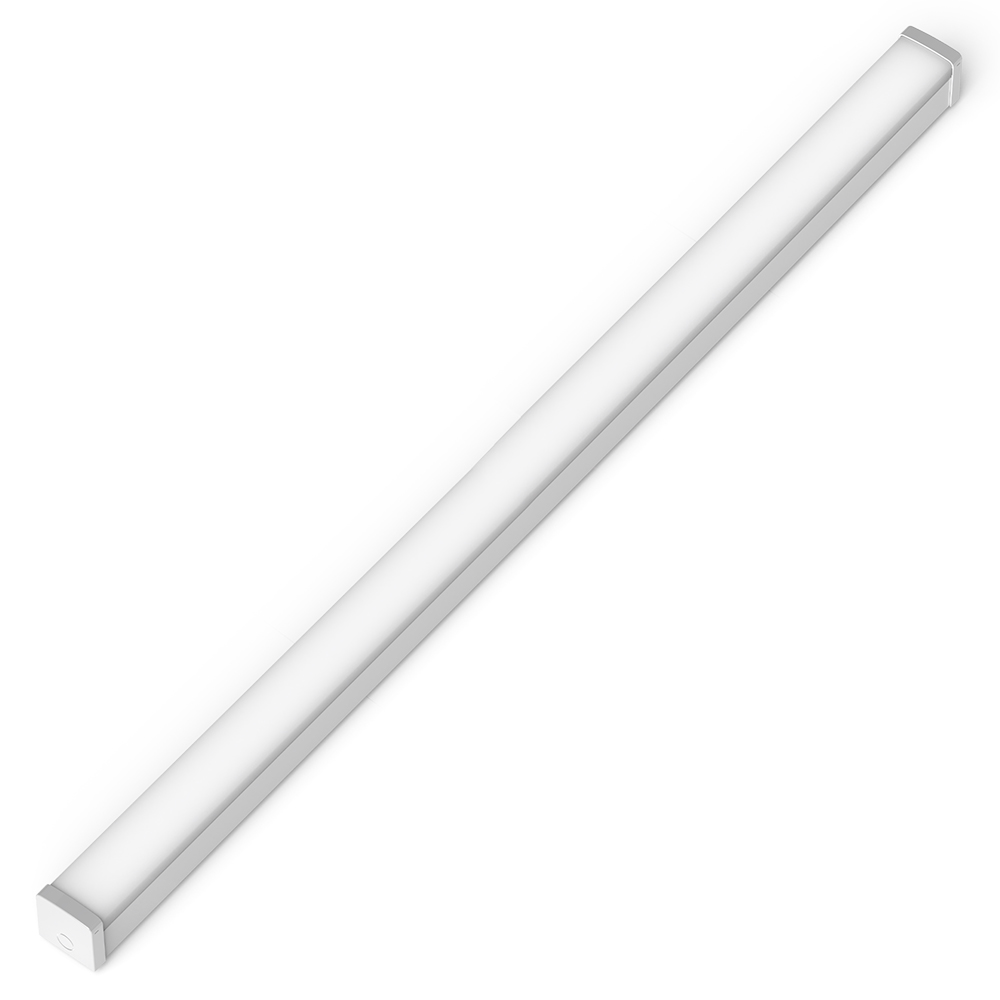

| EV-UMBRA-CORE-II-DIFF-1500 EV-UMBRA-CORE-II-DIFF-1500-EM
| |||||||||||||||||||||

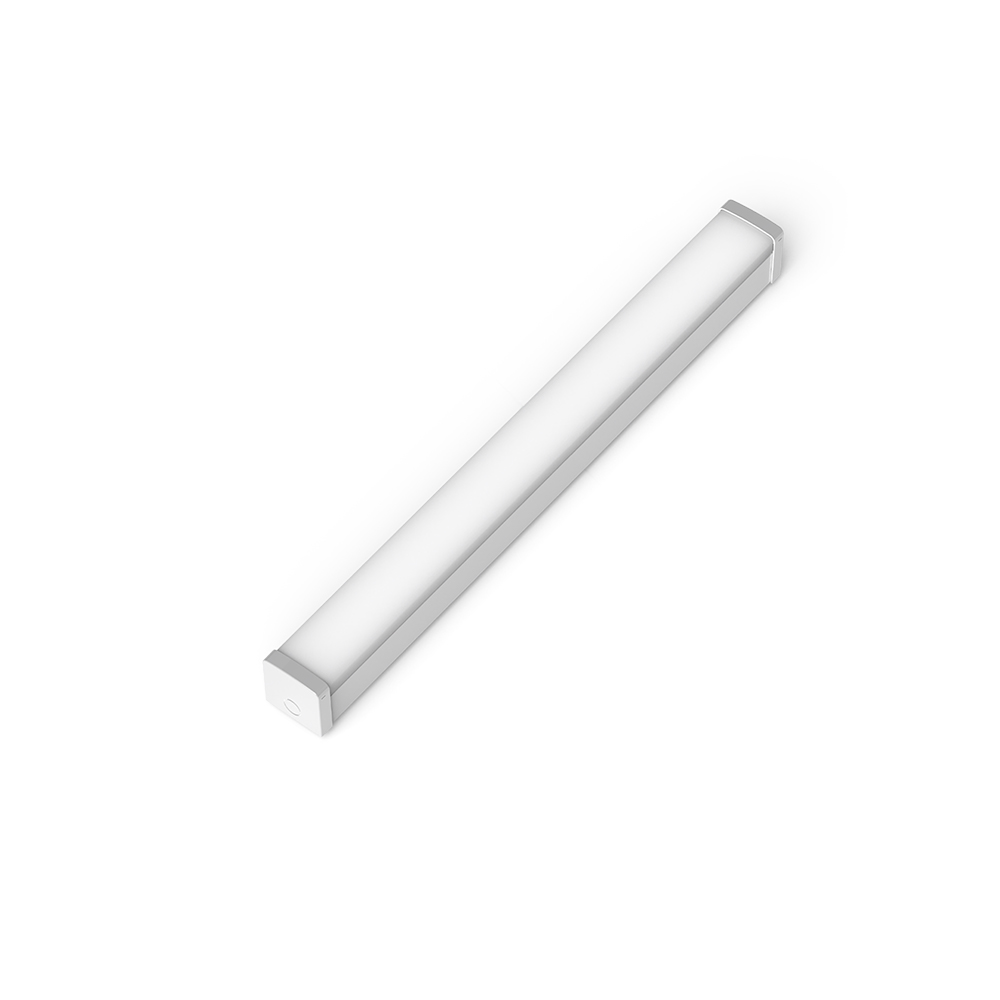

| EV-UMBRA-CORE-II-DIFF-600 EV-UMBRA-CORE-II-DIFF-600-EM
| |||||||||||||||||||||
Driver
| Dimmable | No |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Driver Mode | Constant Current |
| Driver Type | Fixed output |
| Wiring Type | |
| EV-UMBRA-CORE-II-DIFF-1200 EV-UMBRA-CORE-II-DIFF-1500 EV-UMBRA-CORE-II-DIFF-600 | Re-wireable terminal block (3 pin) |
| EV-UMBRA-CORE-II-DIFF-1200-EM EV-UMBRA-CORE-II-DIFF-1500-EM EV-UMBRA-CORE-II-DIFF-600-EM | Re-wireable terminal block (4 pin) |
| PSTLM | 0.1 |
| Short Term Light Modulation (PstLM): The requirement is that PstLM should be less than or equal to 1.0. This metric measures the short-term flicker severity and ensures that flicker is not perceptible or is at a level that does not cause discomfort or health issues. | |
| SVM | 0.4 |
| Stroboscopic Visibility Measure (SVM): The requirement for SVM is that it should be less than or equal to 0.4. The SVM metric assesses the visibility of the stroboscopic effect, which can make moving objects appear to be stationary or moving in discrete steps, thus ensuring that this effect is minimized in lighting environments to prevent visual discomfort and safety hazards. | |
Emergency (EM suffix)
| Replacement Battery Code | 01302 |
|---|---|
| Emergency Classification | C0:D50, C90:D32 |
| Emergency Duration | 90 mins |
| Emergency Lumen Output | 380 lm |
| Emergency Mode | Combined |
| Emergency Output Power | 3000 mW |
Energy Savings Scheme
| Ipart Approval | Yes |
|---|---|
| REES Approval | Yes |
Compliance
| Product Design Life | 6 years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Daily Use | 12 hrs |
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
| Standards |
|
Warranty
| Commercial Use Warranty | 5 RTB (Total 5 Years) |
|---|---|
| Warranty Operating Hours | 15000 hrs |
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
