Wireless DALI+ Constant Current Driver

$0.00

Driver Kit – Wireless DALI+ LED Driver

SKU: Acc-Wireless DALI+ Constant Current Driver Category:

Mechanical

Fitting Colour
DK1-0AABBHZX00065
DK1-0AABBHZX00070
DK1-0AABBHZX00075
DK1-0AABBHZX00080
DK1-0AABBHZX00085
DK1-0AABBHZX00090
DK1-0AABBHZX00095
DK1-0AABBHZX00100
DK1-0AABBHZX00105
DK1-0AABBHZX00110
DK1-0AABBHZX00115
Black
DK1-0AABBHZX00025
DK1-0AABBHZX00030
DK1-0AABBHZX00035
DK1-0AABBHZX00040
DK1-0AABBHZX00045
DK1-0AABBHZX00050
DK1-0AABBHZX00055
DK1-0AABBHZX00060
White
IC RatingDo not cover

Electrical

Electrical RatingClass II
Input Current
DK1-0AABBHZX00025
DK1-0AABBHZX00030
DK1-0AABBHZX00035
DK1-0AABBHZX00040
DK1-0AABBHZX00045
DK1-0AABBHZX00050
DK1-0AABBHZX00055
DK1-0AABBHZX00060
0.14 A
DK1-0AABBHZX00065
DK1-0AABBHZX00070
DK1-0AABBHZX00075
DK1-0AABBHZX00080
0.18 A
DK1-0AABBHZX00085
DK1-0AABBHZX00090
DK1-0AABBHZX00095
DK1-0AABBHZX00100
DK1-0AABBHZX00105
DK1-0AABBHZX00110
DK1-0AABBHZX00115
0.25 A
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Power Factor0.95
Standby Power0.5 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Surge Protection L-N2kV
Working Temp Range
DK1-0AABBHZX00065
DK1-0AABBHZX00070
DK1-0AABBHZX00075
DK1-0AABBHZX00080
DK1-0AABBHZX00085
DK1-0AABBHZX00090
DK1-0AABBHZX00095
DK1-0AABBHZX00100
DK1-0AABBHZX00105
DK1-0AABBHZX00110
DK1-0AABBHZX00115
-20 to 45 °C
DK1-0AABBHZX00025
DK1-0AABBHZX00030
DK1-0AABBHZX00035
DK1-0AABBHZX00040
DK1-0AABBHZX00045
DK1-0AABBHZX00050
DK1-0AABBHZX00055
DK1-0AABBHZX00060
-20 to 50 °C

Driver

DimmableYes
Driver Code
DK1-0AABBHZX00025
DK1-0AABBHZX00030
DK1-0AABBHZX00035
DK1-0AABBHZX00040
DK1-0AABBHZX00045
DK1-0AABBHZX00050
DK1-0AABBHZX00055
DK1-0AABBHZX00060

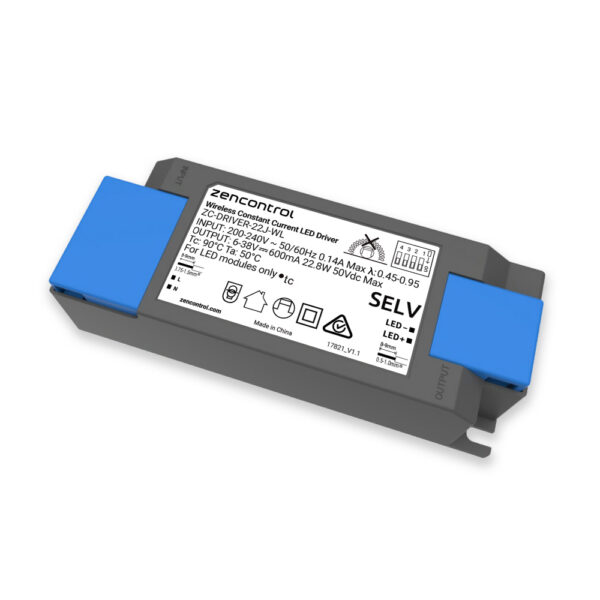

ZC-DRIVER-22J-WL
DK1-0AABBHZX00065
DK1-0AABBHZX00070
DK1-0AABBHZX00075
DK1-0AABBHZX00080
DK1-0AABBHZX00085
DK1-0AABBHZX00090
DK1-0AABBHZX00095
DK1-0AABBHZX00100
DK1-0AABBHZX00105

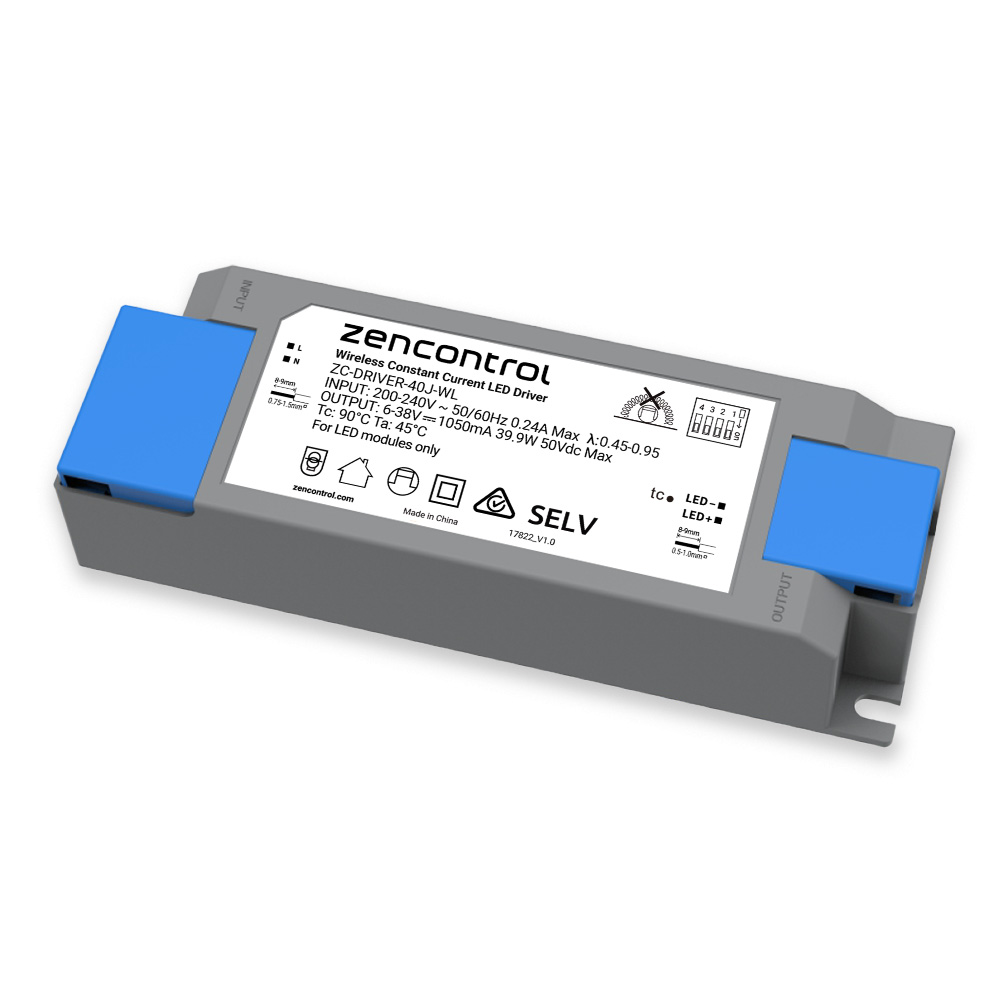

ZC-DRIVER-40J-WL
Driver ModeConstant Current
Driver TypeWireless (IEC62386-104) with DT6
Flex & Plug or Lead Length1200 mm
PSTLM
DK1-0AABBHZX00025
DK1-0AABBHZX00030
DK1-0AABBHZX00035
DK1-0AABBHZX00040
DK1-0AABBHZX00045
DK1-0AABBHZX00050
DK1-0AABBHZX00055
DK1-0AABBHZX00060
0.001
DK1-0AABBHZX00065
DK1-0AABBHZX00070
DK1-0AABBHZX00075
DK1-0AABBHZX00080
DK1-0AABBHZX00085
DK1-0AABBHZX00090
DK1-0AABBHZX00095
DK1-0AABBHZX00100
DK1-0AABBHZX00105
DK1-0AABBHZX00110
DK1-0AABBHZX00115
0.02
SVM
DK1-0AABBHZX00065
DK1-0AABBHZX00070
DK1-0AABBHZX00075
DK1-0AABBHZX00080
DK1-0AABBHZX00085
DK1-0AABBHZX00090
DK1-0AABBHZX00095
DK1-0AABBHZX00100
DK1-0AABBHZX00105
DK1-0AABBHZX00110
DK1-0AABBHZX00115
0.003
DK1-0AABBHZX00025
DK1-0AABBHZX00030
DK1-0AABBHZX00035
DK1-0AABBHZX00040
DK1-0AABBHZX00045
DK1-0AABBHZX00050
DK1-0AABBHZX00055
DK1-0AABBHZX00060
0.004
Wiring TypeRe-wireable Flex & Plug (2 pin)
Driver Power
DK1-0AABBHZX00025
DK1-0AABBHZX00030
DK1-0AABBHZX00035
DK1-0AABBHZX00040
DK1-0AABBHZX00045
DK1-0AABBHZX00050
DK1-0AABBHZX00055
DK1-0AABBHZX00060
22.8 W
DK1-0AABBHZX00065
DK1-0AABBHZX00070
DK1-0AABBHZX00075
DK1-0AABBHZX00080
DK1-0AABBHZX00085
DK1-0AABBHZX00090
DK1-0AABBHZX00095
DK1-0AABBHZX00100
DK1-0AABBHZX00105
DK1-0AABBHZX00110
DK1-0AABBHZX00115
39.9 W
Driver Current
DK1-0AABBHZX00025250 mA
DK1-0AABBHZX00030300 mA
DK1-0AABBHZX00035350 mA
DK1-0AABBHZX00040400 mA
DK1-0AABBHZX00045450 mA
DK1-0AABBHZX00050500 mA
DK1-0AABBHZX00055550 mA
DK1-0AABBHZX00060600 mA
DK1-0AABBHZX00065650 mA
DK1-0AABBHZX00070700 mA
DK1-0AABBHZX00075750 mA
DK1-0AABBHZX00080800 mA
DK1-0AABBHZX00085850 mA
DK1-0AABBHZX00090900 mA
DK1-0AABBHZX00095950 mA
DK1-0AABBHZX001001000 mA
DK1-0AABBHZX001051050 mA
DK1-0AABBHZX001101100 mA
DK1-0AABBHZX001151150 mA
Output Voltage Range6-38 V

Compliance

Standards
  • AS/NZS 61347.1
  • AS 61347.2.13
  • AS CISPR 15
  • IEC 62386-104
  • IEC 62386-207
Ordering codeItem codeDescriptionAvailability
14927DK1-0AABBHZX00025Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 250mA
14928DK1-0AABBHZX00030Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 300mA
14929DK1-0AABBHZX00035Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 350mA
14930DK1-0AABBHZX00040Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 400mA
14931DK1-0AABBHZX00045Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 450mA
14932DK1-0AABBHZX00050Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 500mA
14933DK1-0AABBHZX00055Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 550mA
14934DK1-0AABBHZX00060Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 600mA
14935DK1-0AABBHZX00065Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 650mA
14936DK1-0AABBHZX00070Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 700mA
14937DK1-0AABBHZX00075Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 750mA
14938DK1-0AABBHZX00080Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 800mA
14939DK1-0AABBHZX00085Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 850mA
14982DK1-0AABBHZX00090Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 900mA
14940DK1-0AABBHZX00095Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 950mA
14941DK1-0AABBHZX00100Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 1000mA
14942DK1-0AABBHZX00105Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 1050mA
14943DK1-0AABBHZX00110Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 1100mA
14944DK1-0AABBHZX00115Driver Kit - Wireless DALI+ LED driver with 1.2m 2 core flex and plug - set to 1150mA

*Auto generated datasheet (beta)
